Basic Info.
Model NO.
EVP-16A12
Brand Name
Kangni
After-sales Service
24 Months
Type
Slow EV Charging Station
Certification
CE, TUV, RoHS
Warranty
24 Months
Transport Package
1 Piece
Specification
25*25*150
Trademark
Kangni
Origin
Jiangsu China
HS Code
8504409999
Production Capacity
50000/Month

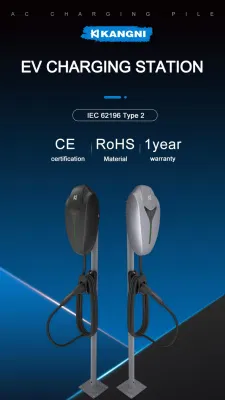

Product Description

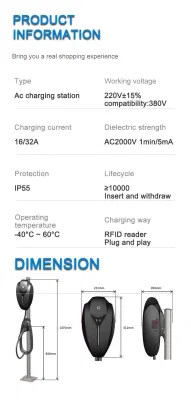

| Specifications | Product Name | EV Charger stations |
| Plug for EV | IEC62196 | |
| Plug for Wall Socket | UK Plug, Schuko plug, Australian plug, etc. | |
| Electric Parameters | Rated Voltage | 220~250V AC |
| Rated Current | 32A,1 phase | |
| Frequency | 50/60Hz | |
| Insulation Resistance | >1000MΩ | |
| Terminal Temperature Rise | <50K | |
| Withstand Voltage | 2000V | |
| Contact Resistance | 0.5mΩ | |
| Mechanical Performance | Mechanical Life | >10000 times no-load plug in/out. |
| Coupled Insertion Force | 45N~100N | |
| Withstandable Impact | Dropping from a 1m-height and running-over by a 2T vehicle. | |
| Material | Enclosure | Thermoplastic, flame retardant grade UL94 V-0 |
| Cable Material | TPE/ TPU | |
| Terminals/Pins | Copper alloy, silver plating | |
| Safety and Warranty | Ingress Protection | IP54 |
| Certification | CE/ TUV/ UL | |
| Certification Standard | IEC 62196-1-2016/ IEC 62196-2-2016, | |
| SAE J1772-2017 | ||
| Charging Protection | Over current, residual current, short circuit, surge, over/under | |
| voltage, over/under frequency, and over/under temperature | ||
| protection; | ||
| Warranty | 1 years | |
| Environment | Work Temperature | -30ºC~+50ºC |
| Work Humidity | 5%~95% | |
| Work Altitude | <2000m |
Q1. What is your terms of packing?
A: Generally, we pack our goods in brown cartons. If you have legally registered patent we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of delivery?
A: FOB, CFR, CIF, DDU.
Q3. How about your delivery time?
A: Generally, it will take 5 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
