Basic Info.
Payment
Cash Top-up or APP Online Payment
Type
Fast EV Charging Station
Certification
CE, ISO, RoHS
Warranty
12 Months
Transport Package
Wooden Box
Specification
900*880*1950mm
Trademark
SGC
Origin
Yangzhou, Jiangsu, China
HS Code
8504409999
Production Capacity
2000 Pieces/Year
Product Description
Product description

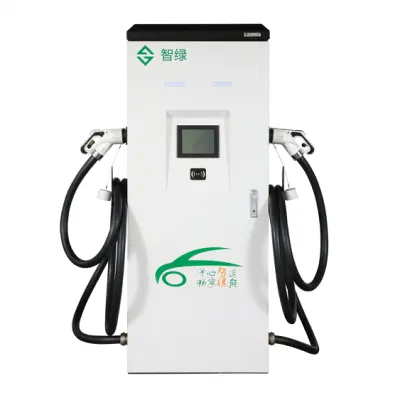

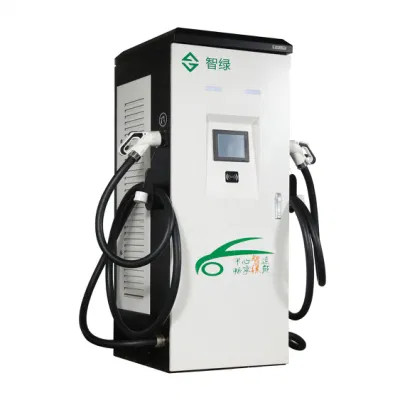

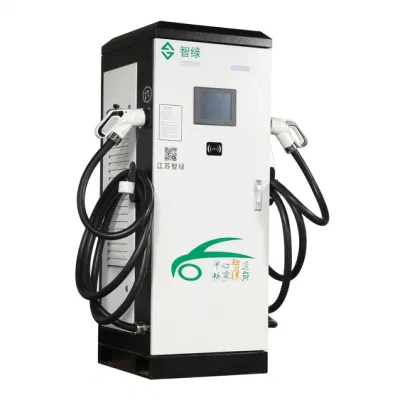

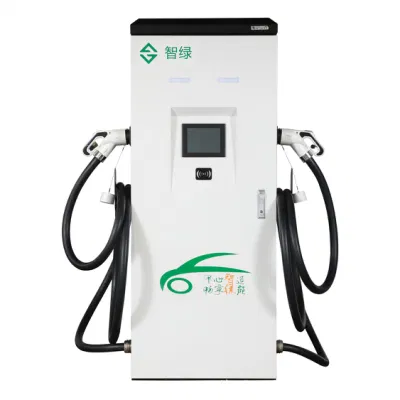

This product is charged by DC, charging speed is fast (according to different battery capacity and BMS system);
Support remote monitoring and maintenance;
The built-in touch screen is easy to operate;
User authentication is convenient, and it supports multiple methods such as scan code/swipe card identification.
The product is safe and reliable, which has high temperature monitoring function, and automatically cut off in abnormal situation , and supports electrical, software, hardware multi-redundant intelligent security protection;
The environmental adaptability is strong, and the extreme cold and heat condition can stabilize the work.
Quick and easy installation;
Intelligent operation, saving manpower;
Small work noise.
Warranty: 1 Year;
Supply Ability: 2000 Unit/Units per Year.
Product Parameters
Company profile SGC focus on the development and manufacturing of EV charger and charging operating platform with wide range of products, which covers AC & DC chargers from 7KW to 300KW, etc. SGC has core development capability of intelligent control, the internet of things and so on.
SGC has been specialized in experience accumulation of technical development of EV charging device and charging operation. The core strength of R&D department is composed of a group of high technical personnel with more than 10 years of practical design working experience in the field of power battery charging, the technical staff accounting for over 40% of total employees of the company. Part of core technical staff have participated in discussion and formulation of relevant charging national standard, leading the product development working of Shanghai Expo charging station, Guangzhou Asian Games charging station, Shenzhen Universiade charging station.
With the excellent quality of products and excellent service, SGC has sold EV charger to many regions, and operate a lot of mature charging stations. SGC is also a strategic partner of many well-known car companies such as BYD, Yutong, JAC, King-Long etc.
A: Generally, we pack our goods in wooden cases.
If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your term of payment?
A: T/T 30% as deposit, and 70% before delivery.
We'll show you the photos of the products and packages before you pay the balance.
Q3. How about your delivery time?
A: Generally, it will take 7 to 25 days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
We can build the molds and fixtures.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q7: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit;
A: 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
This product is charged by DC, charging speed is fast (according to different battery capacity and BMS system);
Support remote monitoring and maintenance;
The built-in touch screen is easy to operate;
User authentication is convenient, and it supports multiple methods such as scan code/swipe card identification.
The product is safe and reliable, which has high temperature monitoring function, and automatically cut off in abnormal situation , and supports electrical, software, hardware multi-redundant intelligent security protection;
The environmental adaptability is strong, and the extreme cold and heat condition can stabilize the work.
Quick and easy installation;
Intelligent operation, saving manpower;
Small work noise.
Warranty: 1 Year;
Supply Ability: 2000 Unit/Units per Year.
Product Parameters
| Product model | Power range | 240kW | ||||||||
| Power input | Input rating | AC400±15% 50-60Hz | ||||||||
| Power output | Phase/Wire | 3-phase/LI, L2, L3, N, PE | ||||||||
| Output voltage | 200-750Vdc | |||||||||
| Output current | 0-400A | |||||||||
| Current THD | ≤5% | |||||||||
| Power Output | Efficiency | >95% | ||||||||
| Power Factor | >0.98 | |||||||||
| Protection | Protection | Over current, Under voltage, Over voltage, Residual current, Surge protection, Short circuit, Over temperature, Ground fault | ||||||||
| User Interface & Control | Display | 8" TFT-LCD touch screen | ||||||||
| Support language | English, Chinese | |||||||||
| Push buttons | Emergency stop button | |||||||||
| Charge options | Charge options to be provided upon request, charge by duration, charge by energy | |||||||||
| Charging interface | GB/T | |||||||||
| User Authentication | ISO14443 Type A/B RFID for user authentication | |||||||||
| Communication | Network interface | Ethernet(standard); Wi-Fi, 4G( optional) | ||||||||
| Environmental | Operating Temperature | -30ºC to +55ºC | ||||||||
| Storage Temperature | -40ºC to +70ºC | |||||||||
| Humidity | <95% relative humidity, non-condensing | |||||||||
| Altitude | ≤6000 feet(2000m) | |||||||||
| Mechanical | Ingress Protection | IP54 | ||||||||
| Cooling | Forced air | |||||||||
| Charging Cable Length | 6m (optional) | |||||||||
| Dimension (H*L*W) | 890*865*1910mm | |||||||||
