Basic Info.
Model NO.
TK-600
Nominal Voltage
12V
Charger Style
Intelligent Charger
Compatible Battery Type
12-Volt
Size
190(L)*125(W)*95(H)mm
Certification
PSE, RoHS, CE, FCC
Socket Type
EU,UK,Au,Us for Your Choose
Recyclable
Recyclable
Product Name
12V10A 24V5a Car Battery Charger
Charger Name
Full Intelligent Battery Charger
Use for
for Car Motorcycle Boat Truck Marine
Brand
E-Fast
Model No.
Tk-600
Output Current
DC 12V10A 24V5a
Output Voltage
DC 13.8-27.6V
Function
Electric, Car Charger, Fast Charger, Pulse Repair
Application
12V/24V 2ah-150ah Lead Acid Battery
Output Power
140W
Input Voltage and Current
100-240V AC
Material
PC Fireproof Material, ABS
Net Weight
Approx 820g
OEM Service
Acceptable
Advantage
Intelligent Repair
Transport Package
Standard Export Carton
Specification
450(L)*360(W)*450(H)mm
Trademark
E-Fast
Origin
China
HS Code
8504409999
Production Capacity
3000PCS/Day
Packaging & Delivery
Package Size
25.00cm * 13.00cm * 12.00cm
Package Gross Weight
1.000kg
Product Description

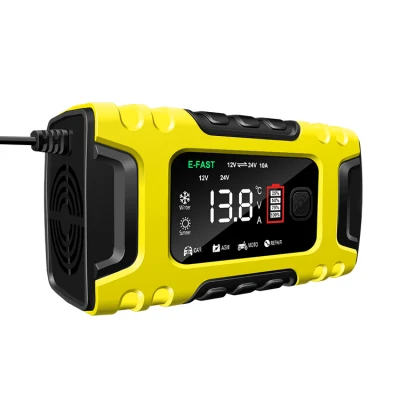

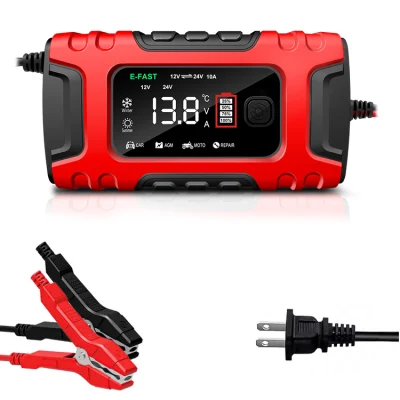

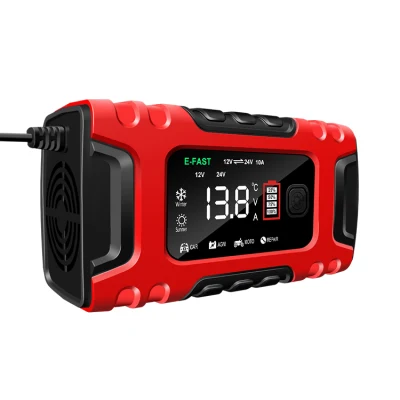

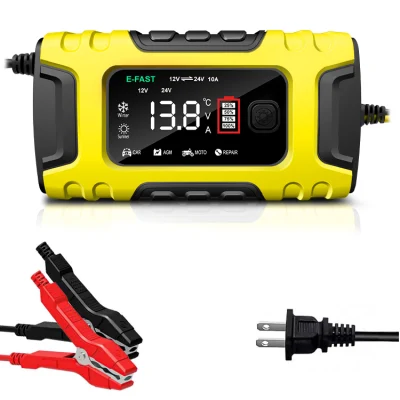

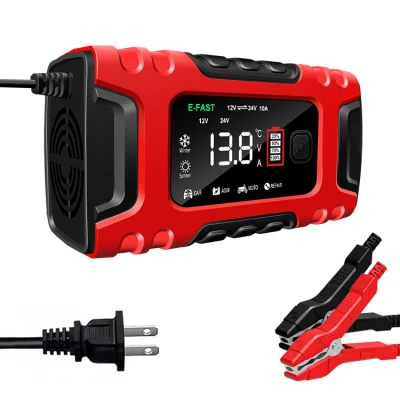

| Product Name | E-Fast 12V 10A 24V 5A 7-stage lead acid AGM Motorcycle Car Smart LCD Display Automatic Charger |
| Charger model | TK-600 |
| AC input | 100-240V 50/60Hz |
| Type | FULL INTELLIGENT BATTERY CHARGER |
| Brand | E-Fast |
| Output current | DC 12V10A 24V5A |
| Output voltage | DC13.8-27.6V |
| Input voltage: | AC-110 ~ 240V50/60HZ |
| Net weight | Approx 820g |
| Dimensions | 190*125*95mm |
| Application | 12V/24V 2AH-100AH lead-acid batteries (lithium batteries are forbidden to charge) |
E-Fast 12V 10A 24V 5A 7-stage lead acid AGM Motorcycle Car Smart LCD Display Automatic Charger
1.10+ Years Experience,Quick Respond, Fast Shipping 2.Factory directly, Massive Stock, lead time 0-3 days
3. We can send free samples for customers to check the effect and quality.
4. Provide good sale service like tracking number, mass production pictures.
5. Quality Assurance,good price,stable supply.
6. One-stop purchasing service
2. Clip the output crocodile clips at both ends of the battery, red positive and black negative
3. Insert the charger AC input line into the socket, and then turn on the socket switch
4. Select the mode and select the corresponding charging mode, such as "Car Mode" for car battery, "Motorcycle Mode" for motorcycle battery, "Start-Stop Mode" for starting and stopping power bottle, and then charge.
5. When the charger displays "FUL", it means that the charging mode has ended. Disconnect the AC input. After 10S, observe the battery capacity status (the panel circularly displays the voltage and the battery power). After confirming that it is full,take off the crocodile clip.
Safety precautions
2. Insert the charger AC input line into the socket, and then turn on the socket switch
3. Press the key to switch to repair mode, and then repair it
4. It is recommended to repair motorcycle batteries for about 5 hours and car batteries for about 8 hours! The charger is repaired by default for about 20 hours at a time, and the arrival time will show "FUL" to indicate that the repair mode has ended! Pay attention to the battery temperature when repairing, and stop repairing if the battery overheats!
5. After the repair, disconnect the AC input, and switch the mode key to enter the charging mode at this time to see if it can be charged normally. If it can't be charged after 1-2 cycles of repair, please replace the battery.
3. We can send free samples for customers to check the effect and quality.
4. Provide good sale service like tracking number, mass production pictures.
5. Quality Assurance,good price,stable supply.
6. One-stop purchasing service
Charging
1. Check whether your battery parameters match the charger;2. Clip the output crocodile clips at both ends of the battery, red positive and black negative
3. Insert the charger AC input line into the socket, and then turn on the socket switch
4. Select the mode and select the corresponding charging mode, such as "Car Mode" for car battery, "Motorcycle Mode" for motorcycle battery, "Start-Stop Mode" for starting and stopping power bottle, and then charge.
5. When the charger displays "FUL", it means that the charging mode has ended. Disconnect the AC input. After 10S, observe the battery capacity status (the panel circularly displays the voltage and the battery power). After confirming that it is full,take off the crocodile clip.
Safety precautions
1. Do not charge lithium batteries! It is strictly forbidden to charge scrapped, non-lead-acid batteries or non-voltage batteries! Do not charge non-rechargeable batteries! Do not approach open flames when charging! It is strictly forbidden to disassemble without permission when there is high pressure in the machine
2 Before charging, observe whether the battery is damaged and whether there are abnormal phenomena such as liquid overflow around the battery. If there are abnormal phenomena, please charge carefully;
3. To charge the vehicle or equipment, please remove the battery and charge it in a safe space without flammable items around;
4. When charging, the surface of the battery should not be covered with objects. When charging the battery, it should be erected and placed directly, and it should not be skewed to avoid the surrounding high temperature and high humidity environment;
5. When the charging time exceeds 12 hours and is unattended, the power supply should be cut off. It is strictly forbidden to charge for a long time!
6. Used indoors, beware of rain. During charging, the charger is strictly prohibited from being covered and must be placed in a well-ventilated place. It is strictly forbidden to put it in the car or charge it. Beware of flames, sparks and explosive gases to avoid fire;
7. If the power cord is damaged, in order to avoid danger, it must be replaced by the manufacturer or its maintenance department or similar professionals;
8. Disconnect the power supply before connecting or disconnecting the battery charger with the battery.
For your legitimate rights and interests, please abide by the above terms and conditions! Our company promises a warranty period of 12 months.
2 Before charging, observe whether the battery is damaged and whether there are abnormal phenomena such as liquid overflow around the battery. If there are abnormal phenomena, please charge carefully;
3. To charge the vehicle or equipment, please remove the battery and charge it in a safe space without flammable items around;
4. When charging, the surface of the battery should not be covered with objects. When charging the battery, it should be erected and placed directly, and it should not be skewed to avoid the surrounding high temperature and high humidity environment;
5. When the charging time exceeds 12 hours and is unattended, the power supply should be cut off. It is strictly forbidden to charge for a long time!
6. Used indoors, beware of rain. During charging, the charger is strictly prohibited from being covered and must be placed in a well-ventilated place. It is strictly forbidden to put it in the car or charge it. Beware of flames, sparks and explosive gases to avoid fire;
7. If the power cord is damaged, in order to avoid danger, it must be replaced by the manufacturer or its maintenance department or similar professionals;
8. Disconnect the power supply before connecting or disconnecting the battery charger with the battery.
For your legitimate rights and interests, please abide by the above terms and conditions! Our company promises a warranty period of 12 months.
Repair
1. Clip the output crocodile clips at both ends of the battery, red positive and black negative2. Insert the charger AC input line into the socket, and then turn on the socket switch
3. Press the key to switch to repair mode, and then repair it
4. It is recommended to repair motorcycle batteries for about 5 hours and car batteries for about 8 hours! The charger is repaired by default for about 20 hours at a time, and the arrival time will show "FUL" to indicate that the repair mode has ended! Pay attention to the battery temperature when repairing, and stop repairing if the battery overheats!
5. After the repair, disconnect the AC input, and switch the mode key to enter the charging mode at this time to see if it can be charged normally. If it can't be charged after 1-2 cycles of repair, please replace the battery.
