Basic Info.
Model NO.
18650
Specification
18650
Trademark
HCC
Origin
China
HS Code
8507600090
Production Capacity
10000000
Product Description

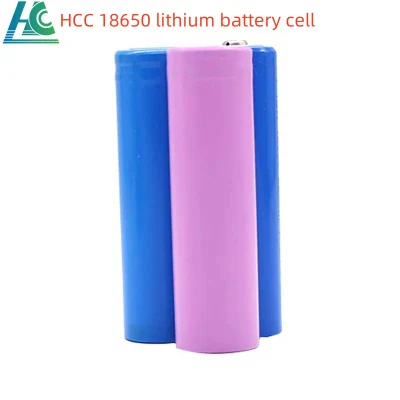

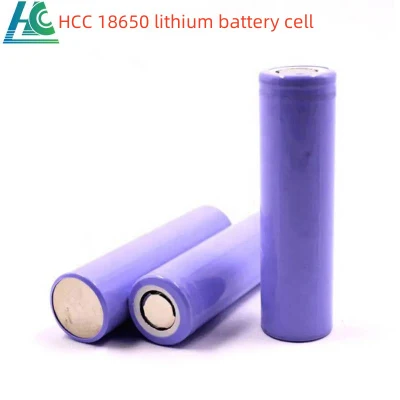

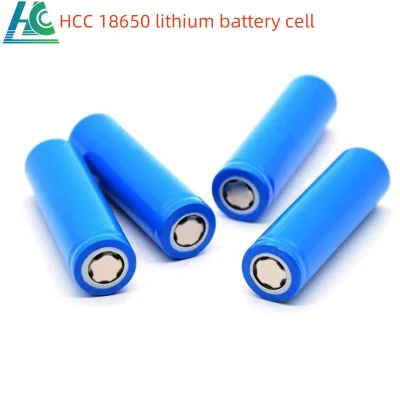

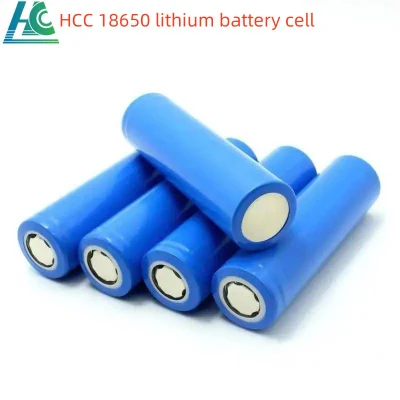

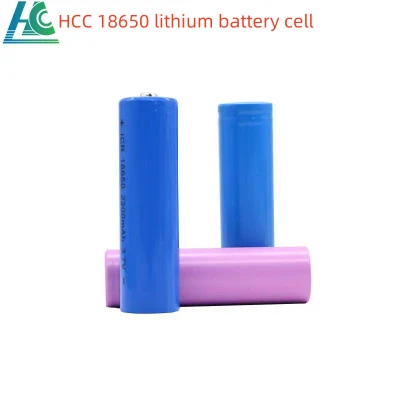

| Product Name: | 18650 Li-ion battery |
| Voltage: | 3.2V 3.6V 3.7V |
| Capacity: | 1500mAh 1600mAh 1800mAh 2000mAh 2200mAh 2500mAh 2600mAh 3000mAh 3200mAh 3350mAh |
| Life of battery: | Above 500 times |
| Charging temperature(ºC): | 0ºC~45ºC;32ºF~113ºF |
| Discharging temperature(ºC): | -20ºC~60ºC;-4ºF~149ºF |
| Storage temperature(ºC): | -20ºC~45ºC;-4ºF~113ºF |
| Over charger protection voltage(V): | 4.2V±0.05V |
| Over discharge protection voltage(V): | 3.0V±0.25V |
| Protection Temperature(ºC): | 70ºC±5ºC |
| Warranty: | 12 month (free) |
| Requirements: | With label, plug,connector, OEM accept. |
| Specification: | High capacity, high discharge long work,life long,save and environmental protection. |
| Application: Wifi device,communication device,medical equipment,instrument,led lamps, transportation sign,portable family appliance, electronical tools and toys etc. | |
| HCC BIS Certificate List | ||||
| Model | Capacity | Rate | Mark | Material |
| 18650CR | 1800mAh | 1C | With BIS | NCM |
| 18650CR | 2000mAh | 1C | With BIS | NCM |
| 18650CR | 2200mAh | 1C | With BIS | NCM |
| 18650CR | 2500mAh | 1C | With BIS | NCM |
| 18650CR | 2000mAh | 3C | With BIS | NCM |
| 18650CR | 2000mAh | 5C | With BIS | NCM |
| 18650CR | 2500mAh | 3C | With BIS | NCM |
| 18650CR | 2500mAh | 5C | With BIS | NCM |
| 703040PL | 650mAh | 1C | With BIS | LiFePO4 |
| 604466AR | 2000mAh | 1C | With BIS | NCM |
| HCC List | |||||||||
| Model | Capacity (mah) | Votage (V) | Current (mA) | Discharging Curent(mA) | Max Charging Current(mA) | Max Discharging Current(mA) | Max Charging Voltage(V) | Cut off Voltage(V) | Material |
| 104670 | 4000 | 3.7 | 800 | 800 | 4000 | 4000 | 4.25 | 3.0 | NCM |
| 112772 | 2200 | 3.7 | 440 | 440 | 2200 | 2200 | 4.25 | 3.0 | NCM |
| 115282 | 6000 | 3.7 | 1200 | 1200 | 6000 | 6000 | 4.25 | 3.0 | NCM |
| 343996 | 1900 | 3.8 | 380 | 380 | 1900 | 1900 | 4.35 | 3.0 | NCM |
| 373491 | 1700 | 3.8 | 340 | 340 | 1700 | 1700 | 4.35 | 3.0 | NCM |
| 523050 | 1000 | 3.7 | 200 | 200 | 1000 | 1000 | 4.25 | 3.0 | NCM |
| 542232 | 350 | 3.7 | 70 | 70 | 350 | 350 | 4.25 | 3.0 | NCM |
| 603048 | 850 | 3.7 | 170 | 170 | 850 | 850 | 4.25 | 3.0 | NCM |
| 654677 | 2500 | 3.7 | 500 | 500 | 2500 | 2500 | 4.25 | 3.0 | NCM |
| 803450 | 1350 | 3.7 | 270 | 270 | 1350 | 1350 | 4.25 | 3.0 | NCM |
| 804985 | 5000 | 3.8 | 1000 | 1000 | 5000 | 5000 | 4.35 | 3.0 | NCM |
| 954568 | 3500 | 3.7 | 700 | 700 | 3600 | 3500 | 4.25 | 3.0 | NCM |
| 964567 | 3000 | 3.7 | 600 | 600 | 3000 | 3000 | 4.25 | 3.0 | NCM |
| 2761118 | 2450 | 3.7 | 490 | 490 | 2450 | 2450 | 4.25 | 3.0 | NCM |
| 2870103 | 2500 | 3.7 | 500 | 500 | 2500 | 2500 | 4.25 | 3.0 | NCM |
| 2870144 | 3200 | 3.7 | 640 | 640 | 3200 | 3200 | 4.25 | 3.0 | NCM |
| 2871140 | 3500 | 3.7 | 700 | 700 | 3500 | 3500 | 4.25 | 3.0 | NCM |
| 2879112 | 3000 | 3.7 | 600 | 600 | 3000 | 3000 | 4.25 | 3.0 | NCM |
| 2898135 | 4500 | 3.7 | 900 | 900 | 4500 | 4500 | 4.25 | 3.0 | NCM |
| 3090100 | 3200 | 3.7 | 640 | 640 | 3200 | 3200 | 4.25 | 3.0 | NCM |
| 3449119 | 3050 | 3.8 | 610 | 610 | 3050 | 3050 | 4.35 | 3.0 | NCM |
| 3652135 | 3250 | 3.7 | 650 | 650 | 3250 | 3250 | 4.25 | 3.0 | NCM |
| 3674120 | 5000 | 3.7 | 1000 | 1000 | 5000 | 5000 | 4.25 | 3.0 | NCM |
| 4063112 | 3200 | 3.7 | 640 | 640 | 3200 | 3200 | 4.25 | 3.0 | NCM |
| 5063123 | 5000 | 3.7 | 1000 | 1000 | 5000 | 5000 | 4.25 | 3.0 | NCM |
| 5565120 | 5600 | 3.7 | 1120 | 1120 | 5600 | 5600 | 4.25 | 3.0 | NCM |
| 5770240 | 10000 | 3.7 | 2000 | 2000 | 10000 | 10000 | 4.25 | 3.0 | NCM |
| 5864100 | 5000 | 3.7 | 1000 | 1000 | 5000 | 5000 | 4.25 | 3.0 | NCM |
| 27103105 | 4000 | 3.8 | 800 | 800 | 4000 | 4000 | 4.35 | 3.0 | NCM |
| 28100118 | 4000 | 3.7 | 800 | 800 | 4000 | 4000 | 4.25 | 3.0 | NCM |
Packaging & Delivery :
. Netural labels/Polybag/PVC/Color box/Customised package
. Netrual packing/Cartoon box with less than 10KGS
. Delivery Detail:sample within 8 work days,30~35 days for bulk order
Our warranty is one years, if you have any after services for our products Please check as below.
1,If there isn't humen-made damages,we will provide new item after your next order.
2,when you send us video or picture of the demages items,Our engineer will be analyze it and replace the new accessories in the next order.
1. Do you have samples in stock?
Usually not, because they're usually custom-made batteries.We could finish your sample quickly once order confirmed.
2. Q: Can I get free samples?
Yes. But please confirm the specifications and price of the battery first.
3. Q: What's the delivery time for mass production?
Usually 3-4 weeks, Depends on the quantity, material, battery cell model and so on.
4. Q: What kind of certificates could you provide for the battery?
If it is a model that we already have, we will provide you the battery with the appropriate certificate.
Or we can help you apply for the certificate(CE,UN38.3). Not for free. But if we have a long-term partnerships, you'll get the fee back.
5. Q:When will I get the price?
Within 24 hours. If you are very urgent to get the price, please call us or tell us in your email.
6. Q: What about payment?
Payment terms: By T/T, 30% for deposit, and 70% balance before shipment. PayPal for small amount.
7. Q: What company will be used for making the shipments? DHL? UPS or others?
Via DHL,UPS and FedEx.
8. Q: What's your advantage compared with other suppliers?
a) We were supplier to a Fortune 500 company and have been specializing in batteries for over 15 years.
b) Long-term support for pre-sales and after-sales problems. Free samples will be sent out if needed.
9. Q: Can we visit your factory before placing an order?
Yes, of course.
