Product Description
Lithium battery charger

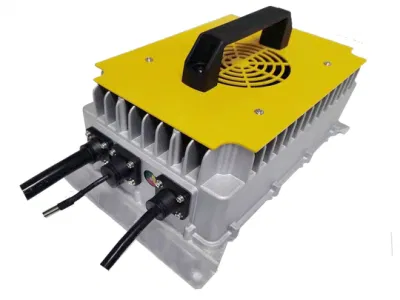

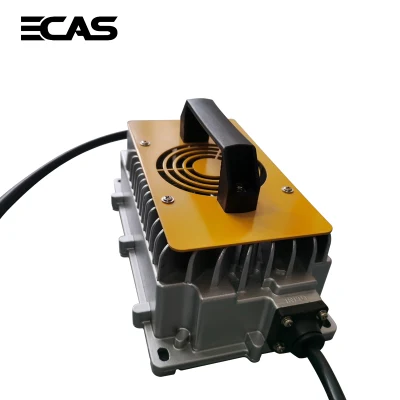

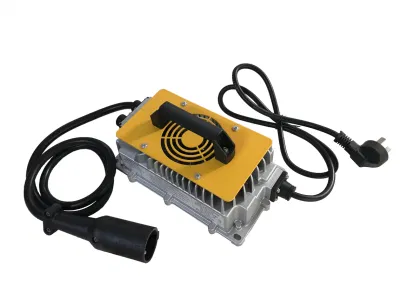

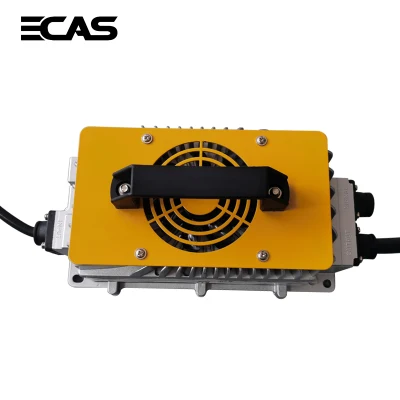

60V 20A Marine Lithium ion Battery Charger
Brief Description:
Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut - off, this charger will charge your racing battery very fast, with high efficiency and protect your battery life to the max. High quality, factory price and 2 years warranty.
Specification:
Battery type: LiFePO4 60V battery
Dimensions: 20.5*12*7cm
Shell Material: Aluminum
AC Input: 100~120Vac, 50~60Hz
Suitable for Battery Voltage: 48V
Output Voltage:64V
Ourput Current:20AMP
battery Protection: SCP, OVP, OCP, OTP
Charging mode: constant current - Constant Voltage - trickle (floating charge) three-stage intelligent charging
Charging efficiency: ≥87% (full load)
Working temperature: -50°F~122°F
Storage Temperature: -104°F~+176°F
Operating Humidity: 20~90%RH
1) Optional charging methods: Lithium or AGM batteries.
2) Advanced high frequency switching mode power supply technology.
3) DC output isolated from AC input.
4) Charging parameters are insensitive to the AC input line voltage variations.
5) Completely automatic 4 steps charge: pre-charge, CC, CV, floating/trickle or shut-off.
6) Protections: Short circuit, Over - voltage, Over - temperature, Reverse Polarity.
7) Aluminum casing, light weight, portable.
8) 100% full load burn-in test.
9) 2 years warranty.
60V 20A Battery Charger Parameters
| Name: | lithium ion battery charger |
| model: | 60V20A |
| Input: | AC110-220V |
| Shell Color: | Black |
| Size: | 220*120*60mm |
| Constant Charging Current: | 20A |
| Charging Mode: | 3 Stages, CC, CV, Trickle |
| Net Weight: | 2.7KG |
| Output : | Maximum output voltage DC 17 volt, Maximum output current 30 amp |
| Constant Charging Voltage: | 36V (10s lifepo4 battery) |
| LED Indicator: | Red--charging, Green--full |
| Applications: | RVs, Commercial Vehicles, Boats, Yachts, and many more! |
| Various Protection: | No-load Output, Anti-reverse connection, Short-circuit protection, Over-temperature protection, Low-voltage protection, Over-voltage protection, Over-current protection |
| Other Item Battery Charger |
| Model Number | XYM12V30A | XYM2415A | XYM2420A | XYM36V15A | XYM48V10A | XYM60V8A |
| Max charge curent (A) | 30A | 15A | 20A | 15A | 10A | 8A |
| Maximum power point | 17V | 34V | 34V | 45V | 68V | 75V |
| Input Voltage (DC) | 17V | 34V | 34V | 45V | 68V | 75V |
| Applicable battery | Lead acid maintenance free, lithium ternary battery, LiFEPO4 | |||||
| Maximum efficiency | 90% | |||||
| Output voltage stabilization accuracy | ±1% | |||||
| Input Voltage Stabilization Accuracy | ±1% | |||||
| Work Temperature | -30ºC-65ºC | |||||
| Seismic grade | SAEJ1378 | |||||
| Cooling method | Forced air cooling | |||||
| Over temperature protection | 75ºC±5ºC | |||||
| Input undervoltage protection | Under voltage point 165V | |||||
| Output overcurrent protection | 110*Max charge current | |||||
| Output short circuit protection | The charger shuts down and automatically recovers after the short circuit is removed when the output is short circuited, | |||||
| Battery reverse connection protection | The charger shuts down and gives an alarm, which automatically recovers after connect correct when the battery line is connected inversely. | |||||
| battery type | battery cell | nominal voltage | charge voltage | charge current |
| 3.2VLifepo4 | 12V | 4S | 14.6V | 40A |
| 24V | 8S | 29.2V | 30A | |
| 36V | 12S | 43.8V | 25A | |
| 48V | 16S | 58.4V | 20A | |
| 60V | 20S | 73V | 15A | |
| 72V | 24S | 87.6V | 12A |
| 1 | Big volume and high weight, not convenient for transportation and use |
| 2 | Lacking protection function, bad reliability |
| 3 | Must manual adjust charge current, difficult to full charge and avoid over charge the battery. |
| 4 | Silicon controlled rectifier adjusts the AC mains supply to charge battery directly. Then there is not isolation with AC mains supply which is dangerous to get an electric shock. And it will damage the AC mains supply waveform. |
| 1 | Short-circuit protection: output current will cut off automatically when short-circuit. |
| 2 | Overload protection: Output Current Will Be Limited Automatically When Overload. |
| 3 | Reverse polarity protection: it will shut down until fuse or the fault removed. |
| 4 | 2-stage charging mode: CC(Constant Current), CV(Constant Voltage) |
| 5 | Long lifetime: In the MTBF test, it makes more than 30,000 POH (power on hours) ,which means about 10 years if it work 8 hours every day. |
| 6 | LED Meter available: Show Charging Voltage and Charging Current. |
| 7 | All kinds of production has passed the CE certification and ROHS. |
| 8 | Aluminum shell:The charger body uses aluminum shell,convenient heat dissipation ,and is not easy to deform ,not easy to damage,give you a perfect apperance and use experience. |
| 9 | Automatic Fan Forced Ventilation Forced Ventilation helps to cool the charger in time |
| 10 | Note: The charger should be placed in good ventilation and free of flammable materials. |
About the plug of the charger
| APPLICATION FILED |
Common Faults and Solutions:
1) Error input voltage: Check if the input voltage conformed to the requirement or not.
2) Abnormal AC input: Check whether there is AC voltage and whether the input plug is loose.
3) Machine over heat: Check that the fan is running. Also pay attention to ventilation at the
working place of charger, covering anything on the charger is not allowed.
4) Output short circuit: Check the wire line of output terminal to exclude short-circuit.
5) No battery or reverse connection: Check the battery connection, connect the battery correctly.
6) Battery voltage is too low: Make battery voltage up to the starting voltage of charger
