Basic Info.
Model NO.
TE4-0327
Ingress Protection
IP67 Water Resistant
Weight
11kgs
Protection
Overheat Short Circuit Reverse Polarity Overcharge
Certificate
cETL /CE-EMC/CE-LVD/RoHS
Transport Package
Color Box
Specification
Color box size: 41x32x15cm
Trademark
TONNY
Origin
China
HS Code
8504401990
Production Capacity
10000PCS
Product Description

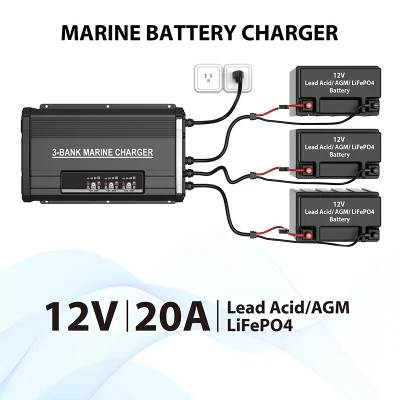

HD Waterproof IP67 Marine Battery Charger, 20 Amp, 3 Bank,for AGM, Wet,Lithium (LiFePO4) and Deep-Cycle Batteries
12V Battery Type Selectable: With MODE button, battery type can
be selected-Lithium (LiFePO4), AGM or Flooded Lead-acid;
Fast charging with big current 20A as per spec;
LED power & charging status indication;
Wake up function for low voltage Lithium batteries;

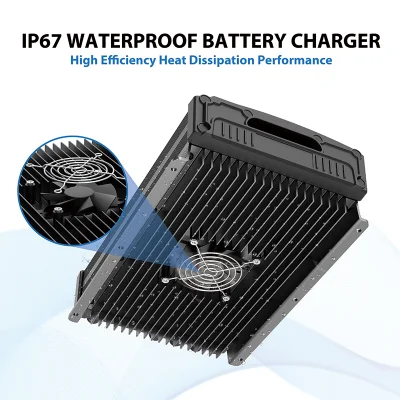

With aluminium stretched plate and waterproof cooling fan
at the bottom of product for better heat dissipation;

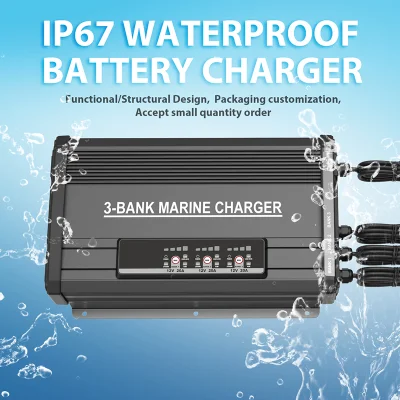

Filled with pure epoxy resin for high waterproof level IP67.
Specifications
Description
Supported Batteries: 12V , can be customized 12V Battery Type Selectable: With MODE button, battery type can
be selected-Lithium (LiFePO4), AGM or Flooded Lead-acid;
Fast charging with big current 20A as per spec;
LED power & charging status indication;
Wake up function for low voltage Lithium batteries;
With aluminium stretched plate and waterproof cooling fan
at the bottom of product for better heat dissipation;
Filled with pure epoxy resin for high waterproof level IP67.
Specifications
| Model | TE4-0327 |
| Battery Type | 12V Flooded Lead Acid/AGM/LiFePO4 |
| Rated AC Input Voltage | AC105-125V, 60Hz or 220-240V, 50Hz |
| Max Output Voltage | 14.3-14.6V |
| Charging Current | 20A per bank, 60A total |

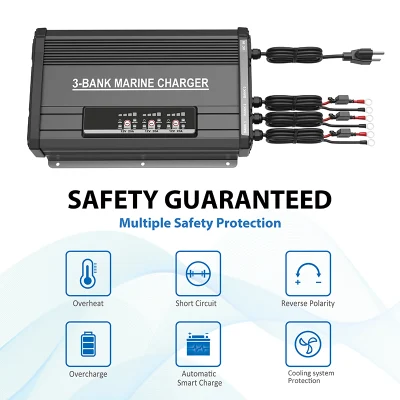

| Protection | Overheat |
| Short Circuit | |
| Reverse Polarity | |
| Overcharge | |
| Housing Material | ABS |
| Ingress Protection | IP67 Water Resistant |
| Color | Customized |
| Certificate | cETL /CE-EMC/CE-LVD/ROHS |
| Weight | 11KGS |
| Size | 41X24.5X9.5CM |
| Plug Standard | Can be customized! |
