Basic Info.
Product Description
51.2V100AH lifepo4 battery with UL1973 certificate and 10 years warranty
Model: 51.2V 100AH
Rated Voltage (V): 51.2V
Rated Capacity (Ah): 100Ah
Supply Ability: 5000 per Month
MOQ: 10-50PCS
Approx Dimension: 440*620*117mm
Approx Weight: 51kg
Certificate: UL1973, UL9540A, IEC62619,UN38.3, MSDS
Battery Model | E-BOX-48100R |
Chemistry | LFP |
Nominal Voltage | 51.2V |
Voltage Range | 47.5V-57.6V |
Nominal Capacity | 100Ah |
Nominal Energy | 5.12kWh |
Unit Dimension | L440mm* W620mm * H117mm(2.6U) |
Unit Weight | 51kg |
Standard Charge Current | 50A |
Maximum Charge Current | 50A |
Standard Discharge | 50A |
Maximum Discharge Rate | 50A |
Round-Trip Efficiency | ≥95% |
Communication Protocol | RS232, RS485, CAN |
Cycle Life | ≥[email protected]/0.5C @90%DOD, ret@80%, 25ºC |
Calendar Life | ≥10years |
Operating Temperature | Charge: 0ºC~ 45ºC, Discharge: -10ºC~ 55ºC |
Certificates | IEC62619 / UL1973 / UN38.3 |

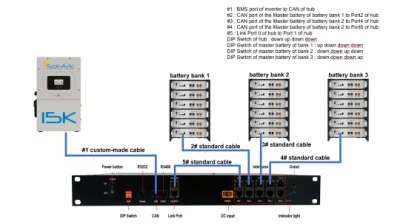

Connect style | Parallel(maximum 56pcs) |
Storage Temperature | Within 1month: -20~55°C,1-3months: 0~35°C,3-12months: 20~25°C |
Compatibility inverter | Deye, Solis, Voltronic, Sol-ark, Growatt, SRNE, Luxpower, Kelong, Goodwe, Studer, Sermatec, Megarevo etc. |

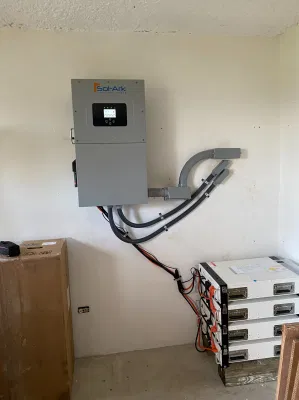

Installation way | Wall mounted or floor standing(2pcs can be integrated into one box) |
ABOUT COMPANY
Nowadays, the world is faced with instability of nuclear power generation and environment problem,which is necessary result from the development without considering next generation.Accordingly, STIN established and targeted on being a Total Solution Company which is based on clean sustainable solar energy.Including polysilicon, ingot, wafer, cell and modulewhich are the base of Solar industry,STIN is also dealing with PV Equipment, EPC and O&M. Beyond the Eastern Asia, STIN is making an effort for the whole world's green energy independence.Starting with the supply of high-quality raw material from the China which is the number one PV Market in the world, making a PV plant in Korea and providing 3KW residential solution to South-EastAsia, STIN will keep solving the global environment problem.
STIN knows the importance of green energy.
STIN endeavors for protecting the precious value.
FAQ
1: What's your main products?
Solar panel mono and poly, solar battery gel and lithium-ion, solar system on grid and off grid, solar inverter on grid and off grid, solar charge controller MPPT and PWM.
2:What is your advantage in solar products?
We have been in solar industry for more than 10years and accumulated rich experience. With branch in Japan, Korea, Singapore and Cambodia, full support can be supplied from design to installation.
3: Can you send free samples?
It depends on which kind of products. Normally the sample fee will be returned after you place massive order.
4: What's the shipping cost?
After you confirm the quantity, please let us know which kind of transportation(by sea, by air, by DHL or Fedex or TNT or UPS) you prefer and the destination port. We will send you the shipping cost and time.
5: What's your minimum order quantity?
1pc.
6: How can we send the payment?
T/T, L/C, Paypal, Western Union.
