Basic Info.
Transport Package
Carton
Specification
200X97X40 cm
Trademark
neutral
Origin
China
Production Capacity
500000p /Year
Product Description
| echnical features | ||||
| Max -Power: | 150W | 135W | 110W | 80W |
| Solar cells: | Sunpower | Sunpower | Sunpower | Sunpower |
| Min power tolerance: | ±3% | ±3% | ±3% | ±3% |
| Peak power(WP): | 150W | 135W | 110W | 80W |
| Voltage at Pmax(Vmp): | 25.5V | 23.2V | 18.6V | 19.8V |
| Current at Pmax(Imp): | 5.97A | 5.97A | 5.97A | 4.04A |
| Open circuit voltage(Voc): | 30.1V | 27.4V | 21.9V | 23.4V |
| Short circuit current(Isc): | 6.32A | 6.32A | 6.32A | 4.28A |
| Max System Voltage(VDC): | 45VDC | |||
| cell Efficiency: | 22.60% | 22.60% | 22.60% | 22.60% |
| Temperature Coefficient of Pmax: | -0.32%/ºC | |||
| Temperature Coefficient of Voc: | -1.8mv/ºC | |||
| Temperature Coefficient of ISC: | -0.06%/ºC | |||
| Nominal Operating Cell Temperature: | 45+/-2ºC | |||
| Data under standard testing conditions(STC):1000W/M²; 1.5AM | ||||
Advantages :
Hardening process :
The surface with Hardening process prevent from scratched electronic appliances :
SO easy installed :
easy installed with clue , adhesive , screw , and also grommet at corner is easy for installation .
High wind-pressure :
The modules can withstand high wind-pressure, snow loads and extreme temperatures .
Super Light weight :
Light weight for easy carrying easy shipment easy installation, really 83% lighter than normal
21kV High-Voltage Breakdown Test, Better Durability Withstand Fire/Dust/UV/Tear Tests For Super Isolation Back Sheet,Multi-layer
Structure.
Structure.
>90% Higher Transmittance EVA,Higher GEL Content To Provide Good Encapsulation And Protect Cells From Vibration With Longer
Durability.
Durability.
12% Ultra Clear Tempered Glass.
30% Lower Reflection

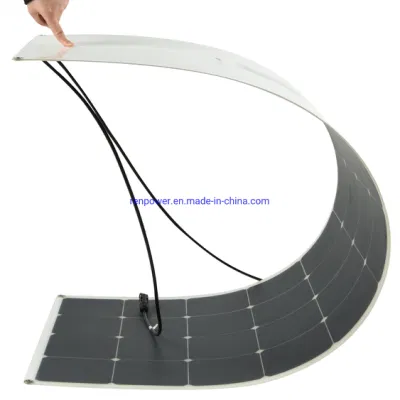

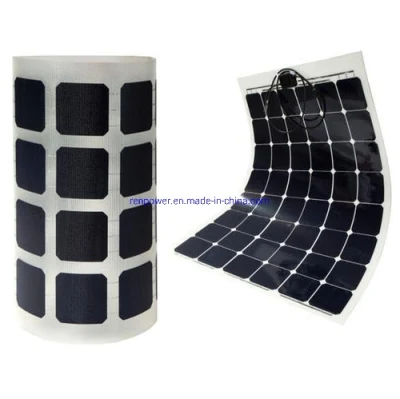

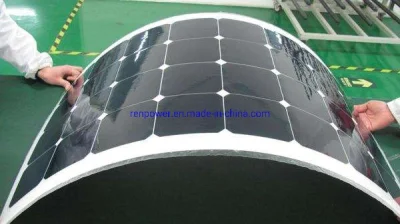

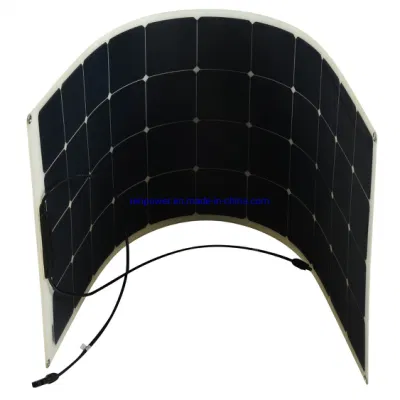

| Type | High efficiency flexible solar panel | |||
| Cells type | 20% high efficiency Sunpower brand solar cells (Imported from USA) | |||
| Top layer type | PET/ETFE | |||
| Color | White/Black/Transparent | |||
| Connector | Anderson/DC/Any others | |||
| Cable length | 0.9m/Customized | |||
| OEM/Unbranded/Customized service | Available | |||
