Product Description

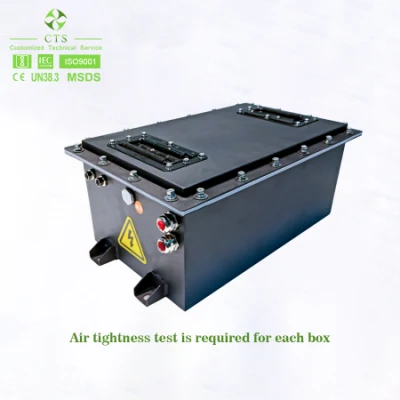

48V Lifepo4 Golf Cart Battery
Use only the highest quality batteries
Batteries that use the same standard as the country
48V LifePO4 Battery Pack built with the grade A high quality LiFePO4
cell, which provides 3500+ cycle life and a 10 year lifetime cycle use.
* Use 100% brand new grade A Lifepo4 cells
* Charge current: ≤100A
* Continuous discharge current: ≤100A
* Case Material: Metal Case
* Over 6000 cycles at 80% DoD
| MODEL | CTS3680 | CTS36160 | CTS4880 | CTS48160 | CTS7280 | CTS72160 |
| ELECTRICAL SPECIFICATIONS | ||||||
| Cell Configuration | 12S1P | 16S1P | 16S1P | 16S2P | 23S1P | 23S2P |
| Rated Capacity | 80Ah | 80Ah | 105Ah | 160Ah | 80Ah | 160Ah |
| Rated Voltage | 38.4V | 51.2V | 51.2V | 51.2V | 73.6V | 73.6V |
| Energy(kwh) | 3.072 | 4.096 | 5.376 | 8.192 | 5.888h | 11.776 |
| Dimensions(cm) | 35*20*25 | 45 * 30 *18 | 45 * 35 *25 | 50*35*25 | 35*35*25 | 65*35*25 |
| Weight | 28Kg | 40Kg | 48Kg | 68Kg | 48Kg | 90Kg |
| DISCHARGE/CHARGE SPECIFICATIONS | ||||||
| Discharge Cut-off Voltage | 30V | 40V | 40V | 40V | 57.5V | 57.5V |
| Max Continuous discharge current | 80A | 80A | 100A | 150A | 80A | 150A |
| Charging Limited Voltage | 43.8V | 58.4V | 58.4V | 58.4V | 83.95V | 83.95V |
| Max Charging Current | 40A | 40A | 50A | 80A | 40A | 80A |
| Charge Temp | 0~55ºC | |||||
| Discharge Temp | -20~55ºC | |||||
| Recommended Operating Temp | 15~35ºC | |||||
| Recommended Storage Temp | 15~35ºC, 45~75%RH | |||||
| WARRANTY | ||||||
| 2-Year warranty , 3500 cycles @85% DOD | ||||||
1.Higher energy density
LifePO4 batteries have more energy density , It is much smaller in weight and volume . Under
the same specification and capacity, the volume of lithium ion battery is about 2/3 of that of
lead-acid battery, and the weight is about 1/3 of that of lead-acid battery.
2.Green and environmental protection
LiFePO4 batteries MAINTENANCE-FREE, free from dayly managing , No water filling, no terminal
tightening and cleaning of acid deposits on the top of our batteries.
3.Security:
LiFePO4 batteries have very high thermal and chemical stability. They have built in BMS which
including over charge, over discharge, over-heating and short circuit protection.
Our LiFePO4 batteries can be charged quickly in a short time, up to 2 hours .effectively increasing
productivity.
large energy storage batteries, smart home storage batteries, high-end electric motorcycle batteries and so on.
vehicle, E-bike, UPS, energy storage system, telecommunication base station,E-scooter, E-tools,unmanned airplane, golf cart,
fork lift, cleaning car , electric wheelchair, etc.
We has been pursuing quality policy of continuous innovation and improvement to meet customer's requirements. To realized
full automation, we has introduced advanced foreign equipment and technology from Korea and Germany. To ensure the best
quality, we has passed I S O 9 0 0 1 , I S O 1 4 0 0 1 and O H S A S 1 8 0 0 1 certifications.
We stick to the company concept of human orientation and efficient innovation and we welcome customization. So, lets join
together to promote the development of renewable energy and friendly environment.
