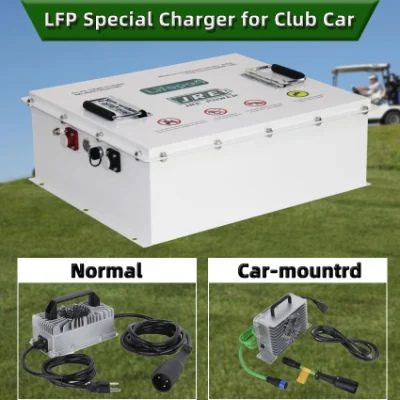

Golf Cart Lithium Battery Electric Club Car Lifepo4 Battery 48V 60ah 100Ah 105Ah Lithium Ion Battery With Charger
JSZ-G2785P was designed by battery suppliers JREPower, assembled by lithium phosphate battery cells, continuous operating current is 120Amps, peak current up to 300Amps. JREPower's Golf Cart Battery 48V 100Ah lifespan is over 4000times. Our professional golf cart battery's weight is about 88Lbs(40kg), which makes the battery last longer when you want to use them for a day. Please contact us before you want get one lithium battery for your golf cart, in order to optimally match the golf cart to the application.
Cycle Life Details :
- Over 4000 Life Cycles at 1C = 100A / 1-Hour Time Discharge to 100% Depth DOD
- Over 6000 Life Cycles at 1C = 100A / 1-Hour Time Discharge to 30% Depth DOD
- Discharge Slower, and Charge Slower, while maintaining and storing the battery Indoors at Standard Room Temperatures 40F, and you can see Life Cycles exceeding 10,000 Life Cycles.
Basic Parameters
| Battery Model | JSZ-G2785P | JSZ-G27105P | |
| Energy | 5KWh(51.2V 100Ah) | 6KWh(51.2V 120Ah) | |
| Nominal Voltage | 51.2V(16S) | ||
| Operating Voltage Range | 44.8V~57.6V | ||
| Cell Technology | Lithium Iron Phosphate (LiFePO4) | ||
| Cycle Life | 4000 cycles@80%DOD | ||
| Design Life | 15+ Years(25ºC@77ºF) | ||
| Charge Current/Discharge Current | 20A/100A(Max.) | 30A/120A(Max.) | |
| Dimension | 540 * 440 * 220 mm | 520 * 350 * 280 mm (20.5 * 13.8 * 11 inch) | |
| Approx Weight | 47kg | 55kg | |

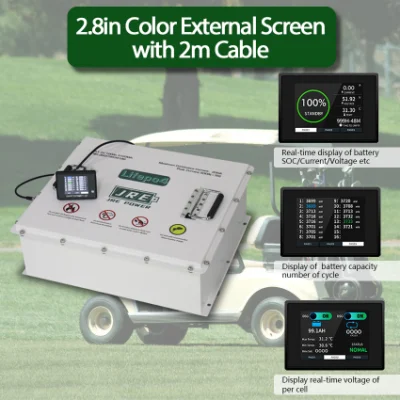

| Display | LCD | ||
| Communication | Modbus,RS485,RS232,CAN,WIFI | ||
| Operating Temperature | -20ºC~55ºC | ||
| Relative Humidity | 5%~95% | ||
| Cooling | Natural Convection and Fan Cooling | ||
| Parallel Connection | Optional (up to 16p) | ||
| Installation Form | Plug and Plug | ||

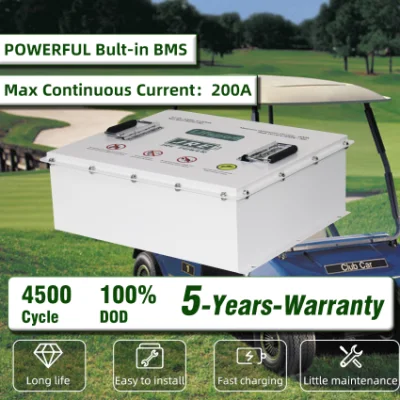

| BMS Protection Function | Overcharge/Overdischarge/Overtemperature/Overcurrent/Short Circuit | ||

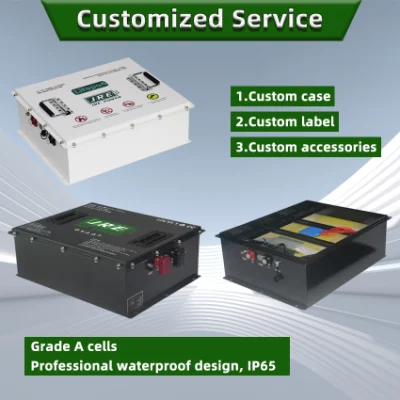

| OEM | Support customization of enclosure/ capacity/ display/ Bluetooth etc | ||
Lithium-iron Phosphate Battery vs Other Lithium-ion Battery
(1)Integrated BMS in the single pack; it can work independently as battery system;
(2)Flexible configuration, modular design, the first choice for medium and small power systems;
(3)Easy installation, plug and play;
(4)Small cube and less weight;
(5)Visual human-machine interface monitors the running status of the battery system in real-time.
(6)Charge and discharge times> 4000 times, system life > 10 years.
High Safety
Low-thermal-runaway-rate LFP battery; Bidirectional active equalization and triple-layered safety protection in BMS design; 7mm insulation distance for safety and reliability; optimized solution in anti-thermal runaway and anti-leakage design.
Easy O&M
Convenient operation and maintenance; Modular design, easy for installation and capacity expansion; 19 inch standard cabinet, small in size, light in weight and low in O&M operation.
Smart management Real-time monitoring.
The accuracy of SOC is better than 3% for the whole system; Intelligent air cooling design for stable operation; Equipped with interactive display, CAN and RS485 communication;
| Golf Cart Battery Series | |||||||||
| Model | Nominal Voltage | Nominal Capacity | Energy | Dimension(mm) | Weight | Cell Combination | Battery Cell | ||
| JSZ-G2345P | 38.4V | 60Ah | 2304Wh | 330*230*250 | 25kg | 12S1P | 3.2V 60Ah | ||
| JSZ-G2385P | 100Ah | 3840Wh | 420*310*180 | 34kg | 3.2V 100Ah | ||||
| JSZ-G2745P | 51.2V | 60Ah | 3072Wh | 450*320*250 | 28kg | 16S1P | 3.2V 60Ah | ||
| JSZ-G2785P | 100Ah | 5120Wh | 500*320*250 | 47kg | 3.2V 100Ah | ||||
| JSZ-G2790P | 105Ah | 5376Wh | 500*320*250 | 50kg | 3.2V 105Ah | ||||
| JSZ-G27105P | 120Ah | 6144Wh | 520*350*250 | 55kg | 3.2V 120Ah | ||||
| JSZ-G27135P | 150Ah | 7680Wh | 520*350*250 | 60kg | 3.2V 150Ah | ||||
| JSZ-G3585P | 76.8V | 100Ah | 7680Wh | 640*320*350 | 65kg | 24S1P | 3.2V 100Ah | ||
| JSZ-G3590P | 105Ah | 8064Wh | 640*320*350 | 68kg | 3.2V 105Ah | ||||
| JSZ-G35105P | 120Ah | 9216Wh | 680*380*350 | 75kg | 3.2V 120Ah | ||||
Contact with JREPower to Get Your Customized Solution Now!
How to get an accurate quotation from JREPower quickly?
You can get an accurate quotation and project designing quickly If you can send these info to us:
1. Detailed application
2. Voltage and capacity
3. Motor's power(W), or load's continuous working current
4. Dimensions(length*width*height)mm, If you have drawing, please send it.
If you want to get more info about our company and our batteries, please feel free to contact with us, our team is ready to support you.
Q: How long does a lithium ion phosphate battery last?
A: There are many calculation methods for the capacity of UPS backup lithium ion battery (power method, constant power method, constant current method, estimation method, etc.), and each calculation method has its own focus. In practical applications, it is necessary to comprehensively consider the use of the battery and the load carried by the UPS. Choose the appropriate battery capacity calculation method based on the situation and application.
For more information please contact us directly by clicking the link below
https://szjrepower.en.made-in-china.com/contact-info.html
Shenzhen JRE-POWER Technology Co., Ltd. was established in 2013 and is located in Yingzhan Industrial Zone,, Shenzhen. In the first 8 years of its establishment, after reconciling with the outdoors, the company already has innovative national invention patents and intellectual property rights. Exclusive use rights, technical decomposition of equipment and cutting-edge development team. The existing 3,000 square meters factory and office area, with advanced modern production lines and equipment, focus on the integrated production and sales of batteries and related products.
The main products have a wide range of applications, and can be used for special electric vehicles, including pure electric airport tractors, electric mining trucks, electric forklifts, etc.; it can also provide power lithium for various applications such as low-speed vehicles, electric vehicles, and submarines. In addition, it is also applicable In the battery construction of urban recovery, end recovery systems and supporting mobile user equipment and other fields. We are the most professional batteries manufacturer and trade enterprise.Win-Win Cooperation!
Shenzhen JRE-POWER Tech Co., Ltd can provide a complete set of energy storage micro-grid system solutions to solve the problem of energy shortage for individual customers. From 12V/24V Series Battery , 48V Rack Mount Battery , Powerwall , Stackable ALL IN ONE Battery System,etc.
The company's one-stop energy storage micro-grid system is affordable, simple to operate, and high in power generation. The daily power generation can create about $15 value, and the cost can be recovered in 0.8 years. Very trustworthy.
Quality Assurance: After layers of quality inspection, strictly control the quality of the factory
After-sales Service: Professional after-sales team, to give you peace of mind shopping experience
Logistics Guarantee: Keep track of logistics so that products can reach you quickly and safely
1. who are we?
We are based in Guangdong, China, start from 2013,sell to Northern Europe(18.00%),North America(15.00%),South America(15.00%),Eastern Europe(15.00%),Central America(15.00%),Oceania(12.00%),Western Europe(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
3.2V battery cell,lifepo4 battery,BMS,LFP battery,li-ion battery,12V lifepo4 battery pack.and high voltage over 700V battery pack .
4. why should you buy from us not from other suppliers?
JREPower is a company with more than 12 years experience of lithium battery.We know what you want and what you need.Chat with us if you have something confused or need some help.Solve problem and Win-Win cooperation.
