Product Description

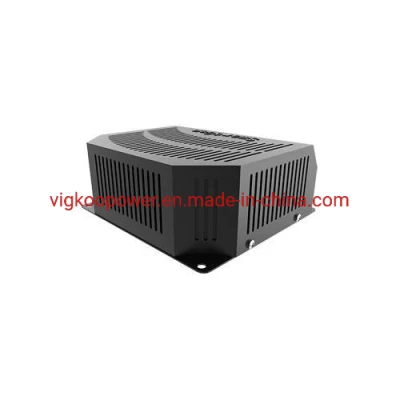

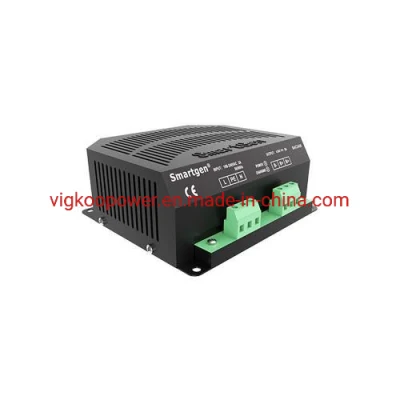

BAC2408 battery charger adopts the latest switching power supply device, specially designed for the charging characteristics of the lead-acid battery to start the engine. It is suitable for the long-term supplementary charge (floating charge) of 24V lead-acid battery.
Features:
1)Switch power supply structure, wide input alternating voltage range, small size, light weight, high efficiency rate;
2) Automatic two-stage charging process (first constant current, then constant voltage) carried out according to storage battery charging characteristics to prevent overcharging and significantly prolong battery lifetime;
3) Built-in PFC circuit can calibrate the power factor above 0.99;
4) Built-in current protective circuit for short-circuit protection and reverse connection protection. If failure occurs, power indicator and charging indicator will flash rapidly;
5) Suitable for 24V storage battery and the rated current is 8A;
6) LED display: Power indication (Green light) and charging indication (Red light).
Product Parameters
| Item | contents | Parameters |
| Input Characteristics | Nominal AC Voltage | AC(100-240)V |
| Max. AC Voltage | AC(90-280)V | |
| AC Frequency | 50hz/60hz | |
| Max. Current | 3A | |
| Efficiency | AC110V >86% | |
| Power Factor calibration | AC110V >0.98 | |
| AC110V >0.90 |
OPERATION

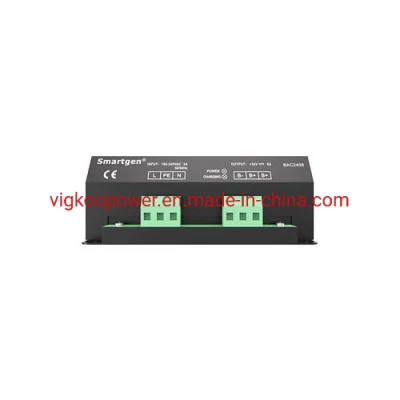

1. Connect terminals L and N to alternating voltage (100~240)V using BVR 1mm2 multi-strand copper line.
2. Connect B+ and B- to battery positive and negative using multi-strand BVR2.0mm2 copper wires.
3. PE terminal: earth terminal; connect to shell innerly.
4. POWER: power supply indicator, illuminated when the charger is operating normally.
5. CHARGING: charging indicator, illuminated when charging current exceeds 0.5A while extinguished when battery charging is finished.
NOTE:
1) Because there is diode and current-limiting circuit inner the charger, it can be used together with charging generator, and there is no need to disconnect the charger when cranking.
2) During genset is running, high current will cause voltage drop in charging line, so recommend separately connecting to battery terminal to avoid disturbance on sampling precision.
Package Included:
- 1 x Battery Charger
