Basic Info.
Model NO.
QW360-200-S
Size
285*140*90mm
Certification
RoHS, CE
Socket Type
Au/EU/UK/Us Plug
Recyclable
Recyclable
Input Voltage
100-240VAC 50/60Hz
Color
Black
Transport Package
Corrugated Paper Packing Box
Specification
Weight: 3000g(only body)
Trademark
QUAWIN/OEM
Origin
Shenzhen
HS Code
850431900
Production Capacity
50000 Pieces
Product Description
Quick Detail:
Brand Name:QUAWIN
Model Number:QW360-200-S
Use:36V Lead-Acid Battery
Type:Electric
Place of Origin:Guangdong China (Mainland)
Battery charger:automatic battery charger 44.1V
Color:Black/Army green
Shell Material:Aluminium alloy
Additional functionality:LED display
Input voltage:100-240VAC 50/60Hz with PFC
Output voltage:44.1V
Output current:20a
Output power:882W
Efficiency:>=90%
Shock & Vibration:SAEJ1378 Standard
Charge mode:CC---CV---Float Charge
Output Connector:Crocodile clip,aviation connector,XLR,Ring terminal,Anderson connector,customization
Packaging & Delivery :
Specifications:

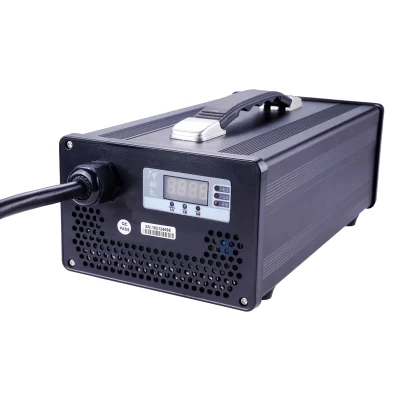

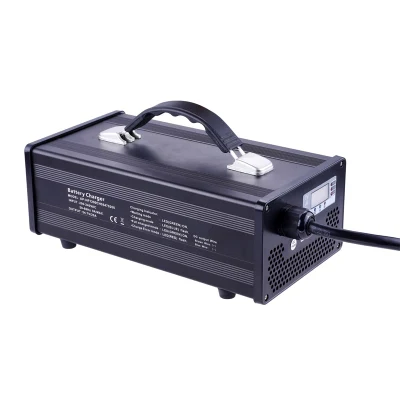

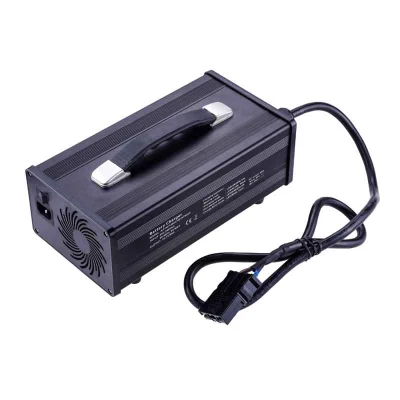

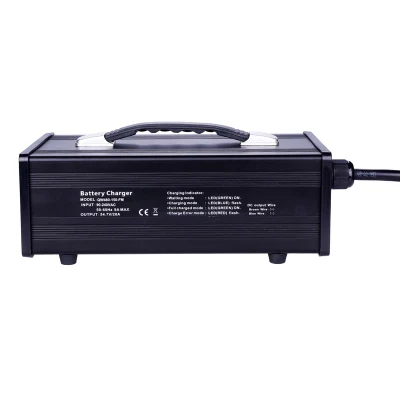

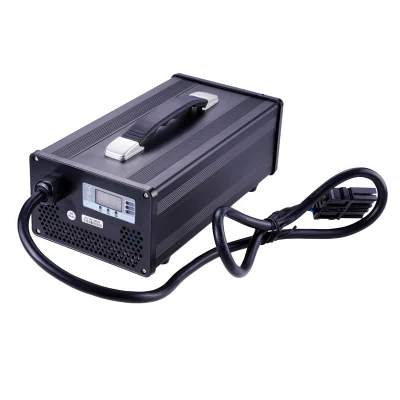

Portable fast SLA /AGM /VRLA /GEL charger 36V Lead-acid Battery charger
Features:
• Fully auto CC +CV(H)+CV(L) charging process,with MCU controller
• Constant big charging current for faster charging;
• automatically charging ending with Cut-Off output;
• Metal case with Fan Cooling
• It can charge any 36V SLA/VRLA/GEL/AGM battery with capacity 80-160Ah
Specification:
• Input:100-240VAC 50/60Hz with PFC
• Output: DC 44.1V
• Charging current: 20a(Max)
• Dimensions (mm): 285*140*90
• Weight: 3000g(only body)
Safety protections:
• Over Voltage protection
• Short Circuit protection
• Polarity error protection
• Over power protection
LED Indicator:
Waiting Mode:LED(GREEN) ON
Charging Mode:LED(BLUE) FLASH
Full Charged Mode:LED(GREEN) ON
Charge Error Mode:LED(RED) FLASH
Brand Name:QUAWIN
Model Number:QW360-200-S
Use:36V Lead-Acid Battery
Type:Electric
Place of Origin:Guangdong China (Mainland)
Battery charger:automatic battery charger 44.1V
Color:Black/Army green
Shell Material:Aluminium alloy
Additional functionality:LED display
Input voltage:100-240VAC 50/60Hz with PFC
Output voltage:44.1V
Output current:20a
Output power:882W
Efficiency:>=90%
Shock & Vibration:SAEJ1378 Standard
Charge mode:CC---CV---Float Charge
Output Connector:Crocodile clip,aviation connector,XLR,Ring terminal,Anderson connector,customization
Packaging & Delivery :
4pcs/Carton
Carton size: 475*422*375mm
Delivery Detail:sample within 10 work days,25~35 days for bulk order
Carton size: 475*422*375mm
Delivery Detail:sample within 10 work days,25~35 days for bulk order
Specifications:
Portable fast SLA /AGM /VRLA /GEL charger 36V Lead-acid Battery charger
Features:
• Fully auto CC +CV(H)+CV(L) charging process,with MCU controller
• Constant big charging current for faster charging;
• automatically charging ending with Cut-Off output;
• Metal case with Fan Cooling
• It can charge any 36V SLA/VRLA/GEL/AGM battery with capacity 80-160Ah
Specification:
• Input:100-240VAC 50/60Hz with PFC
• Output: DC 44.1V
• Charging current: 20a(Max)
• Dimensions (mm): 285*140*90
• Weight: 3000g(only body)
Safety protections:
• Over Voltage protection
• Short Circuit protection
• Polarity error protection
• Over power protection
LED Indicator:
Waiting Mode:LED(GREEN) ON
Charging Mode:LED(BLUE) FLASH
Full Charged Mode:LED(GREEN) ON
Charge Error Mode:LED(RED) FLASH
Call us to know more details datasheet.
| (A Typical Model) | |||||
| Model | Input Voltage(V) | Battery Voltage(V) | Charging Voltage(V) | Charging Current(A) | |
| QW128-500-F | (LiFePO4) | AC 100~264V | 12.8(4S) | 14.6 | 50 |
| QW256-300-F | 25.6(8S) | 29.2 | 30 | ||
| QW384-200-F | 38.4(12S) | 43.8 | 20 | ||
| QW512-150-F | 51.2(16S) | 58.4 | 15 | ||
| QW640-120-F | 64(20S) | 73 | 12 | ||
| QW768-100-F | 76.8(24S) | 87.6 | 10 | ||
| QW148-500-L | (Lithium) | 14.8(4S) | 16.8 | 50 | |
| QW259-300-L | 25.9(7S) | 29.4 | 30 | ||
| QW370-200-L | 37(10S) | 42 | 20 | ||
| QW481-150-L | 48.1(13S) | 54.6 | 15 | ||
| QW629-120-L | 62.9(17S) | 71.4 | 12 | ||
| QW740-100-L | 74(20S) | 84 | 10 | ||
| QW120-500-S | (Lead Acid) | 12(1S) | 14.7 | 50 | |
| QW240-300-S | 24(2S) | 29.4 | 30 | ||
| QW360-200-S | 36(3S) | 44.1 | 20 | ||
| QW480-150-S | 48(4S) | 58.8 | 15 | ||
| QW600-120-S | 60(5S) | 73.5 | 12 | ||
| QW720-100-S | 72(6S) | 88.2 | 10 | ||
