Basic Info.
Charging Mode
3
Standard
SAE J1772:2017
Number of Insertions
No Less Than 10000
Insertion Force
No More Than 75 N
Rated Current
16A, 32A, 40A, 50A
Rated Voltage
240V
Number of Power Jacks
3(L, N, PE)
Signal Contact
2(CS, Cp)
Rated Current of The Signal Contact
2A
Transport Package
Carton Box
Trademark
degson
Origin
China
HS Code
8504409999
Production Capacity
50000000PCS/Year
Product Description

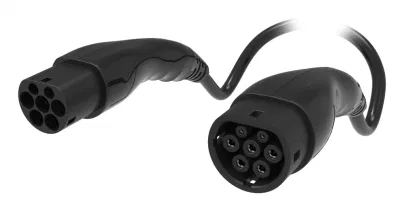

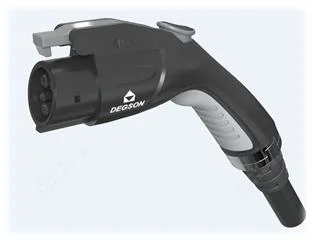

Wholesale IEC 62196 16A 3.5kw Electric Car Charger Level 2 Home Adaptor Charger Type 2 AC Portable EV Charging Station.
Environmental conditions
| Maximum altitude | 5000m(Above sea level ) |
| Ambient temperature (operation) | - 30 °C ~ 50 °C |
| IP class | IP54(protection cover) |
Electrical characteristics
| Maximum charge power | 24KW |
| Phase | 1 |
| Power pin quantity | 3 |
| Rated current of high-power contacts | 32 |
| Power contact rated voltage | 440 |
| Quantity of signal contacts | 2 |
| Signal contact rated current | 2 |
| Signal contact rated voltage | 24 |
| 30 | |
| Resistance coding | 220Ω |
| Temperature measurement | PT1000 |
Mechanical properties
| Insertion force | < 100N |
| Pull out force | < 100N |
Marking material
| Shell color | black |
| EV charger color | black |
| Cover color | black |
| Customization basis | Provided according to customer requirements |
| Handle material area | Plastic |
| Protective cover material | Soft plastic |
| Flammability rating | V0 |
| Contact surface material | Ag |
Environmental Product Compliance
| China RoHS | conform |
Cable
| Cable composition | 5*6mm²+1*0.75mm² |
| 3*10AWG+1*18AWG | |
| Wiring standard | EN50620 |
| IEC62893.3 | |
| Wiring level | 5 class |
| Certification | CE |
| CB | |
| TUV | |
| Cable outer diameter | 16.2±0.5mm |
| Wire type | Straight line |
| Cable resistance | ≤ 0.0033 Ω/m (Based on the power core, at an ambient temperature of 20°C) |
| Outer sheath,color | black |
| Minimum bend radius | 97.2 mm |
| Outer sheath, material | PUR |
Dimension
| Vehicle connector height | 79mm(Vehicle charging connector) |
| Vehicle connector depth | 222.3mm(Vehicle charging connector) |
| Cable length | 5000±50mm |
| Strip length | 100±10mm |
| width | 70mm |
Founded in 1990, DEGSON is a global solution provider of electrical, electronic and industrial connectors. As a National High-tech enterprise, DEGSON owns the UL and VDE certified laboratory. The company achieved ISO9001, ISO14001, ISO80079-34, ISO/TS22163 and IATF16949 management system certifications.
DEGSON is engaged in supplying highly reliable and durable products to serve global customers. The company has a market-leading capability of mould processing, automatic manufacturing and advanced testing. DEGSON has the complete engineering ability to support global customers with the professional customization solution and value-added service.
DEGSON products are widely recognized in China, the USA, Germany, the UK, Italy, Spain,Turkey, Japan, South Korea, Singapore, etc. totally hundred countries and regions .DEGSON supply high quality products and provide professional services globally in the industry sectors likely industrial automation, instrument, electric power, railway, marine and offshore, new energy, elevator, lighting, security, machinery, etc. The company won the recognition from partners among Fortune 500 and industry leading enterprises.
Based on the business philosophy of "pragmatic innovation, responsibility, integrity, harmonious development, regulation and win-win ", DEGSON continuously integrates professional technical resources, R&D innovation, product manufacturing and technology application capabilities. Relying on global sales network, DEGSON aims to supply series of multiple varieties of high-qual ity products and services. We provide global customers with professional and quick connected application solutions, help customers continue to create value. DEGSON is making contributions to creating a smart and interconnected world.
Q1: How can l put my order?
A1: You can order by yourself or contact our sales personnel who can provide you with a full quotation and understanding of your needs. We have an efficient sales team who will reply you in good time and who strive to give you the best service.
Q2: Do you post to all countries?
A2: We ship globally to many countries. lf you are unsure, kindly contact us via email or message.
Q3: How much do you charge for shipping?
A3: Each product has been weighed and we will price it according to the carrier's charges, we do not profit through the shipping
cost.
Q4: What is your sample policy?
A4: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost. Any needed please contact our sales team.
Q4: What payment method do you accept?
A4: We accept all payment methods include PayPal, T/T, Credit Card, Made-in-china.com online trading, Western Union and bank transfers. Please contact us for more details.
Q5: What if my item arrives damaged, faulty or incorrect?
A5: On the unfortunate case that this happens, please contact us as soon as you receive the item. Please provide your name, order number and issue so that we can get it resolved quickly for you.
Q6: What power/kw to buy?
A6: First, you need to check the obc specifications of the electric car to match the charging station. Then check the power supply of the installation facility to see if you can install it. However, although Khons EV charging station are three phase and single phase compatible so even you buy a three phase charger, with only single phase power supply, it can be installed too.
Q7: How long does it take to fully charge a car?
A7: It's the battery capacity divides the actual charging power. Take BMW i4 eDrive40 for example, the batter is 83.9kw.h, charge power is 11kw, so if you have three phase power, install a 11kw charging station, actually charge at 11kw per hour, then the time to charge should be 83.9/11=7.62 hours. But usually after charging to 90%, the charging will slower. And if charge at a 7kw charging station, it should be 83.9/7=12hours.
Q8: What types of charging connector/plug to buy for AC charging?
A8: Please refer to below picture to confirm your plug type:
