Fast Charging Cargador Coche Elctrico Estacion De Carga PARA Autos CE

Looking for a fast charging car charger station for electric vehicles? Look no further! Our factory manufactures high-quality charging stations for CE-rated electric cars.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Certifications
  • Detailed Photos
  • Company Profile
  • EXhibition
  • Our Project
Overview

Basic Info.

Model NO.
P-80 KW
Power Configuration
Silmutaneously/Independently
Certificate
TUV CE
Language
English, Russian, Chinese... Cuztomizable
Screen Size
12.1 Inch
After-sales Service
Free Spare Parts
Type
Fast EV Charging Station
Certification
CE, ISO, TUV
Warranty
12 Months
Transport Package
Carton Box
Specification
60KW-240KW
Trademark
Poulton
Origin
China
HS Code
85044099
Production Capacity
30000pieces/Month

Product Description



* Suitable for any location, from public to private, from hotels to workplaces or multi-fammily residences.
* The power range is from 60KW to 240KW
* Classic appearance with nobleness and elegance
* Fast Charging,robust and ready for future
* Configurations and business models for all locations
* Maximum product life with minimum maintenance
* Ethernet & 3G/4G wireless communication
* Good service & reliable charging experience
* High quality and competitive prices

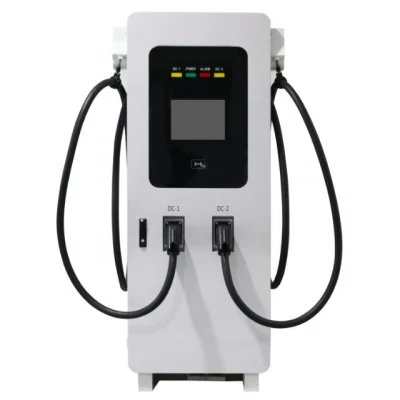

Product Name  EU/U.S Standard DC Charger
Stucture DC Charging Station with 2 Connectors
Dimension 700*1900*650mm
Output Power 60KW 120KW 180 KW  240 KW
AC input voltage range (V) AC260V~AC485V 3 Phase 5 Wires(A+B+C+N+PE)
Max output current  DC200A DC400A DC400A DC400A
Max output current for single plug (A) DC200A DC200A DC200A DC200A
Frequency range (Hz) 50Hz±10%
DC Output voltage range DC150~1000V
Charging port (PCS) 2
Waterproof rate IP54
Payment Mode RFID Card. APP
Efficiency ≥95%
Power factor ≥0.99
Humidity ≤5%-95%non-condensing
OperatiingTemperrature -40ºC~+70ºC,Derating above 50ºC
Altitude <2000m, Derating above 2000m
Protection
Input/output over/under voltage protection;Over current and short circuit protection;Over temperature protection;lightning
protection

Certifications



Fast Charging Cargador Coche Elctrico Estacion De Carga PARA Autos CE
Fast Charging Cargador Coche Elctrico Estacion De Carga PARA Autos CE

Detailed Photos



Fast Charging Cargador Coche Elctrico Estacion De Carga PARA Autos CE
Fast Charging Cargador Coche Elctrico Estacion De Carga PARA Autos CE
Fast Charging Cargador Coche Elctrico Estacion De Carga PARA Autos CE

Fast Charging Cargador Coche Elctrico Estacion De Carga PARA Autos CE
Support 2CCS2 Plug, CCS2+CHAdeMo Plug, CCS2+GBT Plug, 2GBT Plug, 2CHAdeMo Plug, CHAdeMo+GBT Plug

Company Profile
Guangdong Poulton Technology Co., Ltd. is a high-tech enterprise focusing on the construction of New Energy Vehicle Charging Stations and Super Solar Charging Stations, Integrating Photovoltaics, Energy Storage and Charging Stations, Battery Energy Storage System. Poulton Technology conscientiously implements the six development concepts of "integrity, pragmatism, innovation, transcendence, sharing, and service", innovates business models,builds core competitiveness, and is committed to becoming a benchmark brand in China's new energy power field.
The company has gathered a group of outstanding technical research and development elites and management talents from Huawei, Emerson, MTK and other industries. It has strong design and development capabilities and production quality assurance capabilities. The company currently has advanced R & D equipment and a complete quality management system, which can ensure that every link of each product from research and development, production, sales to after-sales is orderly and controllable. At present, the company's high-quality products that meet national standards and European and American standards, such as integrated DC chargers, split DC chargers, AC chargers, mobile DC chargers, etc., have approved TUV CE Certificated ,the Kipor Testing Center, State Grid NARI Inspection Center, CCIC Southern and other third-party authoritative institutions have tested and met the standards.

Fast Charging Cargador Coche Elctrico Estacion De Carga PARA Autos CE
Fast Charging Cargador Coche Elctrico Estacion De Carga PARA Autos CE
Fast Charging Cargador Coche Elctrico Estacion De Carga PARA Autos CE

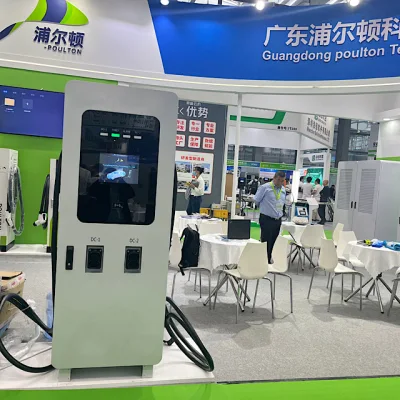

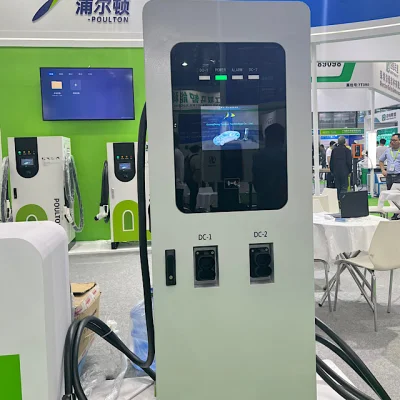

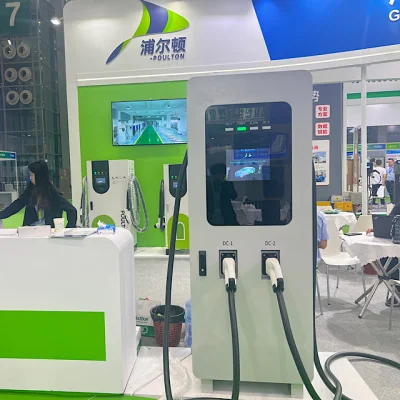

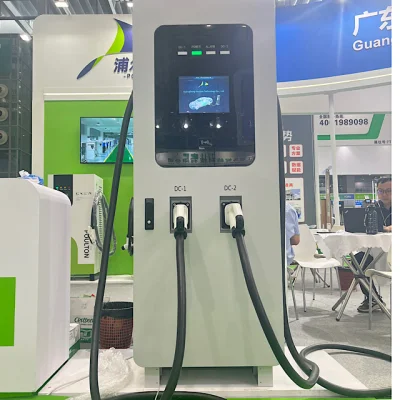

EXhibition
Fast Charging Cargador Coche Elctrico Estacion De Carga PARA Autos CE
Fast Charging Cargador Coche Elctrico Estacion De Carga PARA Autos CE
Fast Charging Cargador Coche Elctrico Estacion De Carga PARA Autos CE

Fast Charging Cargador Coche Elctrico Estacion De Carga PARA Autos CE
Fast Charging Cargador Coche Elctrico Estacion De Carga PARA Autos CE
Fast Charging Cargador Coche Elctrico Estacion De Carga PARA Autos CE

Fast Charging Cargador Coche Elctrico Estacion De Carga PARA Autos CE
Fast Charging Cargador Coche Elctrico Estacion De Carga PARA Autos CE
Fast Charging Cargador Coche Elctrico Estacion De Carga PARA Autos CE

Our Project
Fast Charging Cargador Coche Elctrico Estacion De Carga PARA Autos CE
Fast Charging Cargador Coche Elctrico Estacion De Carga PARA Autos CE
Fast Charging Cargador Coche Elctrico Estacion De Carga PARA Autos CE
