Fangpusun 12V 24V 36V 48V 60V Solar Battery LCD MPPT Controller Charger 60A with Ce RoHS

Get reliable solar battery charging with Fangpusun 60A MPPT controller. Ce RoHS certified, our factory delivers quality at 12V 24V 36V 48V 60V.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
MPPT60
Charging Regulation
Five Stages: Bulk, Absorption, Float, Silent and E
Remote Display and Controller
Optional Mate or Mate2 with RS232 Serial Communica
Operating Temperature Range
Minimum -40° to Maximum 60° C
Voltage Regulation Set Points
10 to 80 VDC User Adjustable with Password Protect
Environmental Rating
Indoor Type 1
Dimensions
40 X 14 X 10 Cm
Rated Voltage
12V/24V/36V/48V/60V

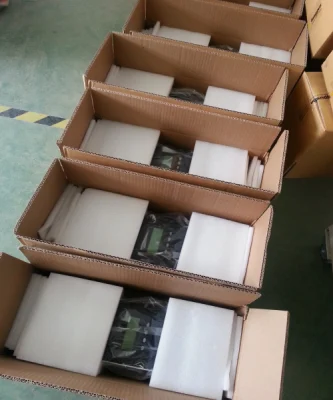

Transport Package
Standard Export Carton Packing
Specification
CE, RoHs, SGS, ISO9001
Trademark
Fangpusun
Origin
Zhejiang, China
HS Code
8537109090
Production Capacity
50000PCS Per Year

Product Description

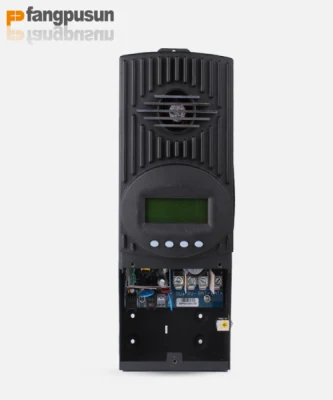

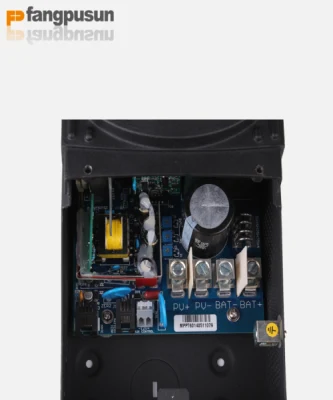

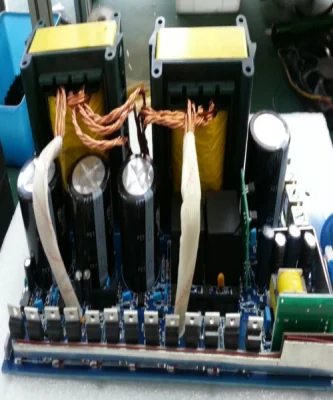

Fangpusun 12V 24V 36V 48V 60V Solar Battery LCD MPPT Controller Charger 60A with Ce RoHS






Fangpusun 12V 24V 36V 48V 60V Solar Battery LCD MPPT Controller Charger 60A with Ce RoHS


Fangpusun 12V 24V 36V 48V 60V Solar Battery LCD MPPT Controller Charger 60A with Ce RoHS


Nominal Battery Voltages

12, 24, 36, 48, or 60 VDC (Single model - selectable via field programming at start-up)

Maximum Output Current

60 amps @ 104° F (40°C) with adjustable current limit

Maximum Solar Array STC Nameplate

12 VDC systems 900 Watts / 24 VDC systems 1800 Watts / 48 VDC systems 3600 Watts / 60 VDC Systems 4500 Watts

NEC Recommended Solar Array STC Nameplate

12 VDC systems 750 Watts / 24 VDC systems 1500 Watts / 48 VDC systems 3000 Watts / 60 VDC Systems 3750 Watts

PV Open Circuit Voltage (VOC)

150 VDC absolute maximum coldest conditions / 145 VDC start-up and operating maximum

Standby Power Consumption

Less than 1 Watt typical

Power Conversion Efficiency

98.1% @ 60Amps in at 48 VDC System voltage - Typical



Five Stages: Bulk, Absorption, Float, Silent and Equalization

Voltage Regulation Set points

10 to 80 VDC user adjustable with password protection

Equalization Charging

Programmable Voltage Setpoint and Duration - Automatic Termination when completed

Battery Temperature Compensation

Automatic with optional RTS installed / 5.0 mV per °C per 2V battery cell

Voltage Step-Down Capability

Can charge a lower voltage battery from a higher voltage PV array - Max 150 VDC input

Programmable Auxilary Control Output

12 VDC output signal which can be programmed for different control applications
(Maximum of 0.2 amps DC)

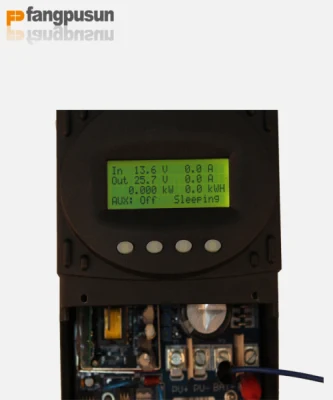

Status Display

3.1" (8 cm) backlit LCD screen - 4 lines with 80 alphanumeric characters total

Remote Display and Controller

Optional Mate or Mate2 with RS232 Serial Communications Port

Network Cabeling

Proprietary network system using RJ 45 Modular Connectors with CAT 5e Cable (8 wires)

Data Logging

Last 128 days of Operation - Amp Hours, Watt Hours, Time in Float , Peak Watts, Amps, Solar Array Voltage, Max Battery Voltage Min Battery Voltage and Absorb for each day along with total Accumulated Amp Hours, and kW Hours of production

Hydro Turbine Applications

Consult factory for approved Turbines

Positive Ground Applications

Requires two Pole Breakers for switching both positive and Negative Conductors on both Solar Array and Battery Connections (HUB-4 and HUB-10 can not be used for use in positive ground applications)

Operating Temperature Range

Minimum -40° to maximum 60° C
(Power capacity of the controller is automatically derated when operated above 40° C)

Environmental Rating

Indoor Type 1

Conduit Knockouts

One 1" (35mm)on the back; One 1" (35mm) on the left side; Two 1" (35mm) on the bottom

Weight - Unit

11.65 lbs (6.0 kg)

            - Shipping

13.64 lbs (6.7 kg)

Dimensions - Unit

13.5 x 5.75 x 4" (40 x 14 x 10 cm)

                   - Shipping

18 x 11 x 8" (46 x 30 x 20 cm)

Options

Remote Temperature Sensor (RTS), HUB 4,
HUB 10, MATE, MATE 2

Menu Languages

English & Spanis



Q1.  What's Certificates you have?

   A: CE, ROHS, ISO9001, SGS certificates

Q2.  How many years warranty?

   A: All of products warranty 2 years. If have any quality problem, could return to us exchange new one or repair ir free. Use our company DHL account, free freight.

Q3.  What's the payment term?

   A: 100% T/T (large order, accept 30% T/T prepay 70% balance before shipping), Western Union, Paypal.

Q4.  How's the delivery time?

   A: Usually 2 hours after receive full payment. OEM order need 10-15 days.

Q6.  What's Government tender you get?

  A: FP-S-300W and FP-S-600W inverter get Indonesia tender, Solarix MPPT2010 controller get Bulgaria tender, PR2020 solar controller get Ecuador tender, PR3030 solar charge controller get Mexico tender and so on.

Q7.  Would you supply OEM/ ODM service?

   A: Yes! Our company supply OEM service.

     I.  MOQ 200Pcs per model, blank box packing, standard export carton.

     II.  MOQ 500Pcs per model, customer's design color box packing, standard export carton.

Q8.  How to distinguish solar charge controller with MPPT function?

   A: input voltage more than output voltage, charging current less than loading current.

Q9.  Why your unit price is higher than other supplier?

   A: Alto and Audi are cars, also four wheels cars. Why Audi price higher than Alto? The same token, our Fangpusun solar charge controller unit price higher than other suppliers, so products quality higher than other supplier. We believe in the right balance between quality and price, we offer competitively priced systems while maintaining our high standard of quality.

Q10.  What type of battery to connect Fangpusun solar charge controller?

  A: GEL and AGM battery are all available. Solsum E, Solsum F, Solarix PRS, SOlarix MPPT these these 4 series also could setting for Li battery.

Q11.  Engineering expertise

  A: In Fangpusun we know that every project is different. Our solar experts with 10 years experience. will conduct a solar site analysis using the latest tools in the industry to ensure the maximum performance of your solar system. Give you the best suggestion, recommend suitable model for you.

Q12.  What about your sale service?

  A: Developing long-lasting relationships with our customers is of utmost importance to us. We are committed to providing you with excellent all-round services, before, during and after the installation of your renewable energy system.
