Factory Price EV Charger Modbus 4G Oprional Green Science Stable Smartcar Battery Charger Commercial Electric Vehicle Charging Station 22kw

Get the best Factory Price EV Charger Modbus 4G Optional Green Science Stable Smartcar Battery Charger Commercial Electric Vehicle Charging Station 22kw. We are a reliable factory for all your electric vehicle charging needs.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
VEC-22KW-OS Untethered version
Customization
Yes
Technical Exchange
Face to Face
Service
OEM & ODM
Project
Pre-Evaluation with Client
Delivery
Fast and Efficiency
Type
Fast EV Charging Station
Certification
CCC, CE, TUV, RoHS
Warranty
24 Months
Transport Package
by Sea, by Air
Specification
390*255*135mm
Trademark
OEM
Origin
Zhejiang
HS Code
8504409999
Production Capacity
3000sets/Month

Product Description

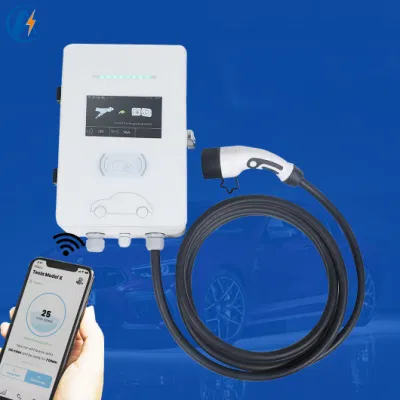

Tethered Version OCPP 1.6J EV Charging Station with CE 32A 7.2kw/22KW EV Charger
Product Specification
Mode: A Certificate: CE
Current: 32A 1-Phase/ 3-Phase
Power: 7.2KW/22KW
Size: 390*255*135mm

Key Features
Model: OCPP EV Charger - 7.2kW/22KW Tethered Version EV Charger
Charge to Run:55kM/Hour
Protocal:OCPP 1.6J
Data communication: Ethernet (standard configuration),
                                     WIFI or 4G(optional)
Data commication: Ethernet,WIFI or 4G
Access control:RFID, Mobile APP(optional)
Energy Meter:MID CE ,SGS approved
Input voltage:150-250V
Frequency:50/60HZ
Charging power:7.2kW/22KW
Charging interface:Socket
Protection level:IP54
Approvals:CE
Factory Price EV Charger Modbus 4G Oprional Green Science Stable Smartcar Battery Charger Commercial Electric Vehicle Charging Station 22kw Factory Price EV Charger Modbus 4G Oprional Green Science Stable Smartcar Battery Charger Commercial Electric Vehicle Charging Station 22kw Factory Price EV Charger Modbus 4G Oprional Green Science Stable Smartcar Battery Charger Commercial Electric Vehicle Charging Station 22kw
EV Smart OCPP
Model/PN 1-phase   3-phase
Application Commercial
Voltage(Vac) 1-phase 230V±20% 3-phase 400V±20%
Frequency(Hz) 50/60Hz
Power Output 7KW,32A 22KW, 32A
Current(rms) 16A,32A,

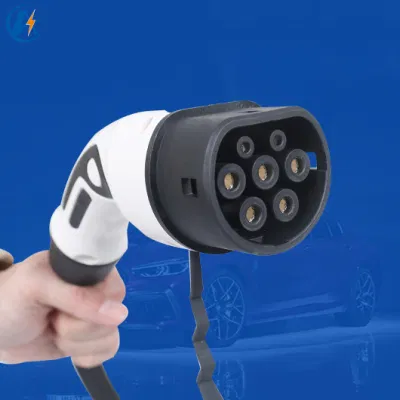

Charging Connector SAE J1772 Type 1,Type-2 connector or Type-2 socket
Charging Cable Length 16ft.(5m)
RCD Type-B RCD
Energy Meter CE Certified meter

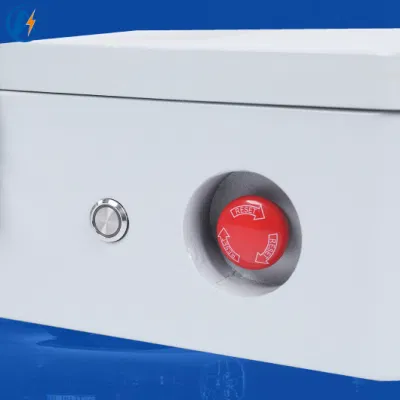

Buttons Emergency stop,phisical adjustment
Indications Standby(Green),Charging(Flashing Green),Fault(Red),Waring(Flash Red)
Wi-Fi Optional
4G Optional
RFID ISO 1443 A/B·ISO 15693
Display 7"LCD
Status Indicators Standby (slow flashing green), charging (fast flashing green),
fault (slow flashing red), warning (fast flashing red)
Output Protection Power output is terminated upon detection of charging
connector plug-out
Electrical Protection Over current, short circuit, over voltage, under voltage,
ground fault, lightning surge, over temperature protection
Data Pretocol OCPP1.6J
Operation Temp. ‐30ºC~50ºC/‐22ºF~122ºF
Storage Temp. ‐40ºC~70ºC/‐40ºF~158ºF
Working Humidity 5%~95% without condensation

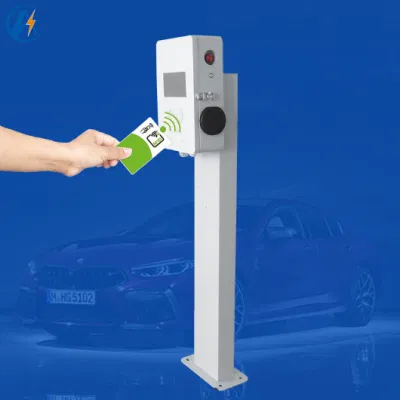

Mounting Type Wall(default)/Pole
IP Performance IP54
Dimension(H×W×D,inch) 395*260*125mm
Web Portal Management Yes
Mobile App ios/Android
Weight(kg) 6.6kg socket version  10.7kg cable version
Factory Price EV Charger Modbus 4G Oprional Green Science Stable Smartcar Battery Charger Commercial Electric Vehicle Charging Station 22kw Factory Price EV Charger Modbus 4G Oprional Green Science Stable Smartcar Battery Charger Commercial Electric Vehicle Charging Station 22kw Factory Price EV Charger Modbus 4G Oprional Green Science Stable Smartcar Battery Charger Commercial Electric Vehicle Charging Station 22kw Factory Price EV Charger Modbus 4G Oprional Green Science Stable Smartcar Battery Charger Commercial Electric Vehicle Charging Station 22kw Factory Price EV Charger Modbus 4G Oprional Green Science Stable Smartcar Battery Charger Commercial Electric Vehicle Charging Station 22kw Factory Price EV Charger Modbus 4G Oprional Green Science Stable Smartcar Battery Charger Commercial Electric Vehicle Charging Station 22kw Factory Price EV Charger Modbus 4G Oprional Green Science Stable Smartcar Battery Charger Commercial Electric Vehicle Charging Station 22kw
