Basic Info.
Model NO.
uXcel Ultra 220V500A
Size
800*800*2000
Certification
RoHS, TUV, CE, Toby
Socket Type
Flexible/ Standard
Recyclable
Recyclable
Transport Package
Cartonbox or Wooden Pallets
Specification
Output voltage 33-330V
Trademark
EverExceed
Origin
Shenzhen, China
HS Code
8504409999
Production Capacity
10000
Product Description

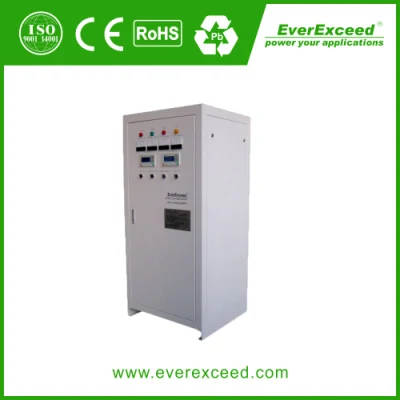

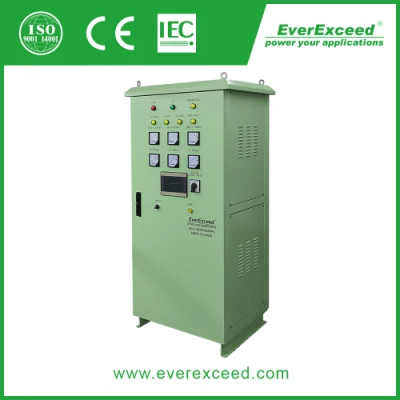

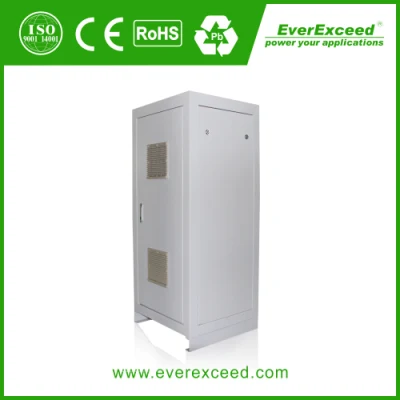

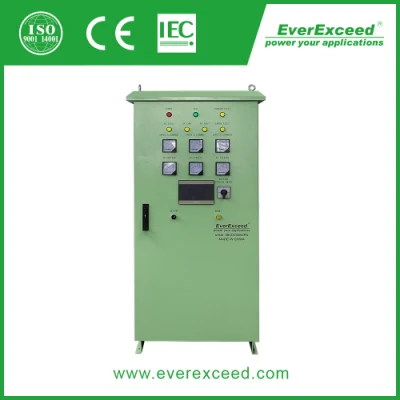

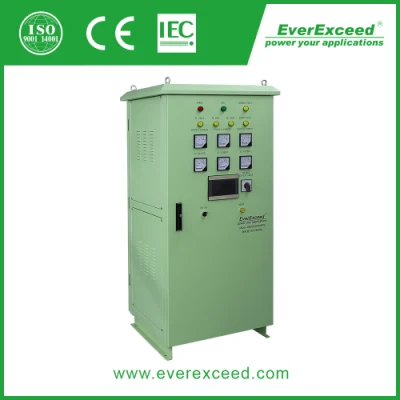

Everexceed 220V500A Uxcel Ultra Series Industrial Battery Charger with Thyristor Rectifier/ DC UPS
Details:
EverExceed offers highly reliable and rugged Thyristor Industrial Battery Charger solutions for all DC Power Supply applications. The EverExceed uXcel Ultra redundancy charger (DC UPS) is a new type charger for battery. This charging system is made by two independent charging loops in parallel; it can carry out the redundancy charge function. This system is controlled by digital intelligent with multi charge mode, simple operation and reliability; there is no phase sequence requirement. The transformer is made by high strength paint copper; it can achieve H grade high temperature resistance and isolation, the power units are made by aluminum pole and high-power disc type thyristor units with high performance and reliability. Available in single and three phase up to 220kW, and using ultra rugged phase controlled technologies, this series is ideal for all industrial applications including substation battery systems and DC UPS.
Features:
Application:
Details:
EverExceed offers highly reliable and rugged Thyristor Industrial Battery Charger solutions for all DC Power Supply applications. The EverExceed uXcel Ultra redundancy charger (DC UPS) is a new type charger for battery. This charging system is made by two independent charging loops in parallel; it can carry out the redundancy charge function. This system is controlled by digital intelligent with multi charge mode, simple operation and reliability; there is no phase sequence requirement. The transformer is made by high strength paint copper; it can achieve H grade high temperature resistance and isolation, the power units are made by aluminum pole and high-power disc type thyristor units with high performance and reliability. Available in single and three phase up to 220kW, and using ultra rugged phase controlled technologies, this series is ideal for all industrial applications including substation battery systems and DC UPS.
Features:
- Redundant Operation: The uXcel ultra redundant charging system is structured by two independent charging loop in parallel. It can carry out the redundancy charge function without interrupting each other. Both chargers operate by sharing load respectively between them which makes the life cycle long. Redundant charger ensures the continuous back up in case of emergency.
- High Reliability and High MTBF: Robust and unique design allows the charger to continuously operate at full load at a 40°C ambient temperature. Natural ventilation and cooling are available on most of the range. Precise adjustable temperature compensation.
- Versatile constant voltage and constant current charging modes.
- Enhanced Robustness - Mechanical design to withstand vertical and horizontal acceleration stress up to 0.5g as standard.
- Leading Technology - Phase-controlled Thyristor technology. The embedded micro-computer controller processes signals 10 times faster than standard analog methods.
- Flexible maintenance and Reduced MTTR - The design make it easy for front-access to all vital modules of the charger.
- Long design life up to 20+ years - system design life up to 20+ years in continuous operation under the condition of appropriate maintenance.
- Isolation transformer.
- Multilingual digital graphic display with embedded event log.
- Full compatibility with lead-acid and nickel- cadmium batteries, sealed or vented.
- Large LCD display- User-friendly operation with large LCD display, touch screen optional with the choices of 8 languages made to order.
- Smart Communication and Remote Monitoring- Through isolated RS232, RS485, and Ethernet. Full data logging.
Application:
- Oil & gas offshore & onshore
- Refining petro chemicals
- Telecom
- Transportation (Rail & Aeronautic)
- Power generation, transmission & distribution
