Basic Info.
Model NO.
EP-48100-15
Size
Medium
Certificates
RoHS / CE/ Un38.3 / IEC 62619
Design Life
15 Years
Battery Size
483 X 400 X 266mm
Battery Voltage
48V
Color
Black
Battery Type
Ep-48100-15
Nominal Voltage
48V
Discharge Rate
High Discharge Rate
Shape
Square Battery
Electrolyte
Li-ion
Installation
Packaged
Usage
Solar
Communication Port
RS485, RS232, Can
BMS
Intelligent Integrated Battery Manager System
Cycle Life
Over 4000 Cycle at 80% Dod
Transport Package
Carton Box or Wooden Pallets
Specification
483x325x133mm
Trademark
EverExceed
Origin
Shenzhen, China
HS Code
8507802000
Production Capacity
3500000kah/Year
Packaging & Delivery
Package Size
48.30cm * 42.00cm * 22.20cm
Package Gross Weight
48.000kg
Product Description

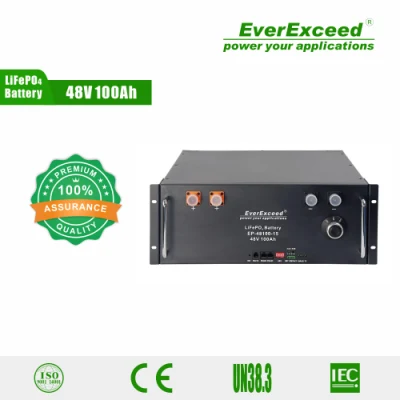

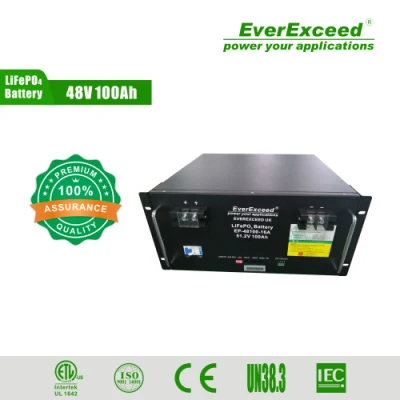

Everexceed 6000+ Cycle Times 48V 100ah Rechargeable LiFePO4 Lithium Ion Solar Battery
EverExceed solar LiFePO4 battery system is specially optimized for PV application, mainly used for the energy store battery of Photovoltaic system; its advance intelligent lithium battery management technology to ensure the intelligent automatic management. With "Energy transfer" balanced patented technology, EverExceed lithium iron phosphate provide high efficiency balanced and prolong system operate life. Based on its own technical features as high capacity, high voltage and free of pollution, the lithium iron battery is widely concerned by people with a rapid development stance. It will be the first choice for the high requirement energy store battery solution.
 |  |
| High cycle life and deep cycle ability | High reliability |
| High cycle times and longer service life of >6000 cycles @80% DOD ; Superior DOD (100% over lead acid bateries; | Excellent high temperature performance, ultra low life decay rate in operating when harsh environment; Ultra low self discharge rate <1.5%/month; |
 |  |
| More usable capacity | User friendly bms user |
| LFP provides 100% of usable energy, so that you can discharge the battery entirely without causing downtime of your solar site, saving cost of diesel generator fuel. | User friendly BMS monitors and communicates regarding the SOC, SOH, protects the system from short-circuit, high and low discharging and charging, high temperature etc. |
 |  |
| Faster charging | Easy install ation |
| Charges much faster than sealed lead acid batteries, giving you access to reliable power quicker to continue your operation. Can fully charge within 2-3 hours which is impossible for VRLA. | EverExceed LFP batteries are designed to be drop-in replacement for sealed lead acid batteries without additional labor cost. |
 |  |
| High discharge rate | Superior deep cycling ability |
| Ability to deeply discharge the battery at a high rate of discharge while maintaining a high energy capacity. | Excellent PSOC (partial stage of charge) cycle life, which is the best ideal choice for solar energy storage; Optimized for photovoltaic applications, using high temperature and high cycle life active materials; |
| Nominal Characteristics | |||||||
| Battery Model | EP-48100(15S) | Battery Model | EP-48100 (16S) | ||||
| Nominal Voltage | 48 V | Nominal Voltage | 51.2V | ||||
| Nominal Capacity | 100 Ah | Nominal Capacity | 100 Ah | ||||
| Nominal Energy | 4800 Wh | Nominal Energy | 5120 Wh | ||||
| Electrical Characteristics | |||||||
| Recommended Charging Voltage | 54-54.7 V | Recommended Charging Voltage | 57.6-58.4 V | ||||
| Floating Charging Voltage | 51.5-52 V | Floating Charging Voltage | 55-55.5 V | ||||
| Recommended Charging Current | 50 A | Recommended Charging Current | 50 A | ||||
| Maximum Disharging Current | 100 A | Maximum Disharging Current | 100 A | ||||
| Discharging Cut-off Voltage | 40.5 V | Discharging Cut-off Voltage | 43.2 V | ||||
| Working Voltage Range | 40.5-54.7 V | Working Voltage Range | 43.2-58.4 V | ||||
| Operating Conditions | |||||||
| Cycle Life | ≥6000 Cycles@80% DOD@25ºC | Cycle Life | ≥6000 Cycles@80% DOD@25ºC | ||||
| Roundtrip Efficiency | ≥98% | Roundtrip Efficiency | ≥98% | ||||
| Operating Charge Temperature | 0ºC to +50ºC | Operating Charge Temperature | 0ºC to +50ºC | ||||
| Operating Discharge Temperature | -20ºC to +60ºC | Operating Discharge Temperature | -20ºC to +60ºC | ||||
| Storage Temperature | -20ºC to +60ºC | Storage Temperature | -20ºC to +60ºC | ||||
| Mechanical Characteristics | |||||||
| Length x Width x Height | 483 x 420 x 222 mm | Length x Width x Height | 483 x 420x 222 mm | ||||
| Weight | 45 Kg | Weight | 48 Kg | ||||
| Terminal | M6 | Terminal | M6 | ||||
- Solar energy store
- Wind energy store
 |  |  |
 |  |  |
| Why us? | |
| Reasons you would prefer to buy this power supply products from us | |
| Service | RMA(24/7 pre-sales and after-sales support),OEM,ODM |
| Quality | Highly reliable quality guaranteed by Varta production equipment, German technology, European raw materials |
| Warranty | Standard 2 years, 5+ years upon request |
| Price | Competitive factory Price! Cut down the cost you paid to the middle man |
| Professional | Founded in 1985, 30+ years battery manufacturing experience |
| Production capacity | 3,500,000KVAh per year |
| Reliable | Two R&D centers; Three major production bases; Global 500+ dealers/ agents; Global 100+ offices; Business coverage 65+ countries around the world |
| Shipping & Payment | |
| Payment | T/T, L/C , Cash, Western Union etc.(flexible payment term can be discussed) |
| Port | Normally Shenzhen China (any sea port upon request) |
| Delivery | By sea/air/trian/truck transportation |
| Delivery time | Normally 4 weeks ex factory excluding shipping. |
| Packing: | Pack in carton box then pallet (wooden box) |
