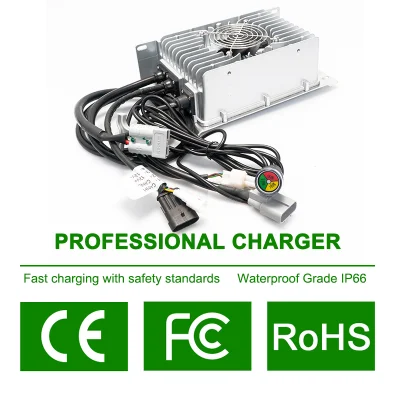

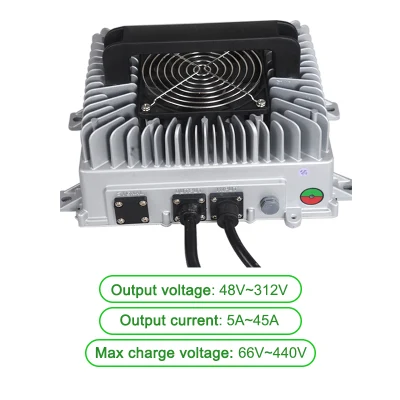

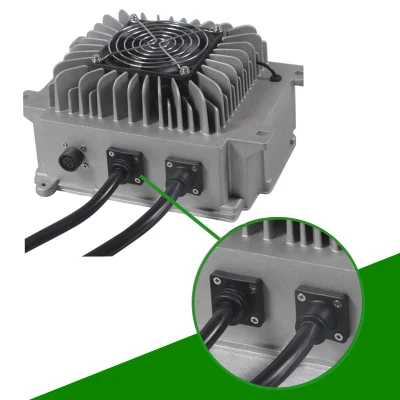

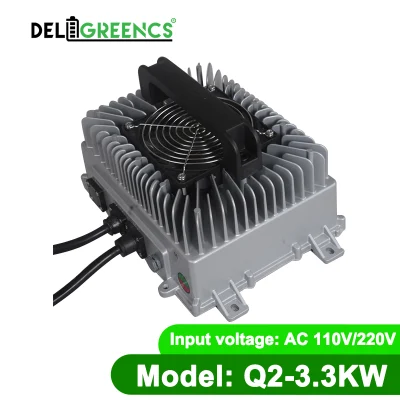

Deligreen 3.3kw 3300W Quick Charge Obc Golf Carts Onboard LiFePO4 Battery Smart Charger 48V 25A for EV

Get the Deligreen 3.3kw 3300W Quick Charge Obc Golf Carts Onboard LiFePO4 Battery Smart Charger 48V 25A for EV from our factory. Quality and efficiency guaranteed.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Contact Us
Overview

Basic Info.

Interface
Type1 Type2
Color
Silver
Input Voltage
265-650VAC
Waterproof
IP67
Efficiency
94%
with Can Bus
or Enable
on off Board
with 12V Inside Power Supply
Obc
Pfc
with Can
Canbus / Enable
Output Power
1.8kw 2 Kw 3.3kw 6.6kw 9.9kw 13kw
Voltage Platform
48V 72V 96V 144V 312V
Warranty
3 Years
Transport Package
Bubble Bag+Outer Carton
Specification
150*240*156MM
Trademark
Deligreen charger
Origin
Zhejiang, China
Production Capacity
200 Piece/Pieces Per Month

Product Description

Deligreen Q2 series OBC EV battery charger can offer you :


1. Enable or with canbus (125K 250K 500K are all available )
2. With free cables (AC,DC & Signal port ) to save your money and time
3. If you want to charge by charging gun , we can add CC CP signal with free
4. Warranty : 3 years
5.Output power : 1.5KW / 2KW / 3.3KW / 6.6KW /9.9KW /13KW


Deligreen 3.3kw 3300W Quick Charge Obc Golf Carts Onboard LiFePO4 Battery Smart Charger 48V 25A for EV
Output Reverse Connect Protection 3.3KW High Efficiency PFC Battery Charger

Product Name
3.3kw charger Deligreen On Board Level IP67 3.3kw 6.6KW 9.9KW 13KW OBC EV Solar Electric Car Battery Charger
Model:
1.5kw 1.8 kw 3.3kw 6.6kw 9.9kw 13kw
Waterproof
IP66 / IP67
Input voltage
90v-265v AC
With canbus or not
With can or enable are all available
Battery Type
Lifepo4 ,ncm , LTO , lead acid battery are all available
Parts with charger
Input / Output connector and cables , Indicator, Anti-walking line, Auxiliary power 12V (need marked),Temperature control (only for lead acid battery)
With CC-CP
yes , depends on your requirements
Package
Standard export caton

Deligreen 3.3kw 3300W Quick Charge Obc Golf Carts Onboard LiFePO4 Battery Smart Charger 48V 25A for EVDeligreen 3.3kw 3300W Quick Charge Obc Golf Carts Onboard LiFePO4 Battery Smart Charger 48V 25A for EVDeligreen 3.3kw 3300W Quick Charge Obc Golf Carts Onboard LiFePO4 Battery Smart Charger 48V 25A for EVDeligreen 3.3kw 3300W Quick Charge Obc Golf Carts Onboard LiFePO4 Battery Smart Charger 48V 25A for EVDeligreen 3.3kw 3300W Quick Charge Obc Golf Carts Onboard LiFePO4 Battery Smart Charger 48V 25A for EVDeligreen 3.3kw 3300W Quick Charge Obc Golf Carts Onboard LiFePO4 Battery Smart Charger 48V 25A for EV

Buyer attention: In order to confirm if our charger is suitable for your battery pack, please send the following information to us by email:

(1) battery type:

(2) the number of cells in series:

(3) the capacity of the battery pack(AH):

(4) The maximum charge voltage:

(5) AC input volt:

(6) with CAN or enable:

(7) if with CAN, tell us the BMS brand: Our charger can work with EMUS, Orion, and many other BMS made in China like Ligoo BMS.

AC cable and DC cable: matching socket without AC/DC cable.

6 Battery over heat protection: Yes

Deligreen 3.3kw 3300W Quick Charge Obc Golf Carts Onboard LiFePO4 Battery Smart Charger 48V 25A for EVDeligreen 3.3kw 3300W Quick Charge Obc Golf Carts Onboard LiFePO4 Battery Smart Charger 48V 25A for EVDeligreen 3.3kw 3300W Quick Charge Obc Golf Carts Onboard LiFePO4 Battery Smart Charger 48V 25A for EVDeligreen 3.3kw 3300W Quick Charge Obc Golf Carts Onboard LiFePO4 Battery Smart Charger 48V 25A for EVDeligreen 3.3kw 3300W Quick Charge Obc Golf Carts Onboard LiFePO4 Battery Smart Charger 48V 25A for EV


Deligreen DLG charger--variable frequency pulse charger series can be used for lead-acid batteries ,lithium batteries, Ni-mh battery, ni-cad battery and other energy storage battery charging.
Apply to electric vehicles:sightseeing car,club car, golf cart, patrol car, electric cleaning equipment, sweeper, lawn mower;
Material handling equipment: forklift,lift truck, pallet truck, stacking truck,lift; Electric boats,ATV,Kart,Vans,cars and buses;
Special categories: Power sector, Marine, aerospace, military, etc.



Deligreen 3.3kw 3300W Quick Charge Obc Golf Carts Onboard LiFePO4 Battery Smart Charger 48V 25A for EVDeligreen 3.3kw 3300W Quick Charge Obc Golf Carts Onboard LiFePO4 Battery Smart Charger 48V 25A for EV
