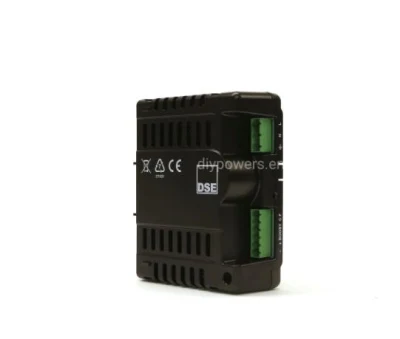

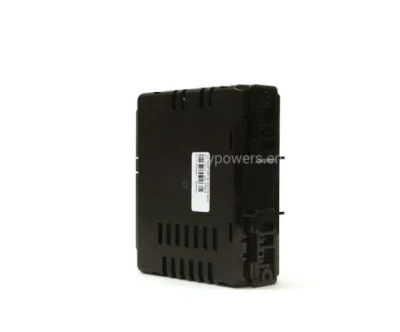

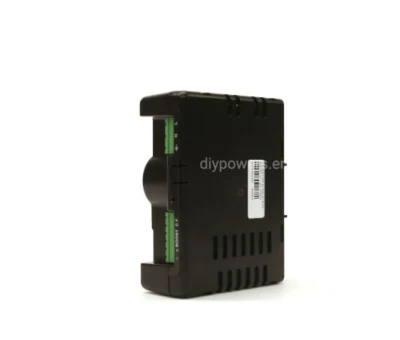

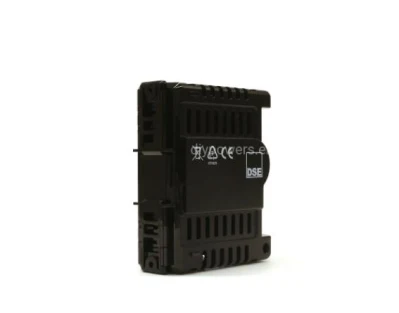

DSE9702
Vertical 12 volt 5 amp Battery Charger
The DSE9702 12 volt 5 amp switch-mode battery charger keeps batteries charged to their maximum capacity at all times. It is designed for permanent battery connection and can be DIN rail or chassis mounted. The charger includes a normal or overload condition LED indicator on the front to assist with status identification. The charger operates during cranking and running and accepts multiple AC voltage connections.
| DIN RAIL MOUNTED |
| 48 mm x 133 mm x 110 mm (1.9" x 5.2" x 4.3") |
| SCREW MOUNTED |
| 48 mm x 153 mm x 112 mm (1.9" x 6.0" x 4.4") |
| WEIGHT |
| 0.4kg |
| PRODUCT VARIANTS |
| 9702-01 - Vertical 12 Volt 5 Amp Battery Charger (90-305v 50/60Hz) |
SPECIFICATION
AC SUPPLY
FREQUENCY RANGE
45 Hz to 65 Hz
VOLTAGE RANGE
90 V to 305 V (L-N)
DC OUTPUT
5 A DC 12 V DC
RIPPLE AND NOISE
<1%
EFFICIENCY
>80%
REGULATION
LINE
<0.001% Vo
1% Vo
PROTECTIONS
Short Circuit
Over Voltage
Over Current
Reverse Polarity
ENVIRONMENTAL TESTING STANDARDS
ELECTRO-MAGNETIC COMPATIBILITY
BS EN 61000-6-2
EMC Generic Immunity Standard for the Industrial Environment.
BS EN 61000-6-4
EMC Generic Emission Standard for the Industrial Environment.
TEMPERATURE
BS EN 60068-2-1
Ab/Ae Cold Test -30°C.
BS EN 60068-2-2
Bb/Be Dry Heat +70°C.
VIBRATION
BS EN 60068-2-6
Ten sweeps in each of three major axes.
5 Hz to 8 Hz @ +/-7.5 mm, 8 Hz to 500 Hz @ 2 gn.
HUMIDITY
BS EN 60068-2-30
Db Damp Heat Cyclic 20/55° C @ 95% RH 48 Hours.
BS EN 60068-2-78
Cab Damp Heat Static 40° C @ 93% RH 48 Hours.
SHOCK
BS EN 60068-2-27
Three shocks in each of three major axes 15 gn in 11 ms.
