Basic Info.
Model NO.
ELT512100LV
Size
Large
Voltage
48V
Capacity
100ah
Energy
5kwh,10kwh,15kwh,20kwh,30kwh,40kwh,50kwh,60kwh,100
Certification
CE/RoHS/Un38.3/MSDS
Self Discharge Rate
<3%
Weight
43 Kg
Warranty
5 Years
Cycle Life
6000 Times
Display Screen
Yes
Parallel Connection
Available
Features
Stackable
Application 1
Home Energy Storage, Residential Energy Storage
Application 2
Commercial Energy Storage
Application 3
Industrial Energy Storage
Application 4
Solar Energy Storage, Back up Power
Transport Package
Carton Box
Specification
595*400*181.5
Trademark
Elite/OEM
Origin
Guangdong, China,
HS Code
8507600090
Production Capacity
100000PCS/Month
Packaging & Delivery
Package Size
65.00cm * 50.00cm * 30.00cm
Package Gross Weight
50.000kg
Product Description
48V 100Ah 5KWh Modular Stackable ESS Battery
Product Feature
1. Performs 6000+ cycles;
2. Flexible connection and 4 different installation ways by option (Side stackable, flat stackable, rack mounted or wall mounted);
3. Support max. 30pcs in parallel to increase capacity up to 150kWh;
4. Wide compatible with main brand inverters, BMS with multiple communication protocols;
5. Widely applicable to residential, commercial and industrial energy storage systems;
2. Flexible connection and 4 different installation ways by option (Side stackable, flat stackable, rack mounted or wall mounted);
3. Support max. 30pcs in parallel to increase capacity up to 150kWh;
4. Wide compatible with main brand inverters, BMS with multiple communication protocols;
5. Widely applicable to residential, commercial and industrial energy storage systems;
6. With Bluetooth function, battery real-state can be monitored on Phone Bluetooth App;
7. Excellent high temperature and safety performance, with built-in smart BMS to carry on protection;
8. With CE BIS, MSDS, UN38.3 approved, etc.
Product Parameteres

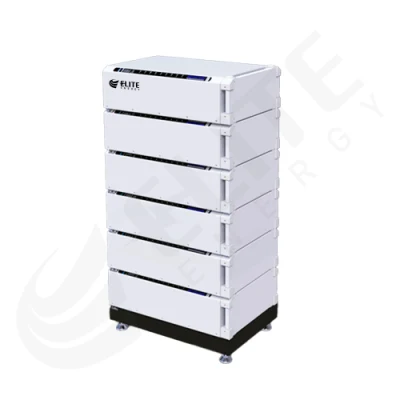

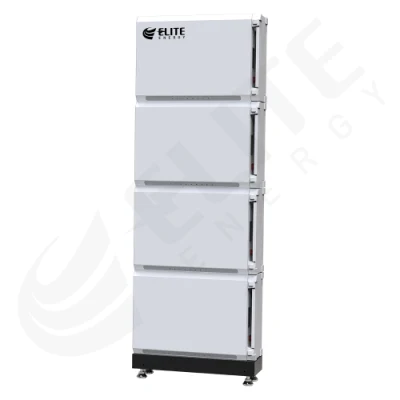

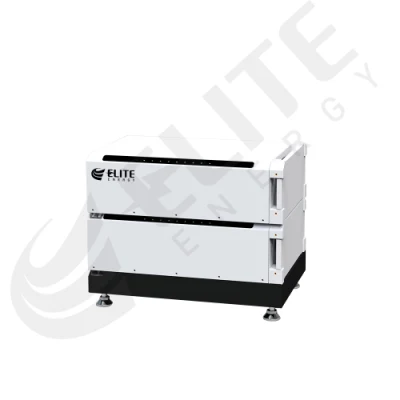

Product Pictures
| Electrical Characteristics | Model | ELT51.2100LV | |||
| Energy | 5120WH | ||||
| Battery Type | LiFePO4 Battery | ||||
| Internal Resistance | ≤10mΩ | ||||
| Cycle Life | >6000 cycles@1C 100% DOD | ||||
| Months Self Discharge | <3% | ||||
| Efficiency of Charge | 100%@0.5C | ||||
| Efficiency of Discharge | 96-99% @1C | ||||
| Standard Charge | Charge Cut-off Voltage | 58.4±0.2V | |||
| Charge Mode | CC/CV | ||||
| Recommend Charge Current | 20-50A | ||||
| Max. Charge Current | 100A | ||||
| Standard Discharge | Max. Continuous Discharge Current | 100A | |||
| Max. Pulse Current | 150A(5S) | ||||
| Discharge Cut-off Voltage | 40V | ||||
| Environmental | Charge Temperature | 0ºC to 45ºC(32F to 113F)@60±25% Relative Humidity | |||
| Discharge Temperature | -20ºC to 60ºC(-4F to 140F)@60±25% Relative Humidity | ||||
| Storage Temperature | 0ºC to 40ºC(32F to 104F)@60±25% Relative Humidity | ||||
| Water Dust Resistance | IP54 | ||||
| Mechanical | Cell&Method | 16S | |||
| Package | Metal Case | ||||
| Dimensions(in./mm.) | 595*400*181.5 | ||||
| Weight(lbs./kg.) | 43kg | ||||
| Others | Certification | CE, MSDS, UN38.3... ... | |||
| Warranty | Standard 5+ years | ||||
| OEM | Yes | ||||

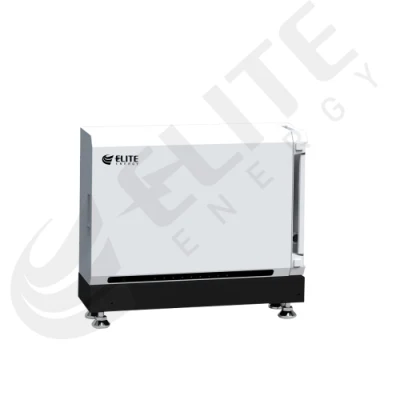

Product Pictures
More Products
Company Introduction
Elite is a leading lithium battery manufacturer in China, which is committed to provide customers with safe and durable battery products for EV power battery, portable energy storage, household energy storage, micro power grid, telecom station power supply, UPS, solar street lights, harvesters, AGV, forklift, electric tricycles, electric wheelchairs, etc. Elite professional experienced technicians and advanced equipments provide customers with high-quality batteries and professional customized battery solutions. Elite has passed ISO 9001 ISO 14001 ISO45001 certification, Elite products have been certified with CE, UN38.3, MSDS, etc.
Advantage
Workshop
Certifications
Packaging & Shipping
With high quality pearl wool, UN cartons / Plywood, plastic pallet.
Standard batteries lead time: Samples: 15-20 days, Bulk order: 25-30 days.
Customized batteries lead time: Samples: 30-40 days, Bulk order: 30-40 days.
Shipment:By air, by sea, by express, by railway, etc.
With high quality pearl wool, UN cartons / Plywood, plastic pallet.
Standard batteries lead time: Samples: 15-20 days, Bulk order: 25-30 days.
Customized batteries lead time: Samples: 30-40 days, Bulk order: 30-40 days.
Shipment:By air, by sea, by express, by railway, etc.
F&Q
1. What is your MOQ (Minimum Order Quantity)?
Sample order for testing is available. You can choose to place just one piece for testing.
2. What is the warranty term of your product?
Elite standard warranty term is 3 years. Besides, warranty is extending available according to customers' requirements.
3. What about the lead time of bulk order?
It depends on the order quantity. Normally, the lead time is around 30 days.
4. What shipping method can I choose? How about the shipping time?
By Express (3-15 days): suitable for urgent time or small quantity;
By Sea (25-45 days): suitable for bulk order.
By Railway (15-35 days): Suitable for bulk order.
Our sales person will recommend the most suitable solution to you according to your detailed order and situation.
5. What is the payment term of the order?
T/T 30% as deposit, T/T 70% before shipment, other payment terms can be discussed according to the order quantity.
1. What is your MOQ (Minimum Order Quantity)?
Sample order for testing is available. You can choose to place just one piece for testing.
2. What is the warranty term of your product?
Elite standard warranty term is 3 years. Besides, warranty is extending available according to customers' requirements.
3. What about the lead time of bulk order?
It depends on the order quantity. Normally, the lead time is around 30 days.
4. What shipping method can I choose? How about the shipping time?
By Express (3-15 days): suitable for urgent time or small quantity;
By Sea (25-45 days): suitable for bulk order.
By Railway (15-35 days): Suitable for bulk order.
Our sales person will recommend the most suitable solution to you according to your detailed order and situation.
5. What is the payment term of the order?
T/T 30% as deposit, T/T 70% before shipment, other payment terms can be discussed according to the order quantity.
