Basic Info.
Model NO.
B2B121230
Nominal Voltage
12V
Charger Style
Solar Charger
Compatible Battery Type
12-Volt
Size
AAA
Certification
RoHS, CE, E-MARK
Socket Type
Us,EU
Recyclable
Recyclable
Product Name
DC&MPPT Solar Charger
DC Output
30A
Feature
Dual Input
Charge Battery
Gel,Sealed,Flooded,LiFePO4,Lithium-Ion

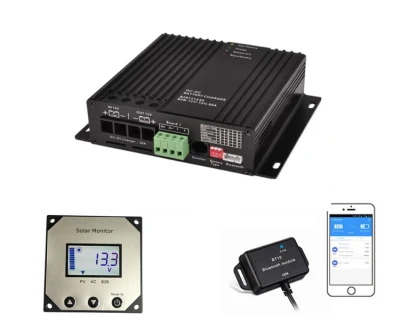

Bluetooth
Support and Optional
Features
Free APP
Temperature Sensor
Support and Optional
Usage
Mobile Charger,RV,Vehicle
Transport Package
Neutral
Specification
19*19.4*7cm
Trademark
OEM/ODM
Origin
Shenzhen, China
Production Capacity
10000PCS Per Month
Packaging & Delivery
Package Size
25.00cm * 25.00cm * 10.00cm
Package Gross Weight
1.000kg
Product Description

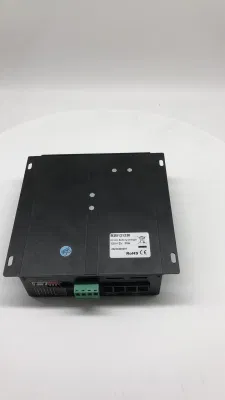

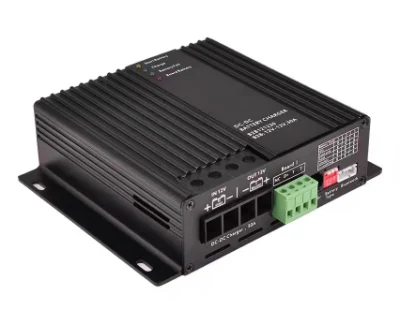

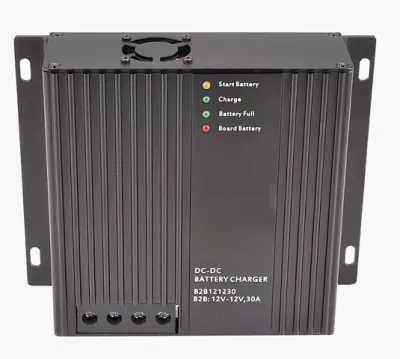

Automatic Smart Vehicle Charger Dual Input DC & Solar Battery Charger
Features
This is a all-automatic charger with 2 charging sources,you can use the battery (12V) to charge the battery (12V) (B2B), or you can use the solar panel to charge the battery,which can automaticall Intelligent switching charging method,specially designed for RVs,exposed cars,campers,ships, etc.
BS126030 B2B: 12V-12V/60A, MPPT solar charger: 12V/30A,430W BS123020: B2B: 12V-12V/30A, MPPT solar charger: 12V/20A,250W
Technical Data BS126030
cable cross section | cable length "+ Start II" | cable length with insulated construction "- Batt." | "Fuse II" cable protection | cable length "- Com." to "- Board I" | cable length "+ Board I" | "Fuse I" cable protection | cable lengths - and + "solar panels" |
| 4mm2 | _ | _ | _ | _ | _ | up to 4m | |
| 6mm2 | _ | _ | _ | _ | _ | up to 6m | |
| 10mm 2 | _ | _ | _ | 0.5-2.0m | 0.5-2.0m | 80A | up to 10m |
| 16mm 2 | up to 7m | up to 7m | 100A | 1.5-3.0m | 1.5-3.0m | 80A | up to 16m |
| 25mm 2 | up to 10m | up to 10m | 100A | 2.5-5.0m | 2.5-5.0m | 80A | _ |
BS123020
cable cross section | cable length "+ Start II" | cable length with insulated construction "- Batt." | "Fuse II" cable protection | cable length "- Com." to "- Board I" | cable length "+ Board I" | "Fuse I" cable protection | cable lengths - and + "solar panels" |
| 2.5mm2 | _ | _ | _ | _ | _ | up to 4.5m | |
| 4mm2 | _ | _ | _ | 0.5-1.5m | 0.5-1.5m | 40A | up to 7m |
| 6mm 2 | up to 5m | up to 5m | 50A | 1.0-2.5m | 1.0-2.5m | 40A | up to 10m |
| 10mm 2 | up to 8m | up to 8m | 50A | 2.0-4.0m | 2.0-4.0m | 40A | up to 16m |
Charging Process
- . Boost charge: Charge according to the maximum current until the battery voltage reaches the constant voltage charging voltage. Different battery boost charging voltages refer to the battery of charging parameters
- . Constant voltage charging : When the battery voltage rises to a boost charging voltage, the current begins to fall and enters constant voltage charging, and the constant voltage charging time is 2h
- When the battery voltage is> 12.6V, the constant voltage charging is cancelled and the floating charging is directly charged
- Floating charge : After the constant voltage charging is completed, the floating charging starts, the current decreases, and the battery voltage maintains the floating charging voltage. Reference charging parameters
