- Overview
- Product Description
Basic Info.
Size
AAA
Certification
KC, PSE, RoHS, TUV, CB, CE
Socket Type
For USA/Canada
Recyclable
Recyclable
Transport Package
Single Product Packaging Carton, Outer Packing Car
Specification
Custom
Trademark
Fuyuang
Origin
China
HS Code
535420
Production Capacity
12000PCS/Month
Product Description
| 54V 1.8A Electric Scooter Battery Charger | ||||||||
| Features | ||||||||
| ·Universal AC input / Full range | ||||||||
| ·Plastic or metal case optional | ||||||||
| ·Cooling by free air convection | ||||||||
| ·MTBF:30000 hours | ||||||||
| ·Provide 3 years warranty | ||||||||

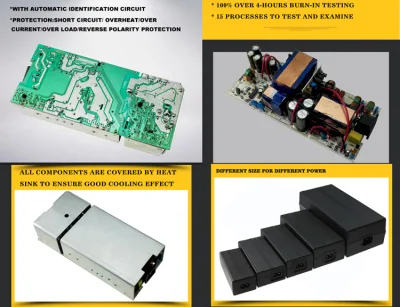

| ·Install fuses on both ends of the Input and Output for double safety | ||||||||
| ·Protections:Short circuit / Over load / Over voltage / Over temperature | ||||||||
| ·Meet CEC,DoE Level VI,Energy star,ErP stage 2,CoC Tier 2,NRCan & GEMS | ||||||||
| ·Certification:UL,ETL,CUL,GS,CE,BS,SAA,KC,PSE,CB,FCC,EMC,RoHS,REACH |
| MODEL NO. | FY5401000
| FY5402000
| FY5403000
| FY5404000
| FY5405000
| FY5406000
| FY5407000
| FY5409000
| |||
| OUTPUT VOLTAGE | 63V | 63V | 63V | 63V | 63V | 63V | 63V | 63V | |||
| OUTPUT CURRENT | 1A | 2A | 3.5A | 4A | 5A | 7A | 9A | 10A | |||
| OUTPUT POWER | 63W | 126W | 220.5W | 252W | 315W | 441W | 567W | 630W | |||
| PFC (MIN.) | 0.6 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | |||
| RIPPLE & NOISE (max.) | 440mVp-p | 440mVp-p | 440mVp-p | 440mVp-p | 440mVp-p | 440mVp-p | 440mVp-p | 440mVp-p | |||
| INPUT | INPUT VOLTAGE RANGE | 100 ~ 240VAC | |||||||||
| FREQUENCY RANGE | 50 / 60Hz | ||||||||||
| INPUT POWER | NO LOAD: 0.5W MAX AT INPUT 100-240VAC 50/60Hz . LOADING : 450W MAX , AT RATED OUTPUT . | ||||||||||
| TEMPERATURE RISING | CASE 65 ºC MAX .ºC FOR RATED OUTPUT | ||||||||||
| EFFICIENCY (MIN) | 88% | ||||||||||
| DIELECTRIC WITHSTAND TEST | 5mA 3000VAC FOR 60 SECOND BETWEEN INPUT AND OUTPUT INPUT AND CASE, AT AN ALTERNATIVE POTENIALS 5% HIGHER MAY BE APPLIED FOR 1 SECOND | ||||||||||
| PROTECTION | OVER LOAD | THE PRODCT INCLUDES CURRENT FUSE TYPE 250V 3A LOCATED WITHIN INPUT CIRCUIT | |||||||||
| SHORT CIRCUIT: | CAPABLE OF WITHSTANDING CONTINUOUS SHORT CIRCUIT AND RECOVER AUTOMATICALLY | ||||||||||
| ENVIRONMENT | WORKING TEMP RANGE | THE OPERATIN TEMPERATURE OF THE PRODUCT SHALL BY FROM -29 ºC TO + 45 ºC | |||||||||
| STORAGE TEMPERATURE | THE STORAGE TEMPERATURE OF THE PRODUCT SHALL BY FROM -40 ºC TO + 75 ºC | ||||||||||
| RESISTANCE TO HEAT | WHEN TESTED WITHIN 10 MINUTES AFTER PRODUCT HAS BEEN PLACED IN A TEST CHAMBER MAINTAINED AT105 ±3ºC FOR 16 HOURS , THE PRODUCT SHALL COMPLYVAC WITH THE REQUIREMENTS OF 4.7 , DIELECTRIC WITHSTAND TEST , SHALL HAVE INSULATION RESISTANCS NOT LESS THAN STATED BELOW AS MEASURED AT 500VDC 10 MEGOHMS MINIMUM BETWEEN THE INPUT AND THE OUTPUT, INPUT AND CASE TOGETHER , 10 MEGOHMS MINIMUM | ||||||||||
| RESISTANCE TO MOISTURE | THE PRODUCT SHALL BY PLACED IN A TEST CHAMBER MAINTAINED AT 40 ± 2 ºC AT 90% ~ 95% RELATIVE HUMIDITY FOR 6 HOURS . THEN , WHEN TESTING 10 MINUTES SAFTER THE PRODUCT IS TAKEN OUT FROM THE TEST CHAMBER AND WIPED DRY , THE PRODUCT SHALL COMPLY WITH THE REQUIREMENTS OF 4.7 DIELECTRIC WITHSTAND TEST , AND SHALL HAVE INSULATION RESISTANCE NOT LESS THAN STATED BELOW AS MEASURED AT 500VDC 10 MEGOHMS MINIMUM BETWEEN THE PRIMARY AND THE SECONDARY TOGETHER;10 MEGOHMS MINIMUM BETWEEN A SECONDRY THER SECONDRY AND TOGETHER. | ||||||||||
| SAFETY & EMC | SAFETY STANDARDS | UL60950 EN60335 | |||||||||
| EMI | CISPR22 CLASS | ||||||||||
| INSULATION | B | ||||||||||
| OTHERS | MTBF | THEVDESIGN AND CONSTRUCTION OF THIS PRODUCT EXHIBIT A MINIMUM MEAN TIME BETWEEN FAILURE OF 30000 HOURS FULL RATED LOAD OPERATION AT 25 ºC | |||||||||

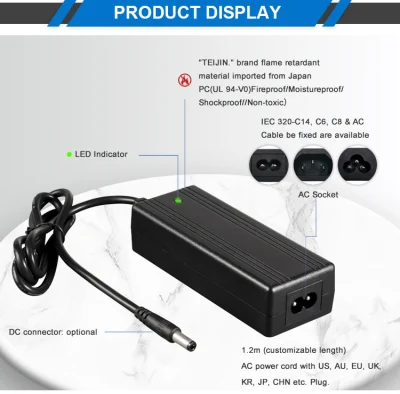

| CONNECTOR | PLUG | 5521, 5525, RCA, XLR, XT60, M16, C14. | |||||||||
| CABLE | UL2464 18# 1M length | ||||||||||
Q1: What is the warranty of your products? A: We offer 3 years guarantee for our Battery Chargers. Power Adapters and LED Power
Supplies, at the same time if the products was damaged undesigned , we are willing to replace
unconditionally.
Q2: What kind of battery charger you can offer ?
A: We can manufacture Lithium Battery Charger, Lead-acid Battery charger, LifePo4 Battery
Charger and NilMH Battery Chargers within a range of 30w-1000w.
Q3. Do you have some new product coming?
A: We have 30 years experience in production of switch power supply company, at present ,
the main goal is to high-power switching power supply design and production, 800W battery
chargers and adapters have been applied for certification, can put into production soon.
Q4: Will each of your product tested before shipment?
A: Yes, each of our Battery Chargers, Power Adapters and LED Power Supplies will be strictly
tested before shipping. The last four processes of testing is Open Frame Performance Testing
--- Plastic Housing Integrated --- 4-hour Aging Testing --- Drop Testing---- Final Performance
Testing --- Packaging.
Q5: What certifications you have ?
A: Our company have been certified by ISO 9001:2015.ISO 14000:2015,QC 080000:2015;
Our Battery Chargers ,Power Adapters and LED Power Supplies are passed UL.FCC.CUL.
CE,RoHs,CB,TUV/GS, SAA,RCM,PSE,KC,CCC.
Q6: What's the lead time?
A: Sample :3-5 days. Mass production: 15-20 days, depends on the order quantity.
Q7: How do you ship the goods and how long does it take?
A:We usually ship by DHL,UPS,FEDEX,TNT etc. It usually takes 4-5 days to arrive. By air,
by sea are also acceptable.
Q8: Could you customize electric bike battery charger for us ?
A: Yes, we support both OEM & ODM.
