Basic Info.
Model NO.
HTB12 HTB6 HTL8
Discharge Rate
0.2-0.5c
Shape
Block ***Add Favorites Get Free Gift***
Electrolyte
Gel+Acid
Installation
Packaged
Rechargeable
Chargeable
Model
Max 12V300ah 6V420ah 8V200ah
Color
Red or Gray Body/ Black Cover
Voltage
12V 8V 6V
Warranty
3 Years
Expected Cycle Life
15~20 Years
Delivery
15-30 Days
Mark
Deep Cycle Gel Solar Battery
Certificates
CE, IEC, ISO
Terminal
M5/M6/M8/Ap/Dt
Casing
ABS or UL94 Fire Resistance
Proof
Water Proof, Non Spillable
Weight/Size
See Below Table
Transport Package
Carton/Pallet
Specification
Deep Cycle DOD50% 1600
Trademark
CSBattery / OEM (Free)
Origin
Guangzhou, Guangdong
HS Code
8507200000
Production Capacity
180K PCS/Month
Packaging & Delivery
Package Size
532.00cm * 250.00cm * 230.00cm
Package Gross Weight
59.000kg
Product Description

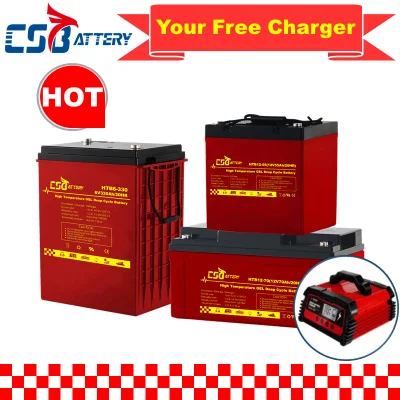

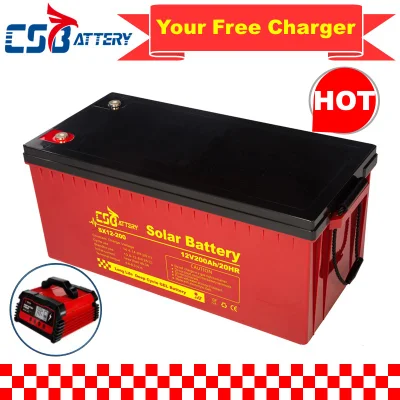

CSBattery High-Temp Deep cycle GEL 12V/6V/8V Battery
HTB12V Patented High-Temp Deep Cycle Solar gel battery, own 15-20years long life, your best partner for solar market and hot area.
CSBattery HTB series of 12V GEL deep cycle batteries are recognized as the most reliable and high quality battery system in the industry. They are designed with advanced patented GEL technology, Long service life designed with 15-20 years, 50% DOD 1500-1600 Cycles, the batteries comply to the most popular international standards, such as IEC60896-21/22, BS6290-4, Eurobat Guide. Deep Cycle GEL Batteries 12V100Ah, 150Ah, 200Ah most popular models Advanced Features:
Ø Environmentally friendly Ø Completely Maintenance-Free ØNon-Spillable construction design.
Ø Wide Operating Temperature Range(-20°C~+60°C) Ø Longer Life(20years designed life) Ø Explosion Proof
Ø Valve Regulated & High Discharge Rate Capability Ø Low Self Discharge Ø Independent of Position
Ø Ease of Shipment Ø No need of balanced charge or boost Ø No Memory
Chinese Best Quality Solar GEL Battery Applications:
Ø Communication equipment Ø Telecommunication control equipment Ø Emergency lighting systems Ø Electric power systems Ø Power station
Ø Nuclear power station Ø Solar powered and wind powered systems Ø Load leveling and storage equipment Ø Marine equipment Ø Power generation plants
Ø Alarm systems ØUninterruptible power supplies and stand-by power for computers Ø Medical equipment Ø Fire and security systems Ø Control equipment
Ø Stand-by electric power.
Product Specifications and Models
----------------------------------------------------------
| High temperature Long Life Deep Cycle 12V GEL BATTERY Model list | |||||||||
| Model | Nominal Voltage (V) | Capacity (Ah) | Dimension (mm) | Net Weight | Gross Weight | Terminal | |||
| Length | Width | Height | Total Height | kgs | kgs | ||||
| HTB12-14 | 12 | 14 | 152 | 99 | 96 | 102 | 3.8 | 3.9 | F1/F2 |
| HTB12-20 | 12 | 20 | 181 | 77 | 167 | 167 | 6 | 6.1 | T1/L1 |
| HTB12-24 | 12 | 24 | 166 | 175 | 126 | 126 | 8.3 | 8.4 | M6 |
| HTB12-26 | 12 | 26 | 165 | 126 | 174 | 179 | 8.4 | 8.5 | M6 |
| HTB12-35 | 12 | 35 | 196 | 130 | 155 | 167 | 10.5 | 10.7 | M6 |
| HTB12-40 | 12 | 40 | 198 | 166 | 174 | 174 | 14.2 | 14.4 | M6 |
| HTB12-55 | 12 | 55 | 229 | 138 | 208 | 212 | 16 | 16.5 | M6 |
| HTB12-70 | 12 | 70 | 350 | 167 | 178 | 178 | 23.3 | 23.8 | M6 |
| HTB12-75 | 12 | 75 | 260 | 169 | 208 | 227 | 25 | 25.5 | M6 |
| HTB12-85 | 12 | 85 | 260 | 169 | 208 | 227 | 26.1 | 26.6 | M6 |
| HTB12-90 | 12 | 90 | 307 | 169 | 211 | 216 | 28.2 | 28.7 | M6 |
| HTB12-100 | 12 | 100 | 307 | 169 | 211 | 216 | 30.2 | 30.7 | M6 |
| HTB12-110 | 12 | 110 | 328 | 172 | 218 | 222 | 33.5 | 34 | M8 |
| HTB12-120 | 12 | 120 | 407 | 173 | 210 | 233 | 39.2 | 39.7 | M8 |
| HTB12-135 | 12 | 135 | 344 | 172 | 280 | 285 | 40.8 | 41.3 | M8 |
| HTB12-150 | 12 | 150 | 484 | 171 | 241 | 241 | 45.5 | 46 | M8 |
| HTB12-180 | 12 | 180 | 532 | 206 | 216 | 222 | 56 | 56.5 | M8 |
| HTB12-200 | 12 | 200 | 532 | 206 | 216 | 222 | 58.6 | 59.1 | M8 |
| HTB12-230 | 12 | 230 | 522 | 240 | 219 | 225 | 65 | 65.5 | M8 |
| HTB12-250 | 12 | 250 | 520 | 269 | 203 | 207 | 71 | 71.5 | M8 |
| HTB12-300 | 12 | 300 | 520 | 269 | 220 | 226 | 77 | 77.5 | M8 |
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------------
Ø Positive plate : Thick high Sn low Ca 3D flat pasted plate Ø Negative plate : Balanced Pb-Ca grid and AM with Supper-C addtives
Ø Separator : Imported Amer-sil PVC separator for Gel battery Ø Electrolyte : nano GEL electrolyte
Ø Battery container and cover : ABS for higher temperature Ø Pillar seal : 100% factory tested, proven two layers epoxy resin seal
Ø Relief valve : Complete with integrated flame arrestor
CSBattery Assembling
CSBattery Quality Control
CSBattery Certifications
Ø IEC 60896-21/22 Ø IEC 61427 Ø ISO9001/14001/18001 Ø Eurobat guide, long life Ø BS6290 part 4
Ø GB/T 22473 Ø CE Ø MH63727-UL

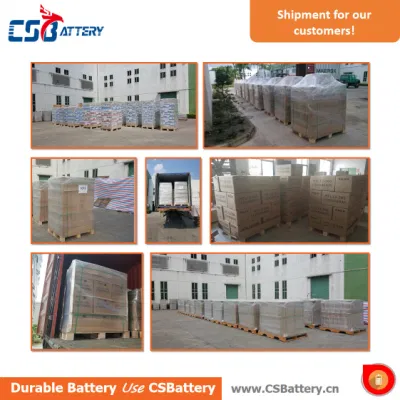

CSBattery Packing and Loading

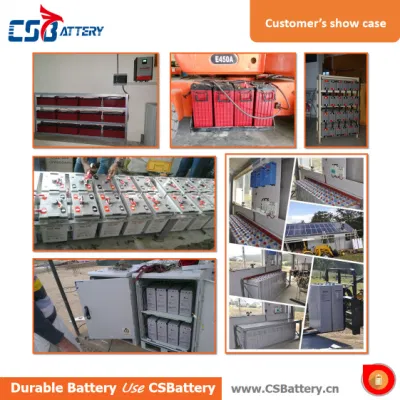

CSBattery Projects
| High temperature Long Life Deep Cycle 6V 8V GEL BATTERY Model list | |||||||||
| Model | Nominal Voltage (V) | Capacity (Ah) | Dimension (mm) | Net Weight | Gross Weight | Terminal | |||
| Length | Width | Height | Total Height | kgs | kgs | ||||
| HTB6-200 | 6 | 200 | 306 | 168 | 220 | 222 | 30 | 30.1 | M8 |
| HTB6-210 | 6 | 210 | 260 | 180 | 247 | 249 | 29.5 | 29.6 | M8 |
| HTB6-220 | 6 | 220 | 306 | 168 | 220 | 222 | 31.5 | 31.6 | M8 |
| HTB6-225 | 6 | 225 | 243 | 187 | 275 | 275 | 30.5 | 30.6 | M8 |
| HTB6-250 | 6 | 250 | 260 | 180 | 265 | 272 | 34.5 | 34.6 | M8 |
| HTB6-310 | 6 | 310 | 295 | 178 | 346 | 366 | 46 | 46.2 | M8 |
| HTB6-330 | 6 | 330 | 295 | 178 | 354 | 360 | 46.6 | 46.8 | M8 |
| HTB6-380 | 6 | 380 | 295 | 178 | 404 | 410 | 55.3 | 55.8 | M8 |
| HTB6-420 | 6 | 420 | 295 | 178 | 404 | 410 | 56.8 | 57.3 | M8 |
| HTB8-170 | 8 | 170 | 260 | 182 | 266 | 271 | 34.3 | 34.8 | M8 |
| HTB8-200 | 8 | 170 | 260 | 182 | 295 | 300 | 38.3 | 38.8 | M8 |
Solar battery FEATURES AND BENEFITS
Ø Long life and supper stability under high temp. environment Ø Electrolyte immobilized as gel state, no leakage and no stratification.
Ø Supper deep cycle life at high temperature Ø Use supper-C additives:Deep discharge recovery capability
Ø Supper PSOC cycling performance
CSBattery Product Structure -------------------------------------------------------------------------------------------------
| Component | Positive plate | Negative plate | Containe r &Cover | Safety valve | Terminal | Separator | Electrolyte | Pillar seal |
| Features | Thick high Sn low Ca grid with Special paste | Balanced Pb-Ca grid for improved recombinati on efficiencv | Fire resistanc e ABS (UL94-V0octional) | Flame Si-Rubber and aging resistance | Female Copper lnsert | Advanced PVC /AGM separator for high pressure cell desbm | Silicon Gel | Two layers epoxy resin seal |
Ø Separator : Imported Amer-sil PVC separator for Gel battery Ø Electrolyte : nano GEL electrolyte
Ø Battery container and cover : ABS for higher temperature Ø Pillar seal : 100% factory tested, proven two layers epoxy resin seal
Ø Relief valve : Complete with integrated flame arrestor
CSBattery Assembling
CSBattery Quality Control
CSBattery Certifications
Ø IEC 60896-21/22 Ø IEC 61427 Ø ISO9001/14001/18001 Ø Eurobat guide, long life Ø BS6290 part 4
Ø GB/T 22473 Ø CE Ø MH63727-UL
CSBattery Packing and Loading
CSBattery Projects
CSBattery Applications
Ø Electric Powered Vehicles Ø Wheel Chairs Ø BTS Stations Ø Medical Equipment Ø Solar and Wind Ø Golf Cars and Buggies Ø Power Tools Ø Control System Ø UPS systems Ø Emergency systems
CSBattery Factory
CSBattery ENERGY CO.,LIMITED is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on. CSBattery Customers
CSBattery FAQ
---------------------------------------------------
Ø Q1. Can your battery be delivered by sea and air?
A: Yes, our batteries can be delivered both by sea and by air. We have MSDS, test report for safe transport as non-dangerous products. Ø Q2. Can I put my logo on the battery?
A: Yes, you can print your logo on our batteries when you order reach 20ft container quantity. If not, price will be negotiated. Ø Q3. Can I fast charge my battery?
A: Fast charging is not recommended as ifs harmful for the battery. ØQ4. Can I do a partial replacement of my batteries?
A: Partial battery replacement of lead acid battery banks is not recommended. Ø Q5. How about your delivery time usually?
A: About 7 days for stock products, around 20 days for half container products, 30 days for 20ft full container products. Ø Q6. Are you a battery manufacturer, and do you produce the plate by yourself ?
A: Yes, we are a professional battery manufacture in Guangdong Province, China. And we produce plates by ourselves. Ø Q7. What certificate your company have?
A: ISO 9001, ISO 14001, OHSAS 18001, CE, UL, IEC 61427 test report, Patent for gel technology and other Chinese honor. Ø Q8.What is your warranty time for VRLA battery ?
A: It depends on battery capacity, depth of discharge, and battery usage. Please kindly contact us for accurate information based on detailed requirements. Ø Q9. Why battery has different capacity at different hour rate?
Ø Q10. What is the shelf life of VRLA battery and how to maintain the battery?
A: The limiting factor of battery's shelf life is the rate of self-discharge which itself is temperature dependent. VRLA batteries will self-discharge less than 3% per month at 77° F (25° C). VRLA batteries should not be stored for more than 6 months at 77° F (25° C) without recharged. If in hot temperature, recharge it every 3 month. When batteries are taken out of long storage, it is recommended to recharge before use.Ø Q11. How does your factory control the quality?
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------
