Basic Info.
Model NO.
Fast EV Charging Station
Communication
Ocpp
Billing System
RFID
Ouput Power
300kw EV Charger
EV Charger Level
Level 3
Advertisement
Option
Model
Level 3 DC Fast Charger Station
Name
Mode 4 Ultra DC Rapid EV Charger
Features
EV Charger
LCD Screen
7inch LCD Screen
Charger Speed
DC Fast
Cooling Unit
Fans Cooling
Support
System Configuration
Type
Fast EV Charging Station
Transport Package
Wooden
Specification
L250*W84*H83 CM
Trademark
NASN
Origin
China
HS Code
8504409992
Product Description

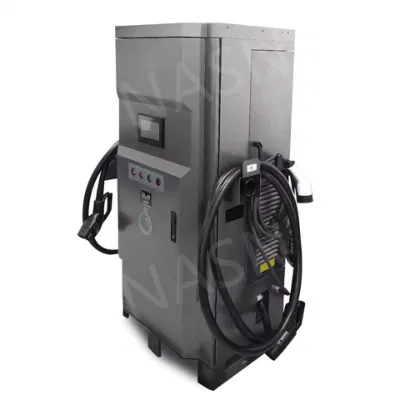

Container EV Charger with Rechargeable Battery
This Container battery Energy Storage System (CBESS) with battery pack built-in, can charge ev at any time and any place. Mobile ev charger system, can be installed on ev self-contained VAN, or a towed trailer to provide roadside or remote electric vehicle rescue when the battery runs out, and on-demanding charging to door service. This emergency mobile ev charging system on the vehicle breaks space limitations and allows rapid deployment without infrastructure.
Features
√ DC fast charging speed
√ Multi-standard with chademo, CCS, Tesla and AC
√ Battery built-in, no need any grid as power source
√ small for home ev fleet use, and container for commercial public are vailable.
√ Good solution for roadside emergency service
√ OCPP configured
Datasheet
More details
Other Popular
PORTABLE EV CHARGER
LOW VOLTAGE 40-100Vdc EV CHARGER
Ultra high power ev charger station
GRID FREE EV BATTERY STORAGE CHAGER SYSTEM
WALL MOUNTED EV BOX
HIGH POWER PUBLIC COMMERCIAL EV CHARGING STATION
V2V SOLUTION FOR EMERGENCY ON THE ROAD
FAQ
Q1: What kind of EV Charger do you have?AC and DC charger with connectors Type2, CCS1/CCS2, CHAdeMO, GB/T, etc.
Q2: Do you provide customized product?
We provide OEM and ODM services for clients.
Q3: What is the delivery time of EV charger?
About 4-6 weeks.
Q4: What about your warranty of EV Charger?
Generally 2 years. Our warranty period depends on customer's requirements and we always put customer's need as priority.
Q5:How do you package it ?
A:We pack in cartons.
Q6:what's the MOQ?
A:For LOGO, color or other special requirements, a minimum of 20 is required. If you do not have these requirements you can buy
directly, we will ship within 3-10 days.
Q7:Can you produce according to the samples?
A:Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q8:Do you test all your goods before delivery?
A:Yes, we have 100% test before delivery.
Q9:What is your terms of delivery?
A:EXW, FOB, CFR, CIF, DDU.
Q10:What is your terms of payment?
A:We accept all methods of payment: paypal, T/T, credit card, Alibaba assurance, West Union... Please contact us for more details.
This Container battery Energy Storage System (CBESS) with battery pack built-in, can charge ev at any time and any place. Mobile ev charger system, can be installed on ev self-contained VAN, or a towed trailer to provide roadside or remote electric vehicle rescue when the battery runs out, and on-demanding charging to door service. This emergency mobile ev charging system on the vehicle breaks space limitations and allows rapid deployment without infrastructure.
Features
√ DC fast charging speed
√ Multi-standard with chademo, CCS, Tesla and AC
√ Battery built-in, no need any grid as power source
√ small for home ev fleet use, and container for commercial public are vailable.
√ Good solution for roadside emergency service
√ OCPP configured
Datasheet
| Charge EV | Output Voltage | 200-500Vdc & 200-750Vdc for option | |
| Output power | Min 60KW | ||
| Charger communication protocol | IEC 61851-24; DIN70121;ISO15118 | ||
| Charger plug number | 1 to 3 | ||

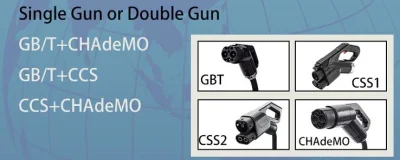

| Charger plug standard | CHAdeMO CCS, GB/T, AC for option | ||
| support charge 2 evs at same time | YES | ||
| Recharge Battery | AC Gird | 3phase 400Vac±15% (3P+N+PE) | |
| DC CCS public charger | CCS input | ||
| DC CHAdeMo public charger | CHAdeMO input | ||
| AC public charger | Type 1 or Type 2 input for option | ||
| Battery system | Battery Capacity (KWH) | 30KWH | |
| Cell Chemistry | Lithium iron phosphate LiFeP04 | ||
| DOD% (Depth of discharge) | 90% | ||
| Working Temperate | Charge | - 20 ºC to 55 ºC | |
| Discharge | - 20 ºC to 65 ºC | ||
| Communication Protocol | RS485/CAN/LAN | ||
| Cycle Life (0.3C) | > 6000 TIMES, 100% DOD @25ºC | ||
| Structure Design | Charge&Discharge at same time | YES | |
| Installation method | Floor Mounted or Movable | ||
| Cable Length | 5m length for each | ||
| LED indicator | 3 LED indicator light or Light Strip | ||
| LCD screen | EV Charger status screen | ||
| 5inch battery status screen | |||
| Emergency Button | YES | ||
| Communication | EN-GATE v.s. Charger | CAN 2.0 (CHAdeMO, GB/T) | |
| PLC (CCS) | |||
| EN-GATE v.s. Backend | Ethernet/WIFI/3G/4G for option | ||
| Charger Communication protocol | OCPP1.6 (JSON) | ||
