Basic Info.
Model NO.
GNE Charger
Warranty
1 Years
Transport Package
Standard Export Packing
Specification
Standard Size
Trademark
Deligreen
Origin
China
HS Code
8504409992
Production Capacity
10000 Piece/Month
Product Description

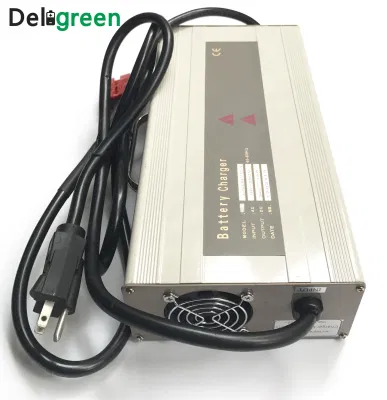

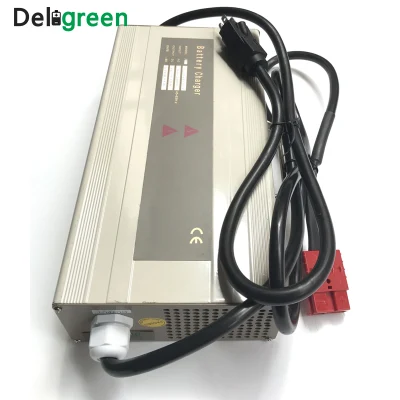

China Supplier 36V 48V 18650 NCM/NCA LiFePO4 Lithium battery charger
Specifications
LED Instructions
Our company
Contact us
Contact: Log Luo
Sales office: Room 1046,AUX Building B,Yuelu area,Changsha,Hunan,China
deligreen.en.made-in-china.com
Brief introduction
We mainly produced Lithium battery charger and Lead-acid battery charge which is based on MCU
technology and advanced charging algorithm. The chargers have light weight, smaller size, steady
charging, high efficiency, advanced intelligent multi-step CC/CV charging mode.
| Specification : | |||
| Input voltage: | 110V/220V | Efficiency: | ≥88% |
| Voltage range: | AC95~130V/AC195~242V | Communication: | CAN/ NO CAN |
| Voltage frequency: | 40~60Hz | Quake proof: | SAEJ1378 |
| Power Factor: | ≥0.75 | Waterproof IP: | IP31 |
| Working Environment: | ||
| Above sea level: | ≤2000m | Without conductive dust |
| Ambient temperature: | -30ºC~55ºC | Mounting slop ≤ 5 degree |
| Ambient humidity: | 5%~70%RH | Keep away from rain and snow |
| Storage temperature: | 5%~70%RH | Without explosive dust |
Charger Curve
Charging Curve For Lead Acid Battery
Charging Curve For Lithium Battery
Specifications
| Input voltage:110V/220V |
| Output Voltage: 3.6V,6V,12V,24V,36V,48V,60V,72V,96V-----650V |
| Intelligent model: 1)Lithium battery charger : Suitable forLithim battery pack, charging curve can adjust. 2)Lead-acid battery charger : Suitable for Lead-acid battery, charging curve can adjust. 3)Voltage regulation charger : CC model and CC/CV model. 4)CAN Charger : CAN communication control. 5)Multi-output voltage charger : four different voltage output : 58.2V/72.6V/87V/96V. Can select inner control charging and CAN control charging. 6)BMS intelligent charger : with our BMS to control charging voltage and current. 7)Adjustable charger : output voltage and current can adjust. 8)Electric Control charger : stop charger control by outer level. |
| Charging mode: 1) Inner control charging : charging was control by charging curve, can adjust as per customer required. 2) Outer control charging : Charging was control by BMS instruction. 3) Level control charging : Stop charging , when Level voltage at 0-2.0V. Start charging , when level voltage at 2.5V-12V. |

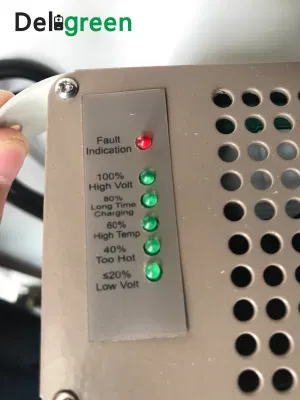

LED Instructions
