Basic Info.
Model NO.
YS150
Power Source
Half-Bridge Type
Connection
Plug In
Brand
Yingjiao/OEM/ODM
Mtbf
100000 Hours Minimum at Full Load at 25 C Ambient
Sample
Free
Output Current
0.1-11A
Input Plug
EU, Us, UK, Au etc
Dimension
190*90*45mm
Life
3-5 Years Alternative
Output Frequency
50/60Hz
Weight
650g
Output Voltage
12-48V
Series
Desktop Type
Output Power
150W Max
Input Voltage
100-240V AC
Transport Package
Inner PE Bag+White Box+Outer Carton, 20PCS/CTN
Trademark
YingJiao / OEM / ODM
Origin
Zhejiang, China (Mainland)
Product Description

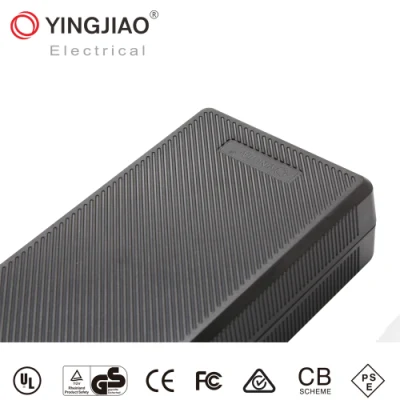

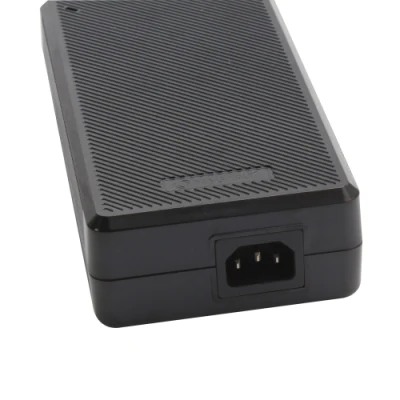

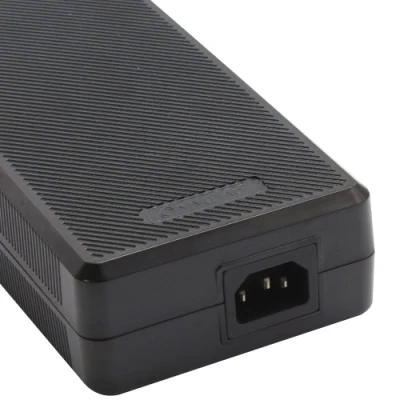

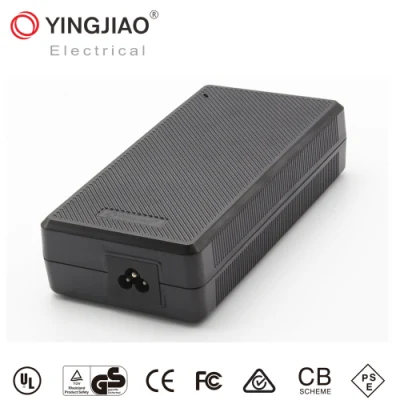

China OEM 12V/18V/19V/24V/45W/65W/90W/100W/125W/200W Lithium Battery Laptop Charger with Ce/UL/TUV/RoHS
Details:
| Model: | YS125 |
| Power: | 100W max. |
| Input: | 100-240VAC 50/60Hz |
| Output Voltage: | 21-67.2V |
| Output Current: | 1.4-4.5A |
| Input current: | 1.5A max. |
| Inrush Current: | 65Amps max. at 240VAC/50Hz,full load |
| Leakage Current: | <0.25mA/240VAC |
| No Load Power Consumption : | <1.0W |
| Protections: | Short Circuit /Over Current /Over Voltage |
| Short Circuit Protection (SCP): | Protection to Zero Voltage |
| Over Voltage Protection (OVP): | ≤Vout*150% |
| Over Current Protection (OCP): | 110%-180% |
| Working TEMP.: | -20°C-50°C |
| Working Humidity: | 5%-90% RH non-condensing |
| Storage TEMP.,Humidity and altitude: | -40ºC ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL. |
| Input Plug: | Multiple Options |
| Certificates and approvals: | UL,CUL,CB,FCC,CE,RoHS |
| Safety standards | UL62368-1,UL1012,EN62368-1,EN60335-1,EN60335-2-29(except for 55.2V) approved |
| EMC standards | EN55032 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3 |
| MTBF: | 100000 hours minimum at full load at 25ºC ambient |
| Life: | 3-5 years alternative |
| Dimension: | 172*72.5*42.5mm |
| Weight: | 590g |
| Packing: | 20PCS/CTN |
| Model: | YS125-6721400 | YS125-5461800 | YS125-4202400 | YS125-2943400 | YS125-2104500 |
| DC Voltage: | 67.2V | 54.60V | 42.00V | 29.40V | 21.00V |
| Rated Current: | 1.40A | 1.80A | 2.40A | 3.40A | 4.50A |
| Current Range: | 0-1.4A | 0-1.8A | 0-2.4A | 0-3.4A | 0-4.5A |
| Rated Power: | 94.00W | 98.28W | 100.80W | 99.96W | 94.50W |
| Ripple & Noise(max.): | 600mVp-p | 500mVp-p | 400mVp-p | 294mVp-p | 210mVp-p |
| Voltage Tolerance: | ±5% | ±5% | ±5% | ±5% | ±5% |
| Line Regulation: | ±3% | ±3% | ±3% | ±3% | ±3% |
| Load Regulation: | ±5% | ±5% | ±5% | ±5% | ±5% |
| Setup,Rise,Hold up time: | 3 second max./40 MS max./5 MS max. at 100VAC input and output max. load. | ||||
