Basic Info.
Model NO.
QW160-010-F
Size
86*48*30.3mm
Certification
RoHS, CE
Socket Type
Au/EU/UK/Us Plug
Recyclable
Recyclable
Input Voltage
100-240VAC 50/60Hz
Color
Black
Transport Package
White Box/Polybags/at Your Request
Specification
Weight: 120± 5g(only body)
Trademark
QUAWIN/OEM
Origin
Shenzhen
HS Code
850431900
Production Capacity
50000 Pieces
Product Description
Quick Detail:
Brand Name:QUAWIN Model Number:QW160-010-F
Use:5S 15V/16V Lifepo4 battery pack
Type:Electric
Place of Origin:Guangdong China (Mainland)

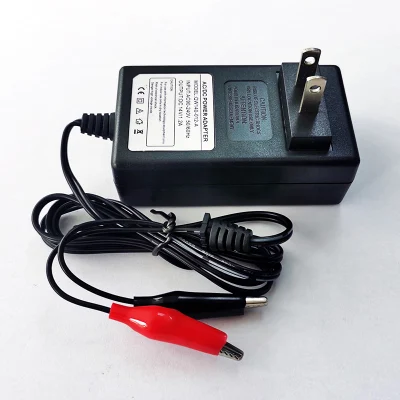

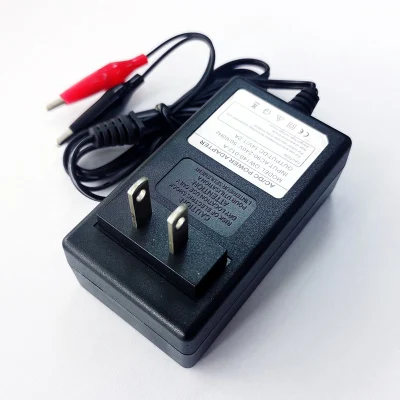

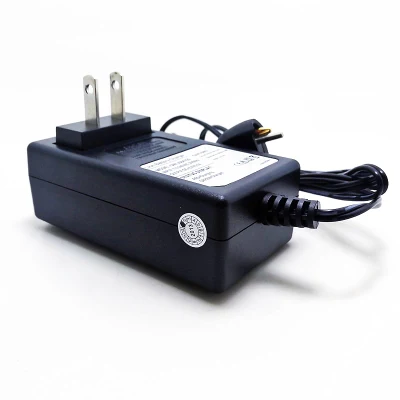

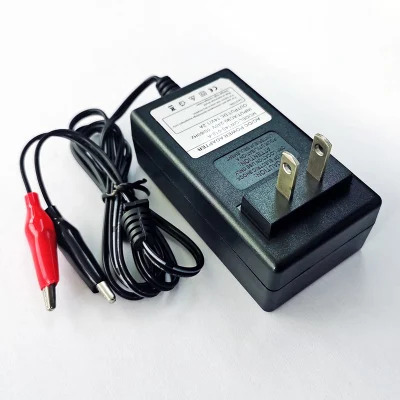

Battery charger:automatic battery charger 18.25V
Color:Black
Shell Material:Plastic Shell(ABS+PC)
Input voltage:100-240VAC 50/60Hz
Output voltage:18.25V
Output current:1a(Max)
Output power:18.25W
Charge mode:CC-CV(Constant Current-Constant Voltage)
Output Connector:DC Jack,Waterproof Flat Jack,RCA,Multiple PIN,Micro USB,TYPE C,Small Alligator Clip,Ring Type Terminal,Air Jet Plug,Audio frequency connector,customization
Packaging & Delivery:
150pcs/Carton
Carton size:618*378*273mm
Delivery Detail:sample within 7 work days,15~25 days for bulk order
Carton size:618*378*273mm
Delivery Detail:sample within 7 work days,15~25 days for bulk order
Specifications:
5S 15V/16V Lifepo4 battery pack
Features:
• Charging mode:CC-CV(Constant Current-Constant Voltage)
• High efficiency and low power consumption
• Stabilized output and low noice
• Efficiency(at 100% load): >=85%
• Operating temperature:-20ºC ~ 45ºC
• Storage temperature:-40ºC ~ 85ºC
• Operating humidity:5%~90%RH
Specification:
• Input: 100-240VAC 50/60Hz
• Output: DC 18.25V
• Charging current: 1a(Max)
• Dimensions (mm): 86*48*30.3
• Weight: 120±5g(only body)
Safety protections:
• Over Voltage protection
• Short Circuit protection
• Polarity error protection
• Over power protection
LED Indicator:
The charger turn trickle-off charging mode if battery is full (1/10C), and indicate by LED:
• Charging:Red LED
• Battery Full:Green LED
Call us to know more details datasheet.
| Typical Product Model | |||||
| Model | Input Voltage (V) | Battery Voltage (V) | Charging Voltage (V) | Charging Current (A) | |
| QW032-030-F | LiFePO4 | AC 100~264V | 3.2(1S) | 3.65 | 3 |
| QW064-030-F | 6.4(2S) | 7.3 | 3 | ||
| QW128-015-F | 12.8(4S) | 14.6 | 1.5 | ||
| QW256-005-F | 25.6(8S) | 29.2 | 0.5 | ||
| QW037-030-L | Lithium | 3.7(1S) | 4.2 | 3 | |
| QW074-020-L | 7.4(2S) | 8.4 | 2 | ||
| QW148-015-L | 14.8(4S) | 16.8 | 1.5 | ||
| QW259-005-L | 25.9(7S) | 29.4 | 0.5 | ||
| QW060-030-S | Lead Acid | 6(0.5S) | 7.35 | 3 | |
| QW120-015-S | 12(1S) | 14.7 | 1.5 | ||
| QW240-005-S | 24(2S) | 29.4 | 0.5 | ||
| QW2.4-4.8-020-N | NiMh/NiCD | 2.4-4.8(2-4S) | 3~6 | 2 | |
| QW3.6-7.2-015-N | 3.6-7.2(3-6S) | 4.5-9 | 1.5 | ||
| QW4.8-9.6-012-N | 4.8-9.6(4-8S) | 6-12 | 1.2 | ||
| QW6-12-010-N | 6-12(5-10S) | 7.5-15 | 1 | ||
| QW7.2-14.4-008-N | 7.2-14.4(6-12S) | 9-18 | 0.8 | ||
| QW9.6-19.2-006-N | 9.6-19.2(8-16S) | 12-24 | 0.6 | ||
| QW12-24-005-N | 12-24(10-20S) | 15-30 | 0.5 | ||
| QW18-36-004-N | 18-36(15-30S) | 22.5-45 | 0.4 | ||
