Basic Info.
Model NO.
CFDC-003
Charge Method
Quick Charge
Product Name
DC EV Charger Station
Application
Fast Electric Car Charging
Output Power
30kw / 40kw / 60kw
IP Grade
IP 54
Cable Length
5 Meters, Support Custom
Interface Standard
CCS +Chademo+Gbt
Advantage
LED Display, RFID, 4G/LAN/WiFi/Ocpp
MOQ
1PCS
Custom Service
Support Customized Colors, Logos, and Packaging
After-Sales Service
Remotly After Sales Service
Type
Fast EV Charging Station
Certification
CCC, CE, ISO, TUV, RoHS
Warranty
24 Months
Transport Package
Wooden Stake + Cardboard-Shell
Specification
Indoor & Outdoors use
Trademark
Champion
Origin
China
HS Code
8504401500
Production Capacity
5000PCS Monthly
Product Description
Champion floor mounted commercial 30kw 40kw 60kw Fast EV charger for electric car and bus with ocpp and CE
We support ev charging station with different power according to customer requirements
| Product Parameters | ||||
| Model | CFDC-003 FC060750E/A/J | CFDC-003 FC040750E/A/J | CFDC-003 FC030750E/A/J | |
| Input characteristics | ||||
| Voltage range | AC380V±15% | |||
| Working Frequency | 50-60HZ | |||
| Power Factor | ≥0.99 | |||
| Output characteristics | ||||
| Output Power | 60KW | 40KW | 30KW | |
| Voltage range | 200-750VDC | |||
| Max Current | 200A | 120A | 100A | |
| Work environment | ||||
| Temperature range | -40~85ºC;25ºC(type);Intelligent derating when shell temperature exceeds 70ºC | |||
| Humidity range | 20~95RH%;25RH%(type);non-condensation | |||
| Altitude | 2000M | |||
| Storage environment | ||||
| Temperature range | -40~85ºC;25ºC(type) | |||
| Humidity range | 5~95RH%;25RH%(type);non-condensation | |||
| Altitude | 3000M | |||
| Dimensions and protection | ||||

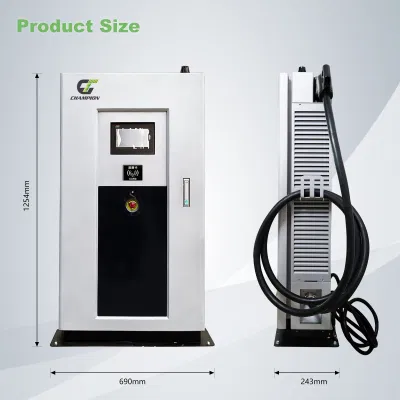

| Single size(mm) | 1254mm*690mm*243mm(Excluding head, handle and casters) | |||
| Packing size(mm) | 1264mm*390mm*390mm | |||
| Carton packing/weight | Net:200 KG Gross:230KG | |||

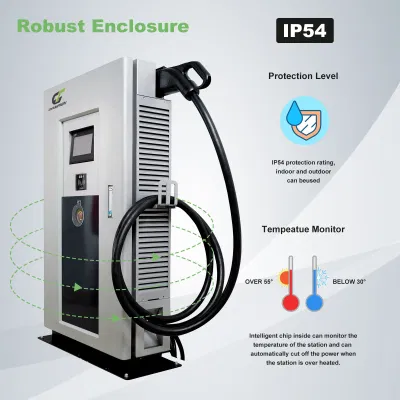

| IP Level | IP54 | |||
| Others | ||||

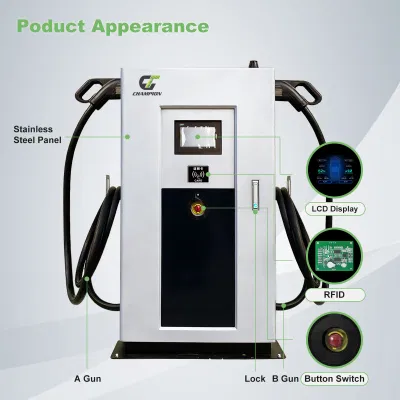

| Human Machine Interface | 7 inch color touch screen +IC card contactless card reader | |||
| Networking | Standard:CAN/485/Lan , Optional:GPRS/4G | |||

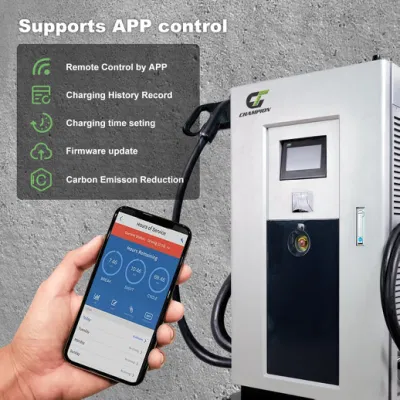

| Charging mode | Swipe card, APP, manual | |||
| Standard | EN61851-1,JEVSG 105 | |||
| Protocol | CHAdeMO 2.0/DIN 70121, OCPP 1.6(JSON or SOAP), ISO 15118 | |||
DC EV Charging, we also support 30KW,60KW,120KW,180KW,240KW. One port charging gun and double charging gun.
Can provide charging equipment that meets the following standards
Our EV car chargers have been sold to over 40 countries , such as Germany, India, USA,Canada, Netherlands, Switzerland, India, Slovakia, Bolivia, Argentina, Netherlands, Switzerland etc.
The Charging piles are widely used in Residential, Wokeplace Business, Gas Station,High-speed Service Station, Parking Lot,Household.
1:Why choose us?
A:We are professional EV charger manufacturer. We own mastered core R&D capabilities such as intelligent control, Internet of Things, rough data, artificial intelligence, and has been recognized by national high-tech enterprises and has more than 100 patented technologies.
2: How can we guarantee quality?
A: Always a pre-production sample before mass production; All major components are tested before assembly and each charger is fully tested before shipped.
3: How long to fully charge a car?
A: To know how long to charge a car, you need to know the OBC(on board charger) power of the car, the car battery capacity, the charger power. The hours to fully charge a car =battery kw.h/obc or charger power the lower one. For e.g, the battery is 40kw.h,obc is 7kw, charger is 22kw, the 40/7=5.7hours. If the obc is 22kw, then 40/22=1.8hours.
4:Can I order some samples? How long will ship to my address?
A:Yes, sample available, and usually 7-10 days to production and 7-10 days to express.
5.Can I custom our logo, package and cable length?
A: Yes dear, we support custom printing your Logo, package,plug and cable. We support GB/T, US, EU, JPN Standard.
6.Can I have a discount price and better service?
A: Of course , for first cooperation and our VIP customers, we all have different plan of discount. And please don't worry, we always provide best service of every customer friend. Please to contact us ! Welcome contact Now!
