Basic Info.
Model NO.
KP1220Pb
Nominal Voltage
12V
Charger Style
Intelligent Charger
Compatible Battery Type
12-Volt
Size
AA
Certification
RoHS, TUV, CE
Socket Type
For E.U.
Recyclable
Non-Recyclable
Warranty
1 Years
Transport Package
Pack in Carton, Then Onto Pallet
Specification
220*110*60mm
Trademark
Koyosonic & OEM
Origin
China
HS Code
8504401400
Production Capacity
10000000pieces/Month
Packaging & Delivery
Package Size
230.00cm * 120.00cm * 70.00cm
Package Gross Weight
1.050kg
Product Description

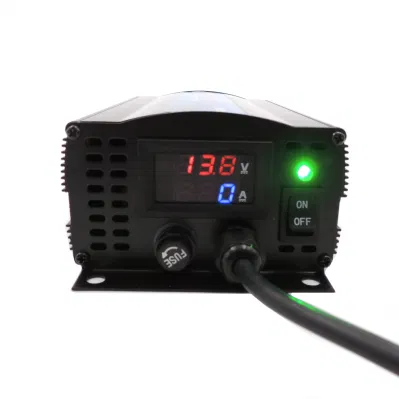

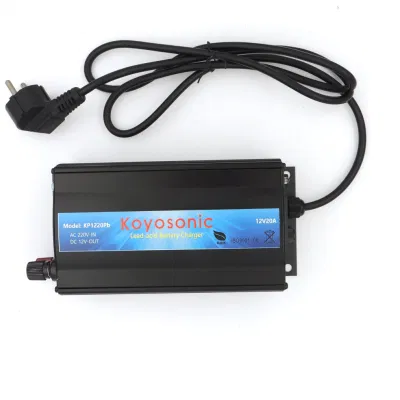

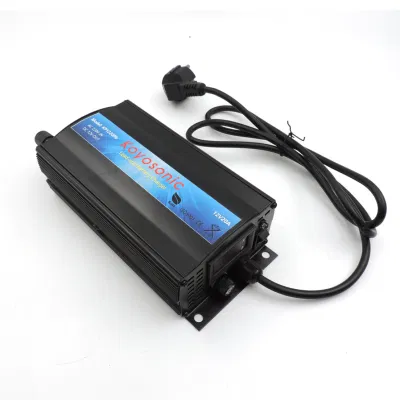

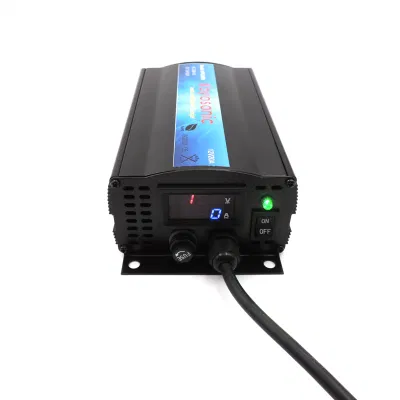

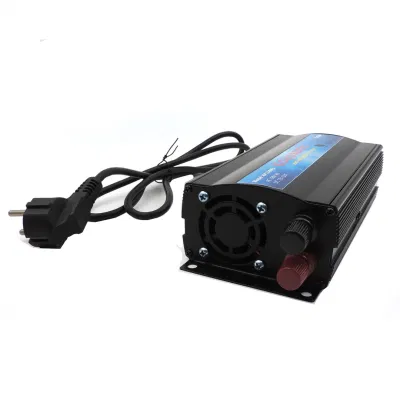

CE Approved 12V20A Lead Acid Battery Charger 600W Solar Battery Charger for 12V/24V/36V/48V/60V/72V Batteries
Specifications:
User Manuel:
Specifications:
| Model | Input Voltage ( AC) | Input Frequency | Norminal Charging Voltage (DC) | Charging Voltage Range | Charging Current | No-load current (related input voltage) | Floating Current | Dimension ( L*W*H) mm | N. W (Kgs) |
| ± 1A | |||||||||
| KP1205Pb | 110V / 220V | 50HZ / 60HZ ±1HZ | 12V | 13.7-14.4V | 5A | ≤ 15mA | 1A | 140*110*60 | 0.65 |
| KP1210Pb | 10A | ≤ 50mA | 1A | 220*110*60 | 0.98 | ||||
| KP1220Pb | 20A | ≤ 50mA | 2A | 220*110*60 | 0.98 | ||||
| KP1230Pb | 30A | ≤ 100mA | 3A | 235*140*70 | 1.8 | ||||
| KP1240Pb | 40A | ≤ 100mA | 4A | 280*199*70 | 2.94 | ||||
| KP1250Pb | 50A | ≤ 100mA | 5A | 280*199*70 | 2.94 | ||||
| KP2405Pb | 24V | 27.4-28.8V | 5A | 220*110*60 | 0.98 | ||||
| KP2410Pb | 10A | ≤ 50mA | 1A | 218*115*62 | 0.98 | ||||
| KP2420Pb | 20A | ≤ 150mA | 2A | 270*199*78 | 1.8 | ||||
| KP2430Pb | 30A | ≤ 150mA | 3A | 270*199*78 | 2.94 | ||||
| KP4805Pb | 48V | 54.8-57.6V | 5A | ≤ 50mA | 1A | 220*110*60 | 0.98 | ||
| KP4810Pb | 10A | ≤ 100mA | 1A | 280*199*70 | 2.94 | ||||
| KP4815Pb | 15A | ≤ 150mA | 1A | 280*199*70 | 2.94 | ||||
| Charging Efficiency | ≤ 83% | ||||||||
| Charging Indication | LED Red: Charging ; LED Green: Fully Charged | ||||||||
| Operating Temperature | 10 ºC ~ 50ºC | ||||||||
| Storage Temperature | 40 ºC ~ 70ºC | ||||||||
| Operating Attitude | ≤ 1500m | ||||||||
| Protective Function | Over - temperature protection and Reverse polarity protection (Fuse Burns out) | ||||||||
| Applyto batteries | All kinds of lead - acid batteries | ||||||||
| Applications | Vehicles , ships, energy storage and emergency, etc. | ||||||||
| Model & Meaning |  | For example PGC05122 It refers to standard high frequency charger 5A 12V 22V | |||||||
