Basic Info.
Model NO.
TE4-0227
Usage
Car Battery Charger
Interface
SAE
Color
OEM
Input Voltage
105-125V 200-240V
Output
12V and 24V
Efficient
>75%
Charging Voltage
14.4V 28.8V
Back Drain Current
<5mA
Ambient Temp
-10-40
Housing Protection
IP65
Noise Level
<50dB
Transport Package
Carton
Specification
Conton size: 50x44x31CM
Trademark
TONNY
Origin
China
HS Code
8504401990
Production Capacity
200000PCS
Packaging & Delivery
Package Size
30.50cm * 11.50cm * 12.50cm
Package Gross Weight
3.000kg
Product Description

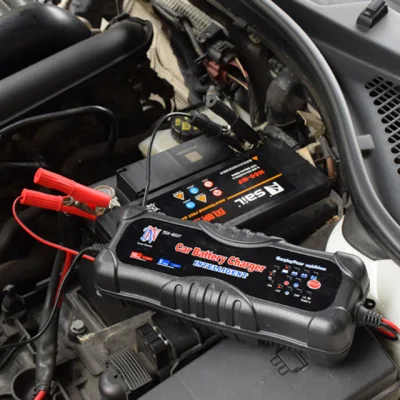

12V/10A, 24V/5A SMART BATTERY CHARGER
Specifications
- Battery Maintainer for use on 12V & 24V battery systems. Charges 12 and 24 volt AGM, GEL and WET batteries

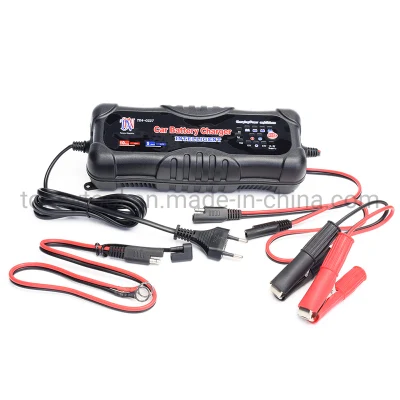

- Easy connection to vehicle battery using the included battery clips, O-ring terminals
- High-frequency smart charging technology keeps batteries at optimal charge
- Automatically switches between charging mode and float mode monitoring
- Fully protection for reverse polarity, short circuit, overcharge, over-temp, etc.
- 13.6V/4.0A DC power supply function
- Microprocessor controlled - 7 stage charging program, multi-stage charging for added precision, safety and battery life
| Model | TE4-0227 |
| Battery Type | 12V/24V STD, GEL, AGM |
| Rated AC Input Voltage | AC105-125V, 60Hz or 220-240V, 50Hz |
| Max Output Voltage | 14.4V±0.3V, 28.8V±2% |
| Charging Current | 2A/5A/10A for12V batteries, 2A/5A for 24V batteries |
| Activated Voltage | 5V for 12V batteries, 17V for 24V batteries |
| Protection | Overheat |
| Short Circuit | |
| Reverse Polarity | |
| Overcharge | |
| Housing Material | ABS |
| Ingress Protection | IP20 |
| Color | Customized |
| Certificate | cETL /CE-EMC/CE-LVD/ROHS |
| Weight | 900g |
| Size | 264x89x60mm |
| Plug Standard | EU/AU/UK/US |
