Basic Info.
Model NO.
IPS-DTD1224S5830
Application
Battery Charger
Protection
Overload/Over-Current,etc.
OEM
Accepted
Customized
Charge Voltage, Label
Transport Package
Carton
Specification
220*156*65MM
Trademark
IDEALPLUSING
Origin
China
HS Code
8504409999
Production Capacity
100000

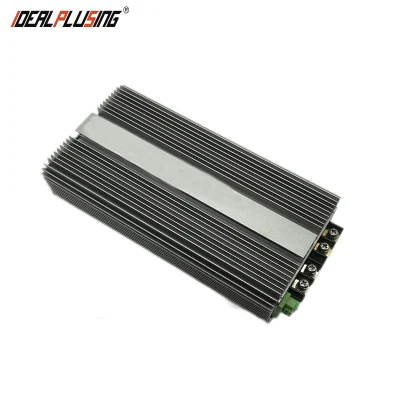

Product Description
PART 1. INTRODUCTION
DC/DC converter is a voltage converter that can effectively output fixed voltage after converting input voltage. DC/DC converters are divided into three categories: Boost type, boost & buck type, and buck type.
Three kinds of control can be adopted according to the demand. PWM control type has high efficiency and good output voltage ripple and noise. PFM control type has the advantage of low power consumption even if it is used for a long time, especially under a small load.
PFM control is implemented when PWM/PFM converts to a small load, and it is automatically converted to PWM control when a heavy load occurs. At present, DC-DC converters are widely used in mobile phones, MP3, digital cameras, portable media players, and other products. It belongs to the chopper circuit in the classification of circuit types.
PART2. FEATURES
| 1 | Design meeting RoHS / CE |
| 2 | High efficiency: 93% |
| 3 | Non-isolated between input and output |
| 4 | Internal capacitor: NCC & NICHICON (high reliability) |
| 5 | 100% full load burn-in test |
| 6 | Over load, Over temperature and Over voltage protections |
| 7 | Waterproof level IP65 |
| 8 | 12 months warranty |
PART 3. MODEL DEFINITION
IPS-DTDXXSYYZZZ , For example : IPS-DTD12S2460
| IPS | IDEALPLUSING Brand | DTD | DC TO DC |
| XXX | Max input Voltage | YYY | Max output Voltage |
| ZZZ | Max output Current |
PART 4. TECHNICAL PARAMETER
| Brand | IDEALPLUSING |
| Type | NON-Isolated |
| Model | IPS-DTD1224S5830 |
| DC voltage INPUT | |
| Voltage rate | 1224VDC |
| Voltage range | 12/24VDC Battery |
| DC voltage & Current output | |
| Voltage rate | 58VDC |
| Current | 30AMPS |
| Rate Power | 1740Watts |
| Size | 220*156*65MM |
| NW | 3.5KG |
| Others | |
| Customize | Allow |
| Material of shell | Aluminum |
| Working temp | -20~80ºC |
| Efficiency | 93% |
| Waterproof Level | IP65 |
| Protection function | Input instant over-voltage Output over-current Chip over-heat protection |
