Basic Info.
Model NO.
BX400D
Consumption
0.28 a / Hour
Voltage Vacuum
12000 Volts
Delivered Power
7.4 Joules
Power Output at
4 Joules
Effectiv Length
70 Km
Frame Finishing
PVC Coated
Weight
5 Kgs
Feature
Easily Assembled, Eco Friendly, Waterproof
Service
Instruction Book
Transport Package
Carton
Specification
360x240x430mm
Trademark
XSTOP
Origin
China
HS Code
8543709300
Production Capacity
2500 Piece/Pieces Per Week
Product Description

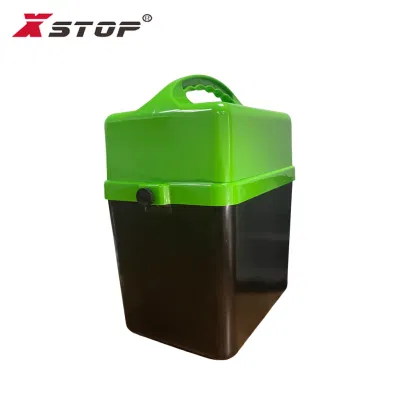

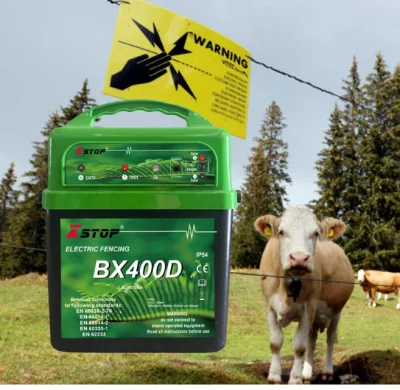

XSTOP BX400D
ELECTRIC FENCE ENERGIZER
12v battery or solar panel charging of electric fence
energizer output on 4 joules
The BX400D adjustable output energizer is a versatile electric fence energizer for fence lengths of up to 70 km! The unit produces a powerful 12000 V output, a great deterrent for stallions, bulls and other difficult to retain stock. The BX400D has efficient low power consumption in relation to its high pulse intensity.

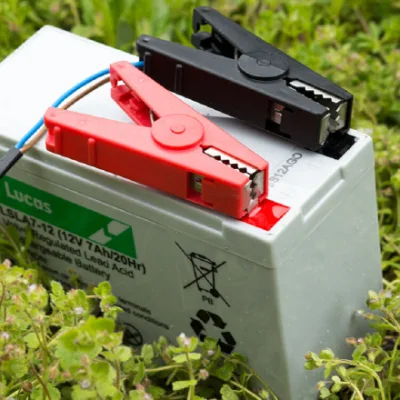

The energizer is designed to run off a 12 V power source, typically an automotive style battery that can be conveniently contained within the body of the unit and protected from the elements.
The electric fence unit can be connect with the solar panel to continually charge the battery (battery and solar panel Not Included)

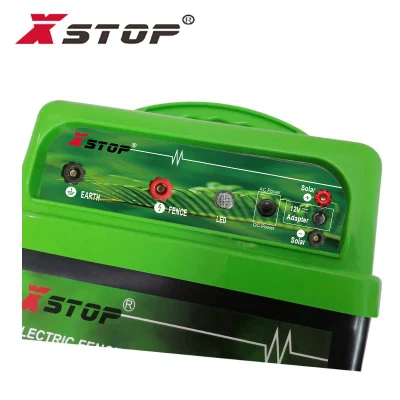

The energizer has front panel input connectors for easily attaching a solar panel or other 12V source. The energizer features internal charge controller circuitry to regulate the incoming voltage from a solar panel when charging the battery. It also features a variable power control knob and an operation indication light.
The energizer is designed to run off a 12 V power source, typically an automotive style battery that can be conveniently contained within the body of the unit and protected from the elements.
The electric fence unit can be connect with the solar panel to continually charge the battery (battery and solar panel Not Included)
The energizer has front panel input connectors for easily attaching a solar panel or other 12V source. The energizer features internal charge controller circuitry to regulate the incoming voltage from a solar panel when charging the battery. It also features a variable power control knob and an operation indication light.
Feature & Advantage
* Adjustable power output
* Internal charge controller and solar panel
* System protection from voltage surges
* Robust shock resistant ABS plastic casing
* Large lower battery box for holding automotive style battery
* CE , IP54 Listed
* 2 years warranty
* We are factory, all products are made and design by ourself, OEM and customization are available.
* Internal charge controller and solar panel
* System protection from voltage surges
* Robust shock resistant ABS plastic casing
* Large lower battery box for holding automotive style battery
* CE , IP54 Listed
* 2 years warranty
* We are factory, all products are made and design by ourself, OEM and customization are available.
| Item: | Battery farm electronic fence energizer |
| Model No.: | BX400D |
| Power supply: | 12 volts or 110-240 Adaptor or Solar |
| Consumption: | 0.28 A / hour |
| Voltage Vacuum: | 12000volts |
| Deliveried power vacuum: | 7.4 joules |
| Power output at 500 ohms: | 4.0 joules |
| Effective length: | 70 km |
| Plastic case Dimensions: | 330 x 240 x 430 mm |
| Weight: | 5 kg |
| Application: | Farm, Garden |
Comparison Table
| Models | Power supply | Consumption | Voltage Vacuum | Delivered power vacuum | Power output at 500 ohms | Effective length | Weight |
| BX025D | 12V dc or 110-240V ac | 0.05~0.11 A / hour | 9500 volts | 1.0 joules | 0.20-0.25 joules | 2-5 km | 3.5kg |
| BX050D | 12V dc or 110-240V ac | 0.06~0.12 A / hour | 9500 volts | 1.2 joules | 0.32-0.55 joules | 5-10 km | 3.5kg |
| BX280D | 12V dc or 110-240V ac or Solar | 0.17 A / hour | 12000 volts | 3.0 joules | 2.8 joules | 50 km | 5 kg |
| BX350D | 12V dc or 110-240V ac or Solar | 0.25 A / hour | 12000 volts | 6.2 joules | 3.0 joules | 60 km | 5 kg |
| BX400D | 12V dc or 110-240V ac or Solar | 0.28 A / hour | 12000 volts | 7.4 joules | 4.0 joules | 70 km | 5 kg |
| BX500D | 12V dc or 110-240V ac or Solar | 0.34 A / hour | 12000 volts | 8.3 joules | 5.0 joules | 100km | 5 kg |
| BX600D | 12V dc or 110-240V ac or Solar | 0.40 A / hour | 12000 volts | 8.0 joules | 6.0 joules | 120 km | 5 kg |
| BX700D | 12V dc or 110-240V ac or Solar | 0.46 A / hour | 12000 volts | 8.3 joules | 7.0 joules | 140 km | 5 kg |
| BX800D | 12V dc or 110-240V ac or Solar | 0.52 A / hour | 12000 volts | 9.0 joules | 8.0 joules | 150 km | 5 kg |
| BX900D | 12V dc or 110-240V ac or Solar | 0.58 A / hour | 12000 volts | 10.0 joules | 9.0 joules | 160 km | 5 kg |
Solar Power Installation
