Basic Info.
Model NO.
GS7-AC-H01
Usage
EV Battery Charging
Interface
Type 1 or Type 2
Color
Orange
Input Voltage
AC 220V
Power Input
230V/400V
Rated Current
16A/32A
Max Power Output
3.5kw/7kw/11kw/22kw
Communication
WiFi/LAN/Blue Tooth/ 4G
Smart Charging
APP/Tuya Smart Life/Ocpp1.6j
Charging Mode
Plug& Play/APP/ RFID
Connector
Type 1 or Type 2
Installation

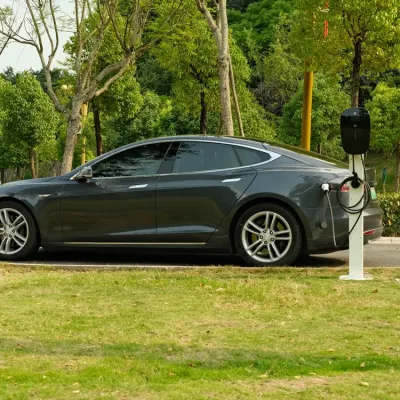

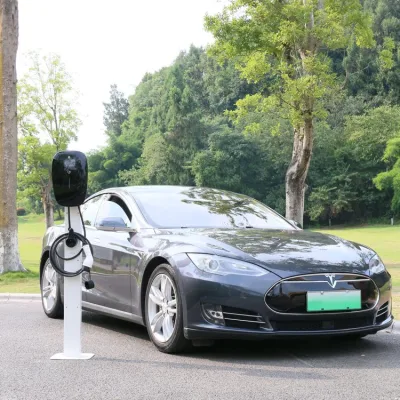

Wall Mounted or Pedestal
Service
OEM/ODM/Jdm/Distribution
RCD
30mA Type a +6mA DC
Warranty
24 Montha
Protection Degree
IP65
LCD
4.3 Inch
Current Adjustable
Yes
Environment Temperature
-40 Degree - + 60 Degree
Transport Package
Carton
Specification
340*285*147mm
Trademark
Green Science
Origin
China
HS Code
8504409999
Production Capacity
50000/Year

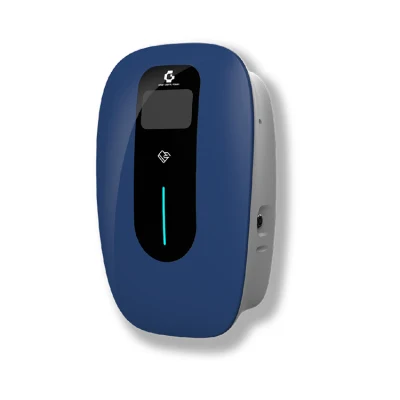

Product Description
Technical Datasheet
| Model | GS7-AC-H01 | GS11-AC-H01 | GS22-AC-H-1 |
| Power Supply | 1P+N+PE | 3P+N+PE | 3P+N+PE |
| Rated Voltage | 230 V AC | 400V AC | 400V AC |
| Rated Current | 32A | 16A | 32A |
| Frequency | 50/60 Hz | 50/60 Hz | 50/60 Hz |
| Output Voltage | 230V AC | 400V AC | 400V AC |
| Output Current | 32A | 16A | 32A |
| Max Output power | 7kw | 11kw | 22kw |
| Cable Connector | Type 2 | ||
| Cable length | 5m /7.5m | ||
| Control Mode | Plug & Play / RFID card /App /OCPP 1.6J | ||
| Communication | WIFI / Ethernet / Blue tooth | ||
| IP Protection | IP 65 | ||
| RCD | 30mA Type A + 6mA DC | ||
| Certificate | CE , Rohs | ||
| Warranty Period | 24 months | ||
| Package Dimensions | 340* 285*147 mm | ||
| Gross weight | 4 kg for 7kw. 5kg for 11kw and 22kw | ||
| External Package | Carton | ||
ABOUT GREEN SCIENCE
Today globle warming is the commom topic of human beings,energy crisis, ice cps melting in North pole.
Caron reduce is becoming the mission of people worldwide.
More and more people are choosing Electric Vehicle to be their daily driving tool.In the mean time, the
EV infrastructure and accessories of powering those EV are equally critical to speed up this motion.
So we decided to take part in, and join the race of carbon reducing.
Sichuan Green Science & Technology Co., Ltd. Was founded in 2016, located in Chengdu National Hi-Tech
Zone. We dedicated in providing package solutions for EV charger and smart charging solutions.
The products currently we are producing include:
1. Type 2 EV charger: 1 phase /3 phase, 3.5 kw, 7kw,11kw, 22kw charging station of IEC 62196-2 standards
or home use(residential) and commercial use which cover most market needs in European countries and UK.
2. Type 1 EV charger: level 2 charging station, 3.5 kw, 7kw, 10kw, 11 kw charging stations of SAE J1772
standards for home use (residential) and commercial use which cover most market needs in North America
and South Amercia.
As a manufacturer of ev charging stations,to win the trust of the clients and survive in the market, our products
needs to be durable, safe,reliable, affordable and easy to use for the end users.The safty, quality andstability
comes first position of the manufacturing.
We are high -tech enterprise, with 20+ professional and exprienced R&D engineer team, we can provide fast
response and high quality ODM and JDM solutions for EV charger and EV charging stations to help all the new
comers to grow their EV charger business easily and cost-effectively.
Meanwhile, No mater you are startups, small businesses or large corporates , you are all welcomed at Green
Scicence. We're able to produce large quantity at the same time with the flexibility to customize designs,logos
and colors, samples and trial orders to help you grow business and brand.
We are always on the way to provide green energy, green technology and green life.
