Basic Info.
Model NO.
FX-01
Type
Lead-Acid Battery Charger
Charging Type
Electric Charger
Principle
Standard Battery
Product Name
Smart Battery Charger 24V2a Car Battery Charger
Low Mqq
100PCS
Materical
Plastic
Recyclable
Non-Recyclable
Shipport
Shanghai
Transport Package
Standard Export Carton
Specification
122*80*40mm
Trademark
FX
Origin
China
HS Code
8504409990
Production Capacity
500000PCS/Month
Packaging & Delivery
Package Size
20.00cm * 8.00cm * 6.00cm
Package Gross Weight
0.600kg
Product Description
Product Description

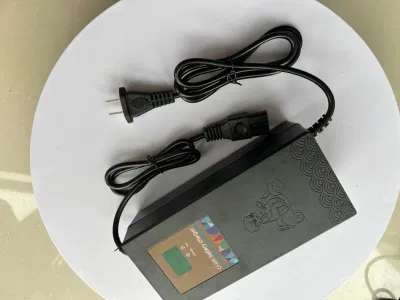

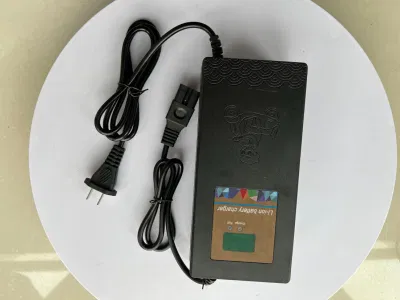

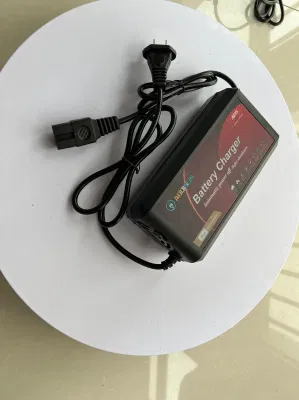

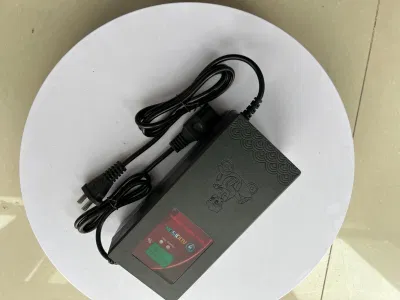

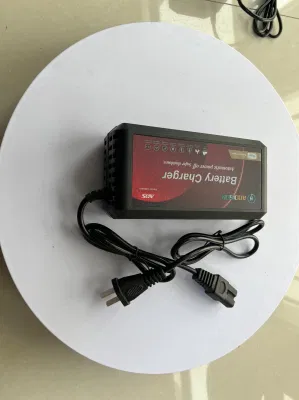

3A 5A 8A 72V/84V Lithium Battery Charger Display Large Battery Charger for Electric Bicycle/Car/Garden Tool Batteries/Auto Car
Lithium battery charger /Battery charger VRLA Battery Charger Electric Scooter Charger Lifepo4 Battery Car battery charger Car Battery Charger 12V Battery Chargers Solar Charger Solar Battery 12v battery chargers Car Battery Power Adapter Battery Chargers Charger Battery 24v battery charger Power Supply Portable Charger Chargers battery Lithium battery charger 12 volt Battery charger 18650 battery charger Battery charger 12V 12V6A battery charger
| Specification |
|---|
| Input: 100~240V |
| Output: 84V/8A |
| Charge Process: MCU Control, With Recovery Function |
| Charger Indicator: With 20%~100% Battery Fuel Gauge |
| Output Protections: Short-circuit, Reverse Polarity |
| Safety Approval: CE cUL |
| Size: 122 x 80 x 40mm |
| Suit for Battery: 12 Volt 4~40Ah Lead-Acid Battery Charger |
FX Group is a main member of digital-chargers from AnHuiFengXIn Co., Ltd. It represents today's new technology for lead-acid type battery charging. G60-12A programmed four auto stages (Ud-Im-Uo-Up) charging process, It is designed for all kinds of 12V 7~80Ah lead-acid battery, such as SLA, AGM and Gel battery. Stage "Ud" desulfurating the battery through 18V pulse,When the battery recovered, stage "Im" will give bulk current charging( 3.3A or 2.0A). Then, "Uo" stage is followed, the output voltage is limited on 14.7V; When the battery is nearly full, stage"Up" will turn on duty. At this stage, the battery is charged completely and the charger give some pulse to maintenance the battery.
Further, FxGroup can display the charging process, indicate the battery capacity from 25% to 100% timely. This is helpful for user.
For more safety, FxGroup will inter protection mode when the battery polarity reversed or the output connectors shorted.
2 YEARS WARRANTY
Multi Plugs Can Be Selected
Product Display:
1. The shell is made of high temperature, wear-resistant, impact resistant ABS+PC composite material. It can effectively improve the heat dissipation and ensure that the temperature of the power supply is not excessive
2. Smart Cooling hole with fan design
That can effectively improve the heat dissipation of the power source, so that the charger can be kept in the proper humidity and temperature, and effectively prolong the service life of the charger.
How to use:
1. Connect the AC cord to the socket, The "power" lamp will light on RED.
2. Connect positive charger clip (red) to positive battery terminal, the black clip to negative. (You can use other dc plugs to connect battery), the "25%~100%" lamps will light on flowing. If the battery polarity reversed or output shorted, all lamps will flashing, please check the setup.
3. Depend on the charged capacity, 25%~100% lamps will lights up solid sequence, until the battery is fully charged. Then you can power off the charger and disconnect the battery or you can charge a new battery if you need.
The table shows the duration of the Bulk stepup to about 80% state of charge.
| Battery type(Ah) | G60-12A(hours) | G60-12AS (hours) |
| 12 | 3 | 5 |
| 22 | 7 | 10 |
| 45 | 14 | 20 |
| 75 | 22 | Not recommend |
