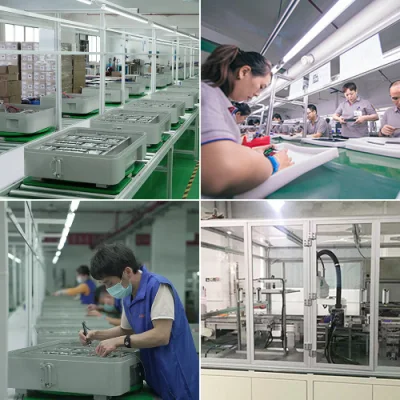

- Sunpal Factory
- Customer Photos
Basic Info.
Model NO.
PP-Y2-5kWh/10kWh
Capacity
100ah 200ah
Voltage
48V/51.2V
Cycle Life
6000 Times
Warranty
5years
Weight
51/89kg
Certification
CE/RoHS/Un38.3/MSDS
Cell Type
Grade-a Lithium-Ion
Communication
Can/RS485/Dry Contact
Transport Package
Wooden Package
Specification
600*510*173mm/673*618*193mm
Trademark
Sunpal
Origin
China
HS Code
8507600090
Production Capacity
1000 Pieces/Day

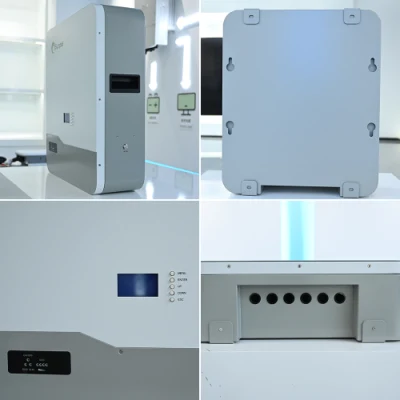

Product Description
| Model | PP-Y2-5kWh | PP-Y2-10kWh |
| Nominal Voltage | 48V | |
| Rated Capacity | 100Ah | 200Ah |
| Battery Cell | 3.2V 100Ah Prismatic Battery Cell | |
| Parallel Capacity | yes, 8units maximum | yes, 15units maximum |
| Max Charging Current | 100A | |
| Max Discharging current | 100A | |
| Operating Voltage Range | 40-57.6V | |
| Design Life | 15+ Years(25ºC/77ºF) | |
| Cycle Life | >6000 Cycles, 25ºC | |
| Communication Port | CE/IEC62619/UN38.3/MSDS | |
| Size(L*W*H) | 600*510*173mm | 673*618*193mm |
| Weight | 51Kg±0.5Kg | 89Kg±0.5Kg |
| Working Temperature | -10-50ºC | |
| Shelf Temperature | -20-50ºC | |
| Humidity | 5%~95% | |
| Lithium Battery Standard | UL1642/CE/IEC62619/UN38.3/MSDS | |

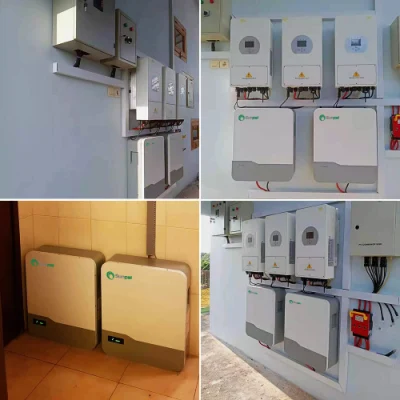

10KWH Home Energy Storage Lithium Battery System In Thailand
15KWH Powerwall Home Battery System In Germany
15KWH Lithium Ion Lifepo4 Battery System In Jamaica
As a world-class solar products manufacturer, Sunpal specializes in the research, development, production, and sales of solar PV products and solar panels.
Sunpal focused on research and manufacture of all-black solar panels since the year 1998, we have exported our various kinds of full-black solar panels to 86 countries and won a good reputation in quality. With over 10 years of development, Sunpal now has factory area covering 150,000 square meters, with 600 experienced employees.
