Basic Info.
Product Description

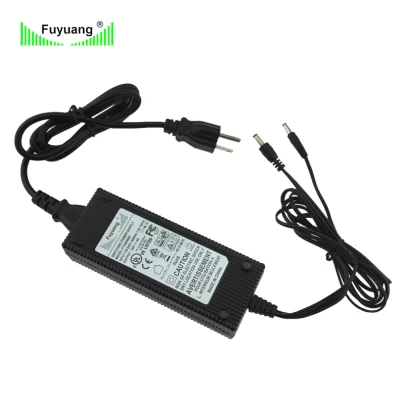

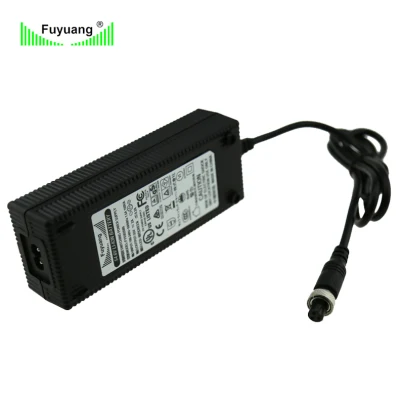

| Product name | 25.2V Automatic portable battery charger car for scooter |
| Type | FY2554000 |
| Output voltage | 29.2V |
| Output current | 4A |
| Output Power | 100.8W |
| Product Size | 154*60*36 mm |
| Product Weight | 0.45kg |
| Input voltage | 100-240V |
| Frequency | 50/60Hz |
| Pressure test | 3mA 3000VAC |
| Reliability | 25°C 30,000 hours |
| Certificate | CCC ,UL, cUL ,CE, GS, PSE ,SAA , RCM, KC, KCC, CB, TUV ,ROHS |
| Lead time | samples 5days, mass protection 15-20days |
Application
♦ Electric vehicle, Ebike, Electric Scooter, Mortor, Golf car, car jumper
♦ Solar Systems, Home Application,UPS
♦ LED Torch, headlight, Portable power bank,etc.
Electrical Specification
♦ Universal Input: 100 - 240V AC, 50/60Hz
♦ Input Plug: EU US UK AU South Korea South Africa Power cords
♦ Output Voltage Range of main products: 4.2~60V DC (Optional)
♦ Output Current Range of main products: 0.5-100A (Optional)
♦ Output: 29.2V 4A
♦ Charge mode: CC--CV ( Li-ion battery charger)
All Chargers for lithium ion battery pack
4.2V for 1S 3.6V lithium ion battey pack
8.4V for 2S 7.2V lithium ion battery pack
12.6V for 3S 10.8V lithium ion battery pack
16.8V for 4S 14.4V lithium ion battery pack
21V for 5S 18V lithium ion battery pack
25.2V for 6S 21.6V lithium ion battery pack
29.4V for 7S 25.2V lithium ion battery pack
37.8V for 9S 32.4V lithium ion battery pack
42V for 10S 36V lithium ion battery pack
54.6V for 13S 46.8V lithium ion battery pack
67.2V for 16S 57.6V lithium ion battery pack
84V for 20S 72V lithium ion battery pack
♦ Led display: Red--in charging; Green--fully Charge
♦ Cut-off Current: 10-15% of Charge current

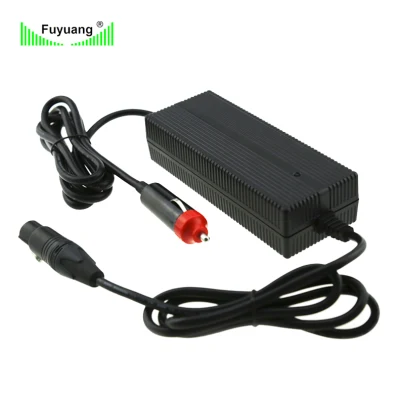

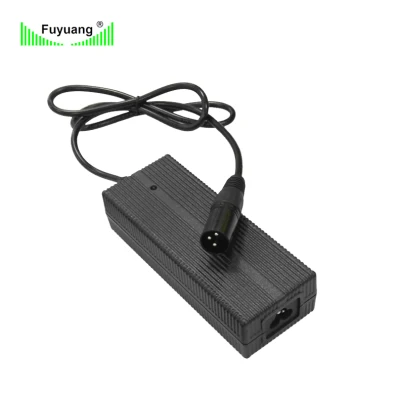

♦ Output Connector: 3pin Aviation Plugs, XLR socket, DC Jack, Alligator Clips, SAE connector, Anderson Plugs, RCA
♦ Ripple & Noise:1% of Output Voltage
Mechanical Specification
♦ Size: 154*60*36mm
♦ Type: Desktop Type
Safety Certification
♦ CCC, C
♦ KC
♦ PSE
♦ SAA, C-Tick
♦ UL /cUL. FCC
♦ CE. CB. GS. BS1363, ROHS
♦ TUV
Energy Standard
♦ MEPS
♦ CEC-V
♦ ERP V
♦ Energy Star: Level 6
♦ Standby Power: <0.3W
Protection Function
♦ Over voltage protection
♦ Over current protection
♦ Over-load protection
♦ Short circuit protection
Environmental Protection
♦ RoHS , REACH , CPSIA or PAHs Compliant On Request
Operation And Storage Condition
♦ Operation Temperature: -20°C to 40°C
♦ Operation Humidity: 20% to 90% R.H
♦ Storage Temperature: -20°C to 75°C
♦ Storage Humidity: 1% to 90% R.H.
♦ MBFT: > 50,000Hours
