Basic Info.
Product Description
At ZHONG-HE, we have more than 20 years experiences in AC and DC charging portfolio - for safe, smart and sustainable mobility.

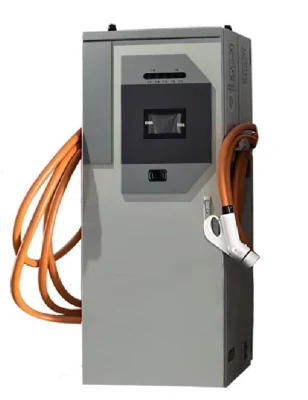

Our EV Charger is CCS, chademo, GBT integrated fast charging pile, with functions of charging protection, card charging, code scanning charging, mobile payment, network monitoring, remote upgrade and more, suitabl for electric cars, commercial electric vehicles, electric trucks, lorries, vans, buses, and off-highway vehicles.
Advantage:
- Optional CoolRing technology enables power to transfer between two EV chargers to realize a maximum power of 360kW at one side
- Serving multiple EVs at the same time
- Make the load balance within a charging station
- 7 inch Touch screen
- Easy for any electrician to install
- Electrical plugs customized
- APP operation or RFID authentication or plug and play
- LOGO / Electrical plugs / Optional advertisement screens / Language customized
- OEM
| MODEL: | ZHEV-DC120-Y | ZHEV-DC160-Y |
| AC Input | ||
| Input Voltage | 285VAC - 475VAC | |
| Input Voltage | Three phases | |
| AC Input Connection | 3P+N+PE | |
| Max. Input Current | 228A | 304A |
| Frequency | 50Hz~60Hz | |
| Power factor | ≥0.99 | |
| DC Input | ||
| Output Power Range | 120KW | 160KW |
| Output Voltage Range | 200V-750V | |
| Output Current | 0-402A | 0-536A |
| Voltage Accuracy | ≤±0.5% | |
| Current Accuracy | ≥30A±1%; | |
| Efficiency | ≥93% | |
| User Interface & Control | ||
| Display | 7 inch touch screen | |
| Support Language | English | |
| Push Buttons | Emergency Stop | |
| User Authentication | RFID System ISO/ICE 14443A/B | |
| Display Information | Charging process and status / Alarm and warning message | |
| Communication | ||
| External | Ethernet,3G/4G, WIFI | |
| Internal | CAN bus/ RS485 | |
| Environmental | ||
| Operating Temperature | -40~85ºC;25ºC(type); | |
| Humidity | 20~95RH%;25RH%(type) | |
| Altitude | ≤6000 feet(2000m) | |
| IP level | IP54 | |
| Cooling Method | Forced air | |
| Mechanical | ||
| Net Weight | 200kg | 300kg |
| Cable Length | 5meter | |
| Dimension(W*D*H) | 550*650*1850mm | 600*800*1900mm |
| Warranty | 2 years | |
Q: Are you the factory or trading company?
A: We are factory with more than 20 years in the field of DC power supply solution, traction power supply and new energies. We warmly welcome you for the visit.
Q: How is the delivery time?
A: Generally, the delivery time between 7-30 days after getting client's payment.
For accurate info depends on the products and the quantity, we can make further communication on this.
Q: Do you have MOQ requirements?
A: MOQ is 1 set for most of the products, only MOQ for 7KW, 11KW, 22KW ev charger is 10 sets.
A: How long is your warranty time?
Q: We provide 2 years warranty for our clients.
Q: Can you provide customized service?
A: Yes. we have been getting involved with the OEM and ODM projects since 2004.
So that we can provide professional customized service for our clients.
Q: Do you have after sales service?
A: Yes, we have the after-sales service team.
Our after-sales engineer Can give the support and instruction by video or phone call while needed.
Q: Do you make the test after finishing production?
A: Yes, our production engineer team will do the test while goods finished, and we will prvoide the test info to clients for reference before delivery.
