Basic Info.
Model NO.
6-GFM-150
Installation
Fixed
Rechargeable
Chargeable
Material
High Pure Lead
Certificate
CE/RoHS/ISO9001/ISO14001/IEC60896/IEC61427
Size
486X171X241mm
Weight
42.5kg
Maintenance
Free
Color
Grey / Black
Terminal
Copper or Lead Material
Warranty
3 Years
Expected Cycle Life
10 Years
Sealed
Yes
Transport Package
1PCS /Carton
Specification

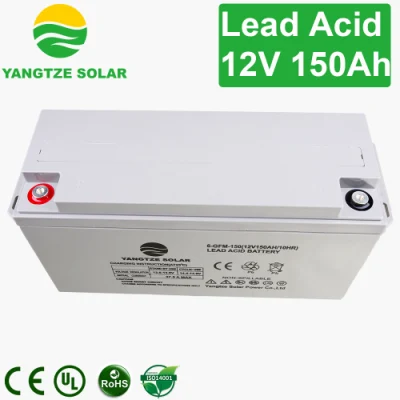

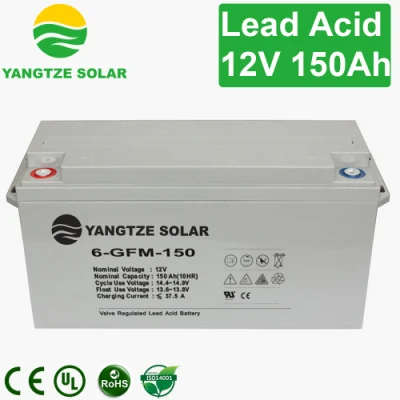

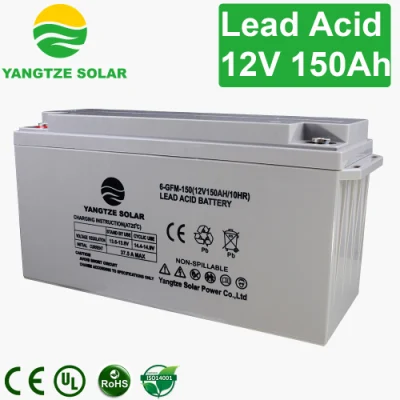

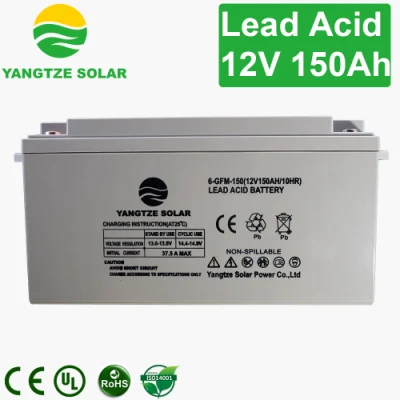

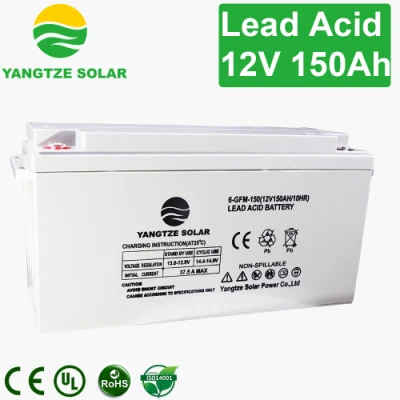

12V150AH AGM Battery
Trademark
Yangtze Solar
Origin
China
HS Code
8507200000
Production Capacity
2000pieces /Week
Product Description
***** 150ah maintenance free deep cycle battery charger *****
Key Features :
♦Maintenance-Free ,Absorbent Glass Mat Technology
♦Low Self Discharge
♦Long Designed service Life ,Deep Cycles
♦Excellent Discharge Performance
♦Environment Friendliness
♦Wide suitability of ambient temperature range
Applications :
♦Solar and wind energy storage system
♦EPS and UPS battery backup
♦Signal system , emergency lighting system , security system
♦Telecommunication Equipment
♦Power source for portable devices or tools
***** Factory Introduction *****
♦ Battery factory Founded in 1996 , 2 million batteries annual production capacity
♦ Products including valve regulated lead acid battery , Gel battery , deep cycle battery, OPzV
and OPzS battery
♦ Products are exported to more than 150 countries
♦ Products are certified by CE , Rohs
♦ Mature and very well respected AGM and GEL technologies for valve-regulated lead-acid batteries ranging from 2Ah to 3000Ah
Key Features :
♦Maintenance-Free ,Absorbent Glass Mat Technology
♦Low Self Discharge
♦Long Designed service Life ,Deep Cycles
♦Excellent Discharge Performance
♦Environment Friendliness
♦Wide suitability of ambient temperature range
Applications :
♦Solar and wind energy storage system
♦EPS and UPS battery backup
♦Signal system , emergency lighting system , security system
♦Telecommunication Equipment
♦Power source for portable devices or tools
| 1. Functional Parameter | 5. Environment Temperature | ||
| Nominal Voltage | 12V | Discharge Temperature | -20~60ºC |
| Nominal Capacity (10 hour rate) | 150Ah | Charge Temperature | 0~50ºC |
| Number of Cells | 6cells | Storage Temperature | -20~60ºC |
| 2. Rated Capacity at 25ºC (77° F) | 6. Inner Resistance & Max . Discharge Current | ||
| 10 hour rate (0.1C, 10.8V) | 150Ah | Fully Charged battery at 25ºC (77° F) | 3.5mΩ |
| 3 hour rate (0.25C, 10.8V) | 115Ah | Max. Discharge Current | 2250A (5s) |
| 1 hour rate (0.55C, 10.5V) | 82.8Ah | Short Circuit Current | 7500A |
| 3. Capacity affected by Temperature (10 hour rate) | 7. Self-discharge at 25ºC (77° F) | ||
| 40ºC (104° F) | 103% | Capacity after 3 month storage | 91% |
| 25ºC (77° F) | 100% | Capacity after 6 month storage | 82% |
| 0ºC (32° F) | 85% | Capacity after 9 month storage | 73% |
| -15ºC (5° F) | 65% | Capacity after 12 month storage | 64% |
| 4. Dimension and Weight | 8. Constant voltage charging at 25ºC (77° F) | ||
| Length | 486mm | Cyclic use | 14.4~14.9V |
| Width | 171mm | Maximum charging current | 37.5A |
| Height | 241mm | Temperature compensation | -30mV/ºC |
| Total Height | 241mm | Float use | 13.6~13.8V |
| Reference Weight | 43kg | Temperature compensation | -20mV/ºC |
***** Factory Introduction *****
♦ Battery factory Founded in 1996 , 2 million batteries annual production capacity
♦ Products including valve regulated lead acid battery , Gel battery , deep cycle battery, OPzV
and OPzS battery
♦ Products are exported to more than 150 countries
♦ Products are certified by CE , Rohs
♦ Mature and very well respected AGM and GEL technologies for valve-regulated lead-acid batteries ranging from 2Ah to 3000Ah
