Basic Info.
Model NO.
BGF-48230AHP
Size
Medium
Application
Boat Golf Cart, Electric Vehicles etc.
Voltage
48V
Capacity
100ah
Case Material
Stainless Steel
Water Proof
Yes
Pack Composing Way
16s1p
Transport Package
by Carton
Specification
Can be customized
Trademark
Benergy
Origin
China
Production Capacity
50000/Month
Packaging & Delivery
Package Size
50.00cm * 45.00cm * 30.00cm
Package Gross Weight
50.000kg
Product Description
Golf Cars, Utility vehicles, LSVs and AGVs application 51.2V 48V 100AH 200AH 230Ah Lithium Iron Battery Pack
48V 230AH Lithium Battery Pack Parameter Table:

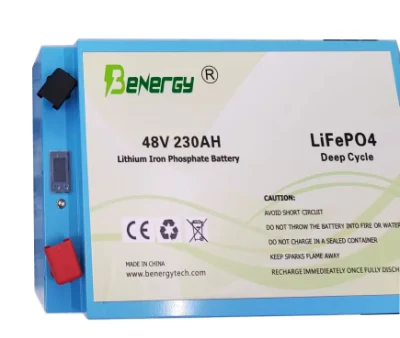

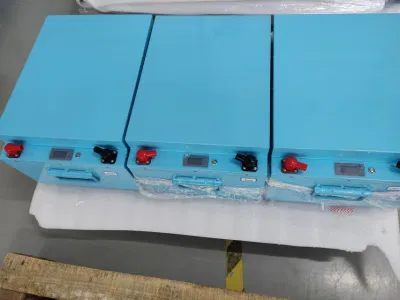

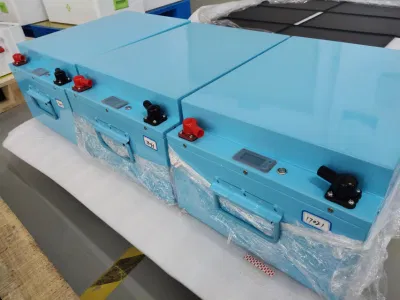

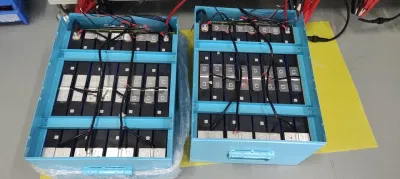

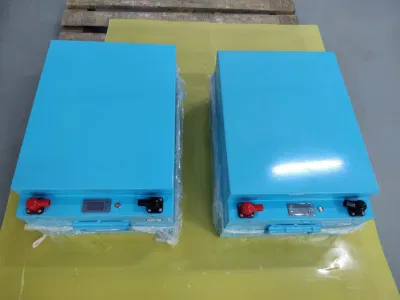

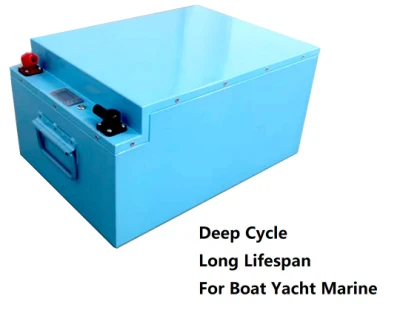

48V 230AH Lifepo4 Battery Pack P roduct Picture:
Lifepo4 Batrtery Stainless steel case, anti-corrosion and anti-rust, case color can be customerized (Blue, Black, white or gray).
Product Advantages
1. Long cycle life. More than 2500 times (charge and discharge at 1C, 80% capacity retention after 2500 cycles);
2. Compact in size and light in weight. 1/3 smaller in size, 2/3 lighter in weight than lead acid battery.
3. High safety: No fire and explosion in overcharge test; No explosion, no fire under collision, over charged or short circuit.
4. Good charging and discharging performance. 3C continous discharge and 10C burst.
5. Full green and . All raw material of the batteries are environmental-friendly,
6. Wide working temperature range: From -20ºC to 60ºC, extremely cold and hot weather will not affect its performance.
7. Bar Code management system. All data is managed by system, we can trace the cell information and match every pack with closest data.
8. Produced with automatic equipments.
Certificate
48V 230Ah lifepo4 battery Applications
48V 230AH lifepo4 battery packs can be widely used for electric golf cart, electric boat, forklift, electric vehicles etc.
Packages
Certifications:
48V 230AH Lithium Battery Pack Parameter Table:
| Product Type | Lithium Iron Phosphate Battery |
| Brand Name | Benergy |
| Voltage | 48V |
| Nominal Capacity | 230AH |
| Minium Capacity | 230AH |
| Pack way | 16S1P |
| Size | 510*380*230mm (W,L,H) |
| Weight | 80KG±0.5Kg |
| Charge Mode | CC/CV (Continuous current/Continuous Voltage) |
| Max Charge Current | 50A (Adjustable) |
| Charge Cut Off Voltage | 58.4V±0.05 |
| Standard Discharge Current | 200A(Adjustable) |
| Peak Discharge Current @3 sec | 250A(Adjustable) |
| Discharge Cut Off Voltage | 40V |
| Cycle Life | >2500 Times (0.5C charge/discharge, 100% DOD) |
| Discharge Temperature | -10~55ºC |
| Charge Temperature | 0~45ºC |
| Application | Electric scooter, electric motorcycle, e-bike, lawn mower.. |
| Warranty | 2 Years |
| Indicator | Can match |
| IP range | IP65 |
| OEM/ODM | Yes(Accepted) |
48V 230AH Lifepo4 Battery Pack P roduct Picture:
Lifepo4 Batrtery Stainless steel case, anti-corrosion and anti-rust, case color can be customerized (Blue, Black, white or gray).
Product Advantages
1. Long cycle life. More than 2500 times (charge and discharge at 1C, 80% capacity retention after 2500 cycles);
2. Compact in size and light in weight. 1/3 smaller in size, 2/3 lighter in weight than lead acid battery.
3. High safety: No fire and explosion in overcharge test; No explosion, no fire under collision, over charged or short circuit.
4. Good charging and discharging performance. 3C continous discharge and 10C burst.
5. Full green and . All raw material of the batteries are environmental-friendly,
6. Wide working temperature range: From -20ºC to 60ºC, extremely cold and hot weather will not affect its performance.
7. Bar Code management system. All data is managed by system, we can trace the cell information and match every pack with closest data.
8. Produced with automatic equipments.
Certificate
48V 230Ah lifepo4 battery Applications
48V 230AH lifepo4 battery packs can be widely used for electric golf cart, electric boat, forklift, electric vehicles etc.
Packages
Certifications:
Benergy batteries at different battery shows:
Good comments from our customers who used our batteries:
