Basic Info.
Model NO.
LWC6K6-220S380-W
Input Voltage
No
Operating Temp.
-40~80
Lprating
IP67
Weight
Less Than 8.5kg
Output Power
6.6kw
Transport Package
Carton Packaging
Specification
364x224x100mm
Trademark
LANDWORLD
Origin
China
Product Description
![Landworld 6.6kw Obc on-Board Charger Waterproof on-Board Power Supply](http://img6.grofrom.com/www.dechichargersupply.com/226f3j00vGTksVJyPAod/Landworld-6-6kw-Obc-on-Board-Charger-Waterproof-on-Board-Power-Supply.webp)

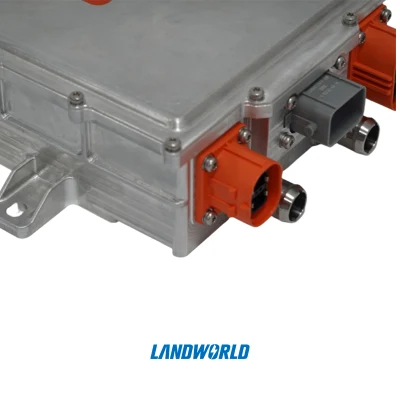

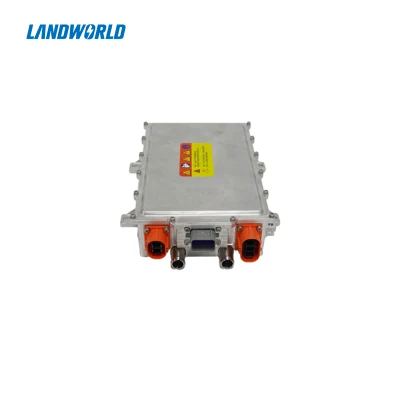

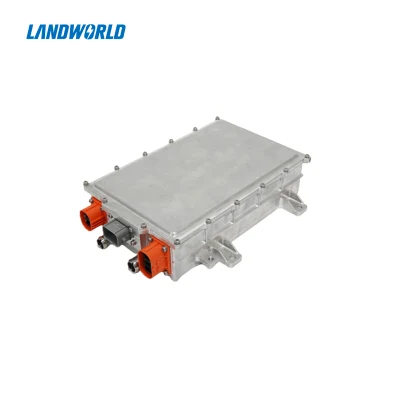

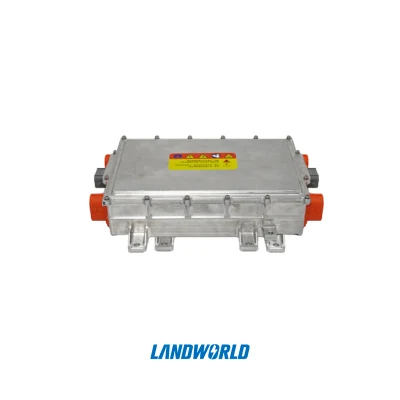

Landworld 6.6kw Obc on-Board Charger Waterproof on-Board Power Supply
LWC6K6-220S380-W
Product Features:
- Product dimension: 364x224x100mm
- Product weight: ≤8.5KG
- Cooling method: liquid cooled, flow≥6L/min
- IP rating: IP67
- Support on-line upgrade and fault diagnosis
- High power density, modular design, easy for modular integration
- Full digital SW design, redundant protection function design
- Multi 6.6KW OBC can be paralleled; (2*6.6Kw , 3*6.6KW, 4*6.6KW OBC)
Main Technical Parameters
Items | Technical Spec. | Remarks |
Operation temperature | -40-85ºC | Working for long time |
Nominal output power | 6.6kW | |
Input voltage | 85--265Vac | |
Nominal Vout | 200-450VDC | |
Nominal output Current | 20A | |
VCC power supply | 9-32Vdc | VCC |
Eff. | ≥94% | @Nominal voltage |
Voltage accuracy | ±1% | |
Current accuracy | ±3% | |
Low voltage Wake up | 12/24Vdc&200mAmax (WAKE_UP signal) | Wake up BMS/VCU |
Wake up method | CAN/AC/CC/CP | Support booking charging |
CAN communication | CAN-BUS | |
Static current | ≤2mA | Current consumption at sleep mode or standby status |
EMC standard | GB/T18387-2008, EN 55022 | EMC standard |
Protection features | Input OVP/UVP, output OVP/UVP,OTP, OCP, output short-circuit protection, CAN communication breakdown protection |
