Basic Info.
Model NO.
SWB48150
Size
Small
Voltage
48V
Product Name
48V 150ah Lithium Iron Phosphate Battery
Cycle Life
>6000 Times
Features
Wall-Mounted Lithium Ion Battery
Capacity
100ah/150ah/200ah
OEM Service
Support
Battery Type
LiFePO4/Lithium Battery
Application
Uninterruptible Power Supplies/Ess
Package
Carton Box
Transport Package
Carton or Wooden Box with Pallet
Specification
680*485*180(220)mm
Trademark
SW
Origin
China
Production Capacity
5000sets Per Month
Product Description

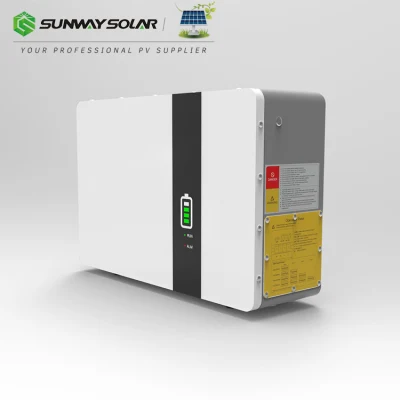

Features of Sunway Solar Wall-Mounted Lithium Ion Battery
1. Wall mounted good-looking appearance.
2. Long warranty period,5 years
3. Higher energy density, light and small volume for household.
4. Support Connected in parallel mode for expansion (15 sets in parallel maximum).
5. Compatible with Solar, ESS or UPS System.
6. Remote control and monitor from PC or cellphone terminals.
7. Plug and Play, easy to connect and operate.
| Nomal | |||
| Model | SWB48100 | SWB48150 | SWB48200 |
| Battery Type | LiFePO4 (LFP) | ||
| Nominal Voltage (V) | 48V/51.2V(Optional) | ||
| Nominal Capacity (WH) | 5120WH | 7680WH | 10240WH |
| Usable Capacity (WH) | 4096WH/80%DOD | 6144WH/80%DOD | 8192WH/80%DOD |
| Design Life | 10+ Years (25ºC/77ºF) | ||
| Physical | |||
| Dimension(mm) | 680*485*180(220) | ||
| Weight(kg) | 62 | 79 | 98 |
| Electrical | |||
| Cycle Life | >5000, 25ºC | ||
| Charge/Discharge Current (A) | 100A/150A(Optional) | ||
| BMS | |||
| Communication | CAN/RS-485/RS-232 | ||
| Warranty | |||
| Product Warranty | 5 Years | ||
| Performance Warranty | 10 Years | ||
To Pack Wall-Mounted Lithium Ion Battery well. Generally, as follow:
1) Inner box - Carton - Pallet- Container
2) Packaging also can be made by customers requirements
2) Packaging also can be made by customers requirements
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A. Samples order will take about 4-10 days, mass production time needs 2-5 weeks, it depends on order quantity.
Q3. Does the shipping way to our country include tax?
A. It depends on the country and the shipping way you choose. Most Asian countries, most European countries, the United States,
and Canada have tax-included shipping channels if needed.
and Canada have tax-included shipping channels if needed.
Q5. How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.
Thirdly, customer confirms the samples and places a deposit for formal order. Finally, we arrange the production and then delivery.
Thirdly, customer confirms the samples and places a deposit for formal order. Finally, we arrange the production and then delivery.
Q6. Is this product safe?
A. Passed the overcharge, over discharge, over temperature, short circuit, acupuncture and
other safety tests, no fire, no explosion at any circumstance.
other safety tests, no fire, no explosion at any circumstance.
Q7. Which certificates do you have for LifePo4 battery pack? How about warranty?
A. We have CE/ROHS/UN38.3/MSDS ...etc., 5 year warranty(from the date of successful delivery).
Q8. Is it OK to print my logo on the lithium ion battery?
A. Yes, OEM/ODM services is offered.
